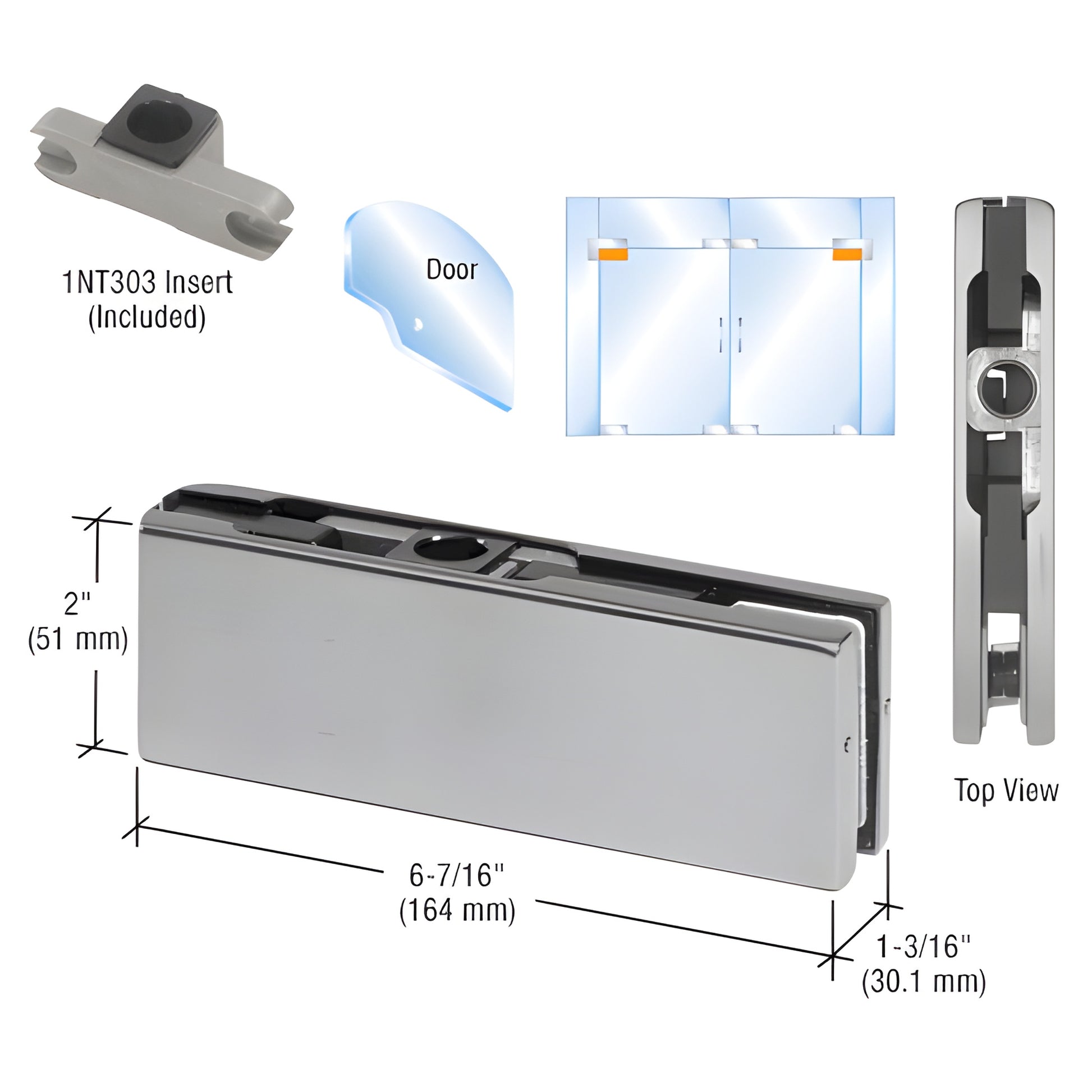

CRL Brushed Stainless Top Door Patch Fitting With 1NT303 Insert
CRL Brushed Stainless Top Door Patch Fitting With 1NT303 Insert
Regular price
$78.66 CAD
Regular price
Sale price
$78.66 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH20ABS
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Brushed Stainless Steel |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Height 2 in. | (51 mm) |
| Insert Type | 1NT303 |
| Length 6-7/16 in. | (164 mm) |
| Maximum Door Height 102 in. | (2591 mm) |
| Maximum Panel Weight 194 lbs. | (88 kg) |
| Maximum Width 42 in. | (1067 mm) |
| Pivot Setback | 2-3/4 |
| Type | Top |
| With | Insert Yes |
Overview
The CRL Top Gate Patch Fittings are designed for use with 3/8" or 1/2" glass, providing flexibility with or without locks.
These fittings are suitable for a 2-3/4" pivot setback and should be used with monolithic tempered glass.
Ideal for enhancing gate and door pivots, the fittings are available in a brushed stainless steel finish and include comprehensive instructions and a glass cut-out template.
Please note, these fittings are not recommended for use with laminated glass or specific transom patch fittings like PH42L, PH42R, PH43L, or PH43R.
For optimal performance and longevity, regular maintenance is advised, as stainless steel, while resistant to corrosion, is not entirely rust-proof.
Be sure to check product dimensions and weight details to ensure compatibility with your project requirements.
These fittings are suitable for a 2-3/4" pivot setback and should be used with monolithic tempered glass.
Ideal for enhancing gate and door pivots, the fittings are available in a brushed stainless steel finish and include comprehensive instructions and a glass cut-out template.
Please note, these fittings are not recommended for use with laminated glass or specific transom patch fittings like PH42L, PH42R, PH43L, or PH43R.
For optimal performance and longevity, regular maintenance is advised, as stainless steel, while resistant to corrosion, is not entirely rust-proof.
Be sure to check product dimensions and weight details to ensure compatibility with your project requirements.
Specifications
Templates
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
