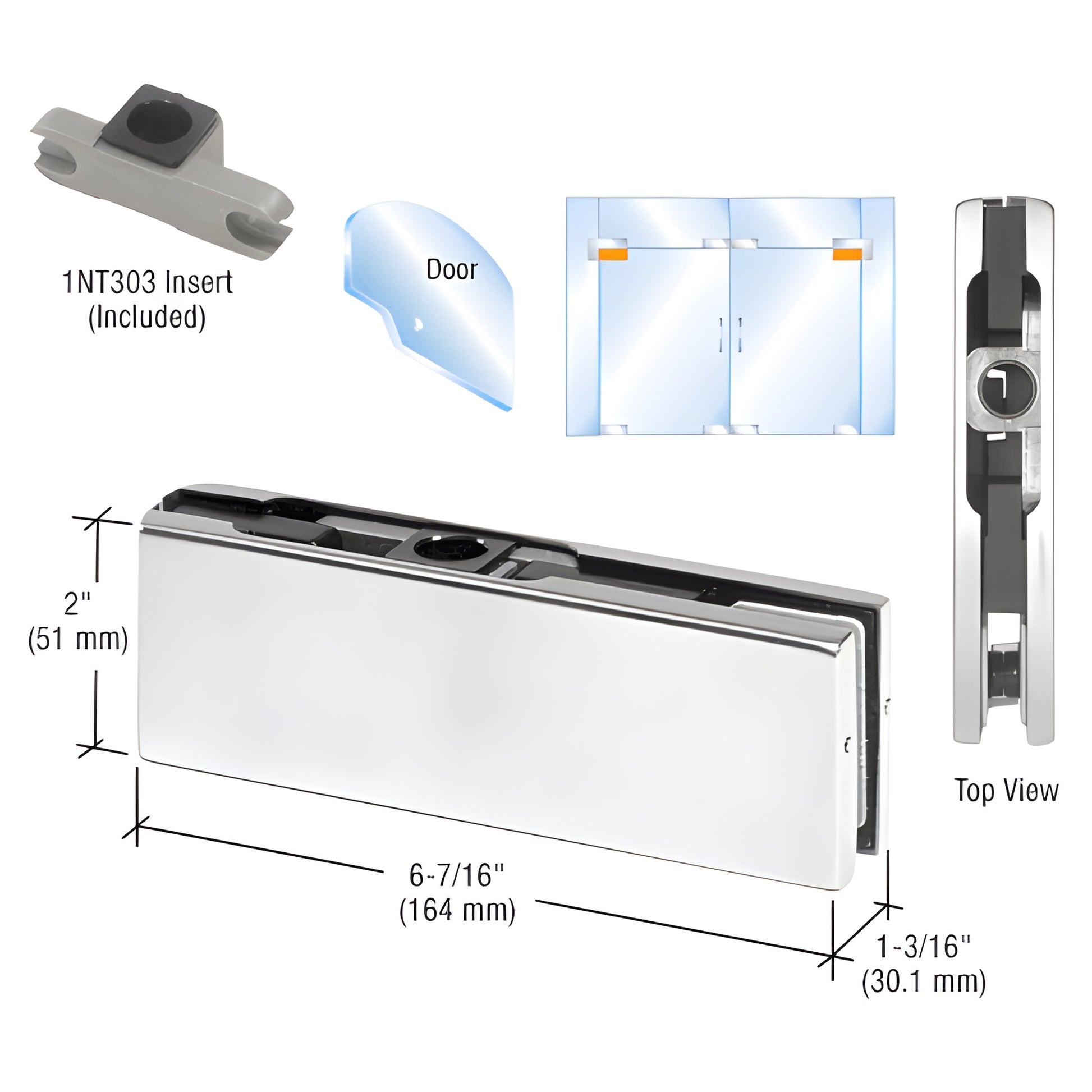

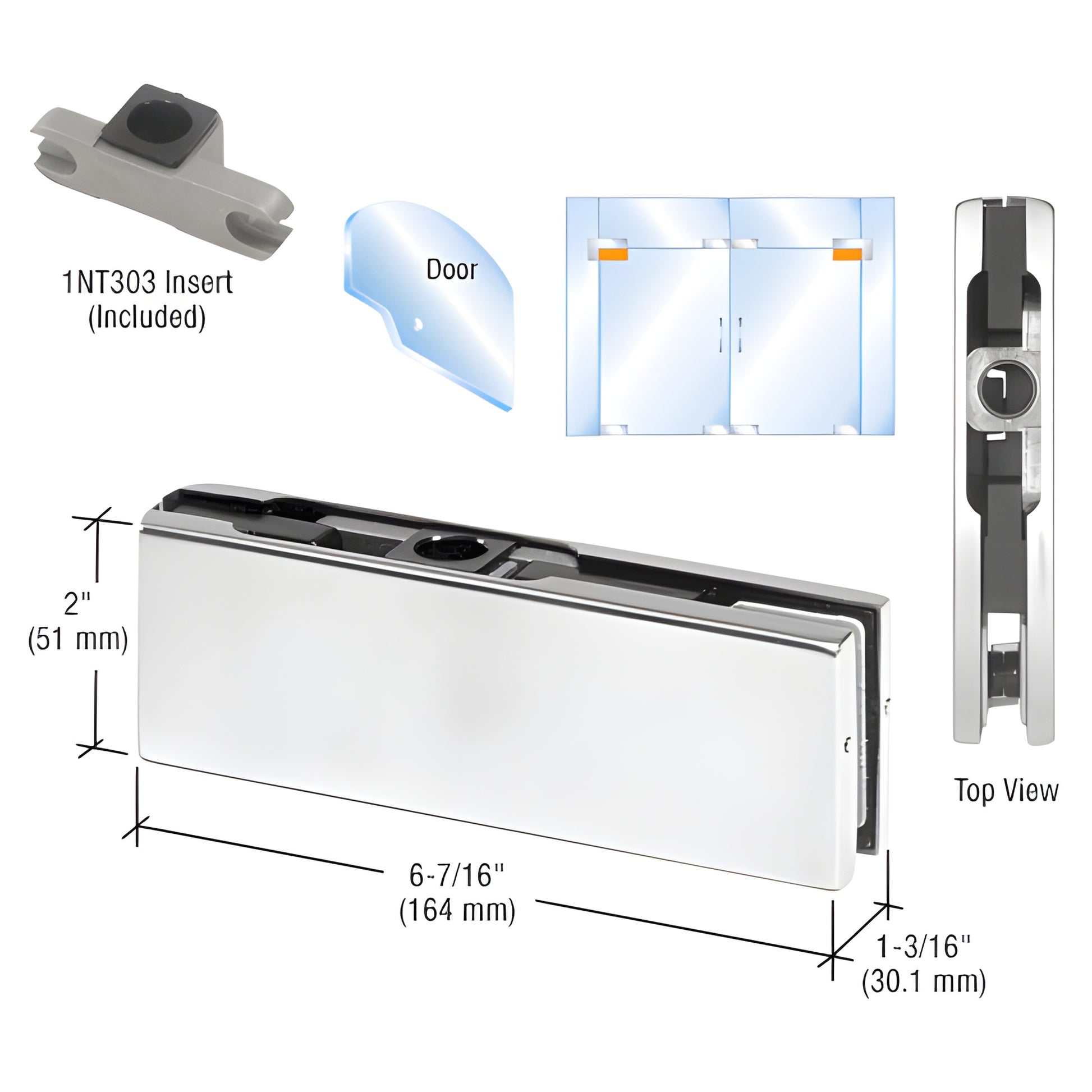

CRL Satin Anodized Top Door Patch Fitting With 1NT303 Insert
CRL Satin Anodized Top Door Patch Fitting With 1NT303 Insert
Regular price
$77.38 CAD
Regular price
Sale price
$77.38 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH20AA
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Satin Anodized |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Height 2 in. | (51 mm) |
| Insert Type | 1NT303 |
| Length 6-7/16 in. | (164 mm) |
| Maximum Door Height 102 in. | (2591 mm) |
| Maximum Panel Weight 194 lbs. | (88 kg) |
| Maximum Width 42 in. | (1067 mm) |
| Pivot Setback | 2-3/4 |
| Type | Top |
| With | Insert Yes |
Overview
The CRL Top Gate Patch Fittings are designed for 3/8" or 1/2" glass and are available with or without locks, featuring a 2-3/4" pivot setback.
Ideal for use with monolithic tempered glass, these fittings fit into the upper corner of a gate's glass panel and require specific glass fabrication, including a hole and corner notch.
The fittings are finished in brushed stainless steel and come with a template and instructions for easy installation.
Note: These fittings are not suitable for laminated glass and should not be used with PH42L, PH42R, PH43L, or PH43R transom patch fittings.
For optimal results, ensure the door does not exceed a height of 102" or a weight of 194 lbs.
If you need precise shipping weights for cost calculations, please contact CRL Customer Service before placing your order.
Ideal for use with monolithic tempered glass, these fittings fit into the upper corner of a gate's glass panel and require specific glass fabrication, including a hole and corner notch.
The fittings are finished in brushed stainless steel and come with a template and instructions for easy installation.
Note: These fittings are not suitable for laminated glass and should not be used with PH42L, PH42R, PH43L, or PH43R transom patch fittings.
For optimal results, ensure the door does not exceed a height of 102" or a weight of 194 lbs.
If you need precise shipping weights for cost calculations, please contact CRL Customer Service before placing your order.
Specifications
Templates
CAD Drawings - pdf
CAD Drawings - dwg
