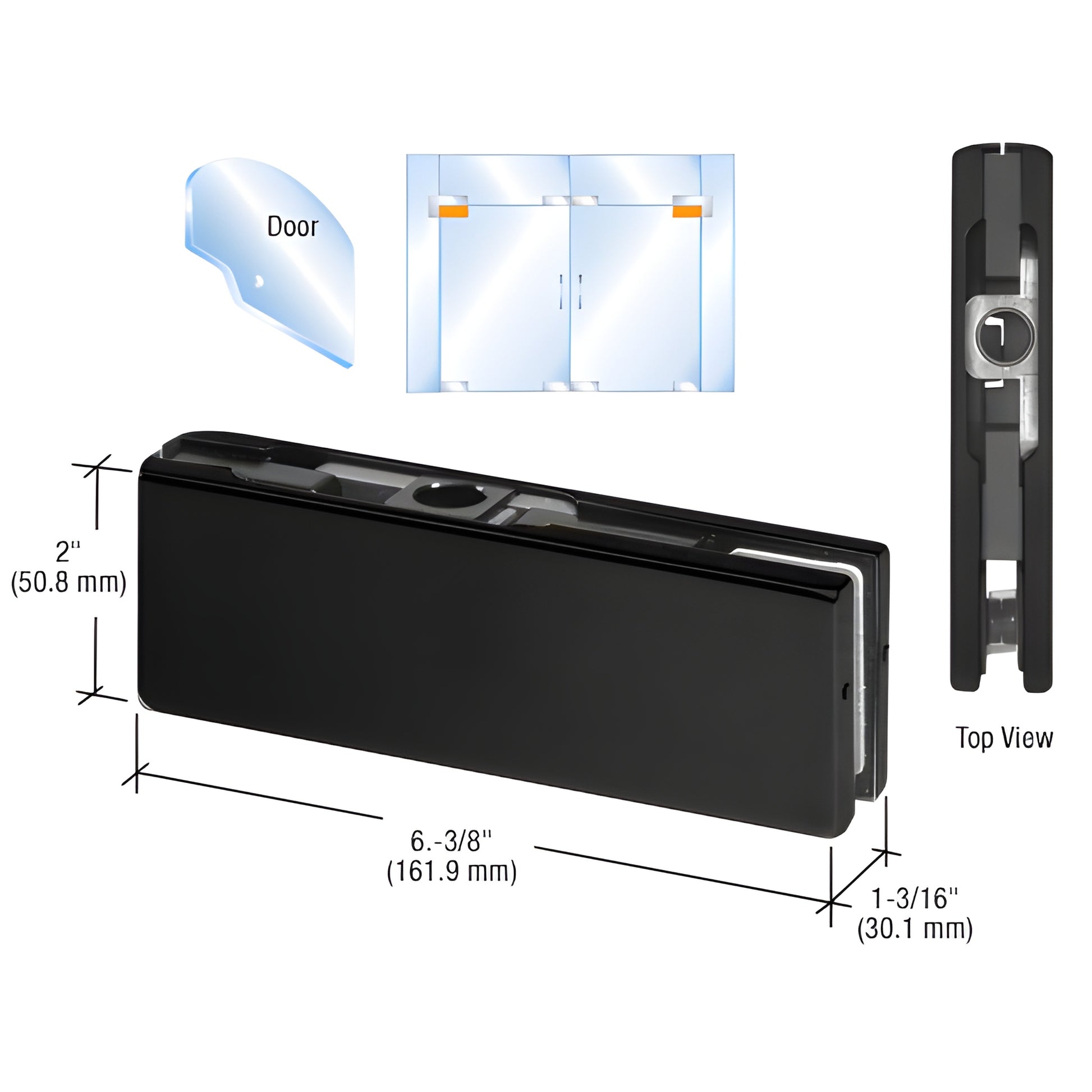

CRL Matte Black Top Door Patch Fitting with 1NT303 Insert
CRL Matte Black Top Door Patch Fitting with 1NT303 Insert
Regular price
$81.22 CAD
Regular price
Sale price
$81.22 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH20AMBL
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Matte Black |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Height 2 in. | (51 mm) |
| Insert Type | 1NT303 |
| Length 6-7/16 in. | (164 mm) |
| Maximum Door Height 102 in. | (2591 mm) |
| Maximum Panel Weight 194 lbs. | (88 kg) |
| Maximum Width 42 in. | (1067 mm) |
| Pivot Setback | 2-3/4 |
| Type | Top |
| With | Insert Yes |
Overview
The CRL Top Gate Patch Fittings are designed for use with 3/8" or 1/2" (10 or 12 mm) glass and are compatible with all of our gate and door pivots.
These fittings, available with or without locks, feature a 2-3/4" (70 mm) pivot setback and are crafted from monolithic tempered glass.
Suitable for installation in the upper corner of the gate's glass panel, they come in a brushed stainless steel finish and include complete installation instructions along with a glass cut-out template.
Please note, these fittings should not be used with PH42L, PH42R, PH43L, or PH43R Transom Patch Fittings, and are unsuitable for laminated glass.
For optimal results, refer to our guidelines regarding maximum door dimensions and required glass fabrication.
These fittings, available with or without locks, feature a 2-3/4" (70 mm) pivot setback and are crafted from monolithic tempered glass.
Suitable for installation in the upper corner of the gate's glass panel, they come in a brushed stainless steel finish and include complete installation instructions along with a glass cut-out template.
Please note, these fittings should not be used with PH42L, PH42R, PH43L, or PH43R Transom Patch Fittings, and are unsuitable for laminated glass.
For optimal results, refer to our guidelines regarding maximum door dimensions and required glass fabrication.
Specifications
Templates
CAD Drawings - pdf
CAD Drawings - dwg
