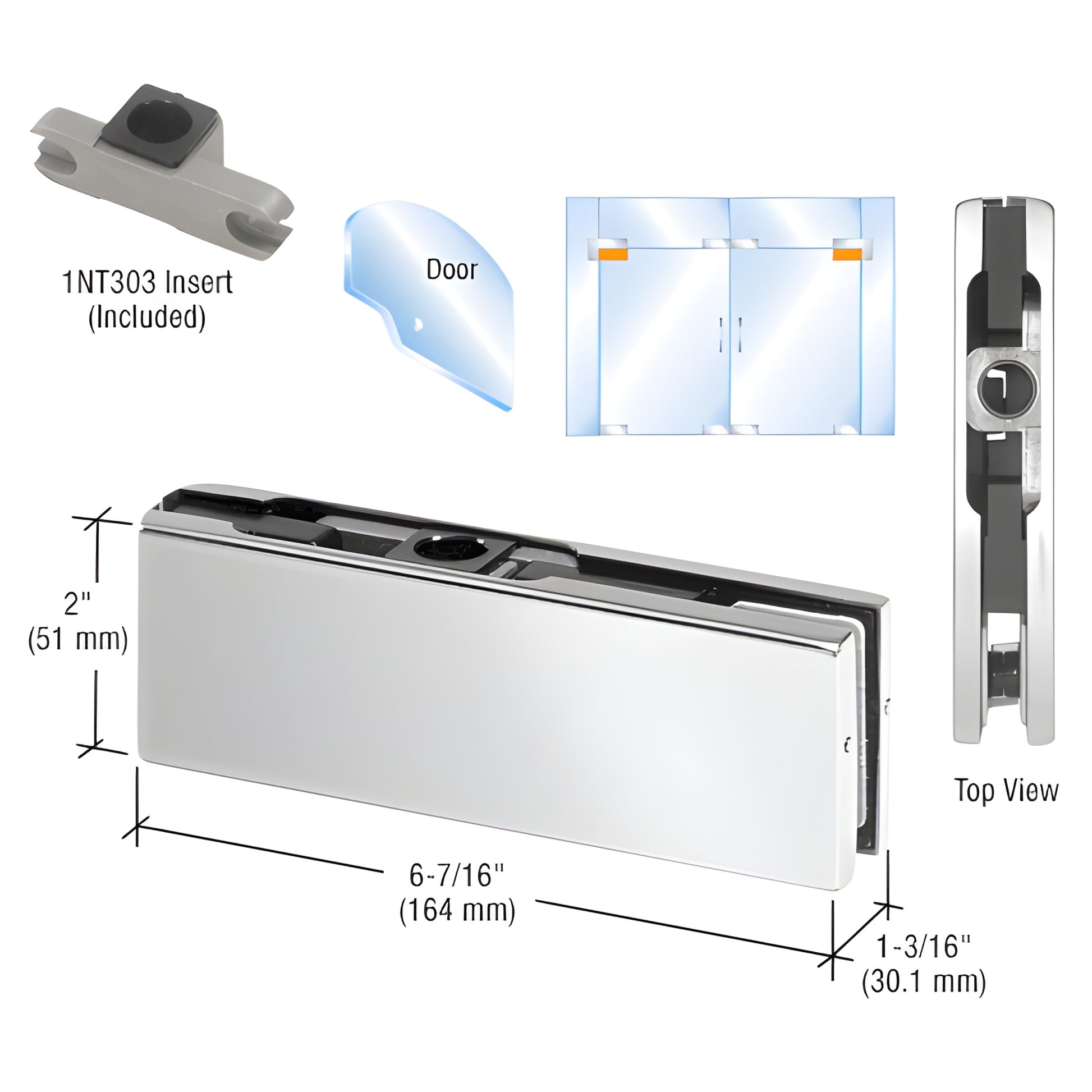

CRL Polished Stainless Top Door Patch Fitting with 1NT303 Insert
CRL Polished Stainless Top Door Patch Fitting with 1NT303 Insert
Regular price
$82.50 CAD
Regular price
Sale price
$82.50 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# PH20APS
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 0.16 Ounces
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Finish/Color | Polished Stainless Steel |
| Glazing Thickness | 3/8 in., 1/2 in. (10 mm, 12 mm) |
| Height 2 in. | (51 mm) |
| Insert Type | 1NT303 |
| Length 6-7/16 in. | (164 mm) |
| Maximum Door Height 102 in. | (2591 mm) |
| Maximum Panel Weight 194 lbs. | (88 kg) |
| Maximum Width 42 in. | (1067 mm) |
| Pivot Setback | 2-3/4 |
| Type | Top |
| With | Insert Yes |
Overview
The CRL Top Gate Patch Fittings are designed for use with 3/8" or 1/2" (10 or 12 mm) glass and are compatible with all CRL gate and door pivots.
Available in a sleek brushed stainless steel finish, these fittings are placed in the upper corner of the gate's glass panel and require precise glass fabrication, including a 3/4" (19 mm) diameter hole and corner notch.
Ideal for monolithic tempered glass, these fittings come with a detailed glass cut-out template and instructions to ensure proper installation.
Please note, they are not suitable for use with laminated glass or certain transom patch fittings like PH42L and PH42R.
For optimal results and to avoid exceeding size limitations, full door rails should be considered if the door dimensions surpass a maximum height of 102" (2.59 m), weight of 194 lbs.
(88 kg), or width of 42" (1.07 m).
Available in a sleek brushed stainless steel finish, these fittings are placed in the upper corner of the gate's glass panel and require precise glass fabrication, including a 3/4" (19 mm) diameter hole and corner notch.
Ideal for monolithic tempered glass, these fittings come with a detailed glass cut-out template and instructions to ensure proper installation.
Please note, they are not suitable for use with laminated glass or certain transom patch fittings like PH42L and PH42R.
For optimal results and to avoid exceeding size limitations, full door rails should be considered if the door dimensions surpass a maximum height of 102" (2.59 m), weight of 194 lbs.
(88 kg), or width of 42" (1.07 m).
Specifications
Templates
CAD Drawings - pdf
CAD Drawings - dwg
