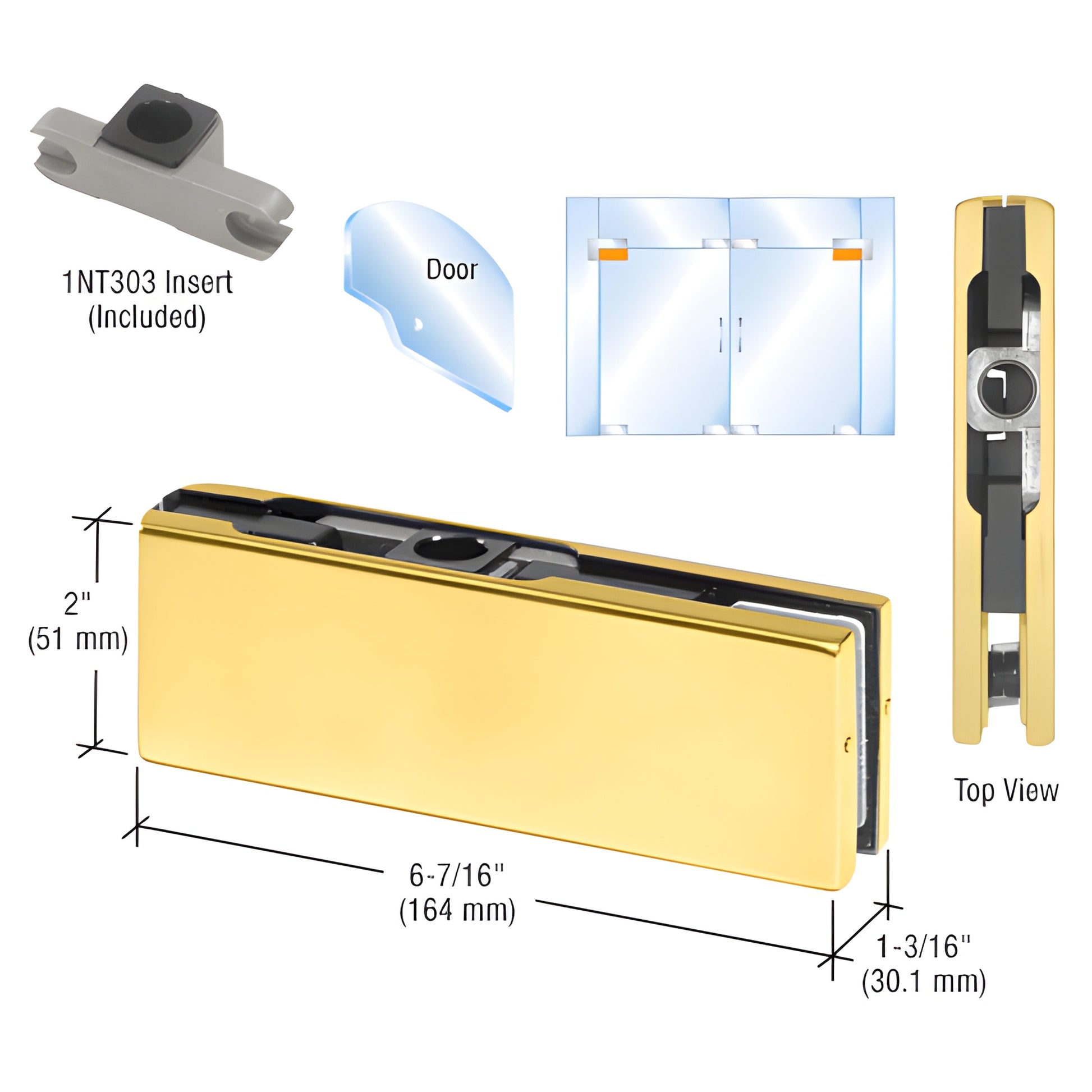

• PH20ASB satin brass top gate patch fitting for 3/8-1/2 glass, 6-7/16 2 , includes 1NT303 insert and template
1 1

CRL

CRL Satin Brass Top Patch Fitting for Glass Door 1NT303 Insert

CRL Satin Brass Top Patch Fitting for Glass Door 1NT303 Insert

$465.45 CAD
$465.45 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# PH20ASB
Shipping Weight: 1.15 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Satin Brass
Glazing Thickness
3/8 in., 1/2 in. (10 mm, 12 mm)
Height
2 in. (51 mm)
Insert Type
1NT303
Length
6-7/16 in. (164 mm)
Maximum Door Height
102 in. (2591 mm)
Maximum Panel Weight
194 lbs. (88 kg)
Maximum Width
42 in. (1067 mm)
Pivot Setback
2-3/4
Type
Top
With Insert
Yes

Overview

  • For 3/8" or 1/2" (10 or 12 mm) glass
  • With or without locks
  • 2-3/4" (70 mm) pivot setback
  • Use monolithic tempered glass

CRL Top Gate Patch Fittings (SKU: PH20ASB) are designed as a brushed stainless steel top gate patch for glass gates and frameless glass doors. These gate patch fittings mount in the upper corner of the glass panel and require a drilled hole and corner cut-out. Each fitting ships with a glass cut-out template and installation instructions for easy glass fabrication and fitting alignment.

The top gate patch works with all three of our gate and door pivots and is ideal for frameless glass gate installations where a discreet, durable top patch is needed.

Guidelines for door fabrication using PH20ASB:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 lbs. (88 kg)
Maximum Width: 42" (1.07 m)

If the door exceeds any of these limits, use full door rails.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) diameter hole and corner notch in monolithic tempered glass.

COMES WITH:
Template and instructions.

Do Not Use With:
PH42L, PH42R, PH43L or PH43R transom patch fittings. Those require European door patch fitting PH21A.

Product Warning:
Not for use with laminated glass.

Most shipping weights are approximate and have not been verified. If exact weight is needed to determine shipping costs before ordering, contact CRL Customer Service. Product images are actual product or close representations; colors may vary with monitor settings.

Brass Finish Advisory:
Brass finishes are durable but prone to oxidation, which can cause tarnishing over time. See the Brass Finish Disclaimer in the Technical References for care and maintenance.

Order PH20ASB top gate patch fittings for a streamlined brushed stainless steel solution for frameless glass gates — contact CRL or add to cart to get started.
