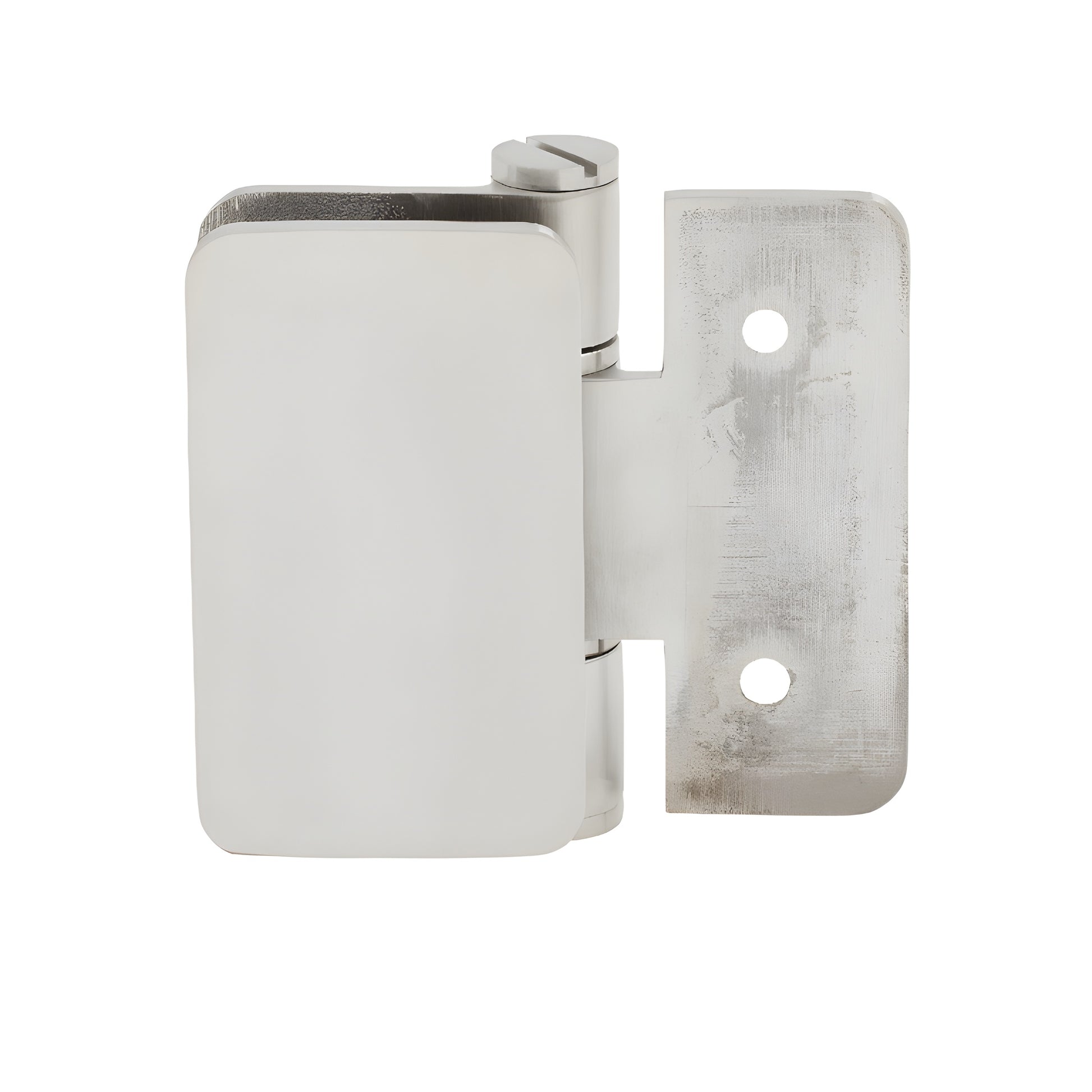

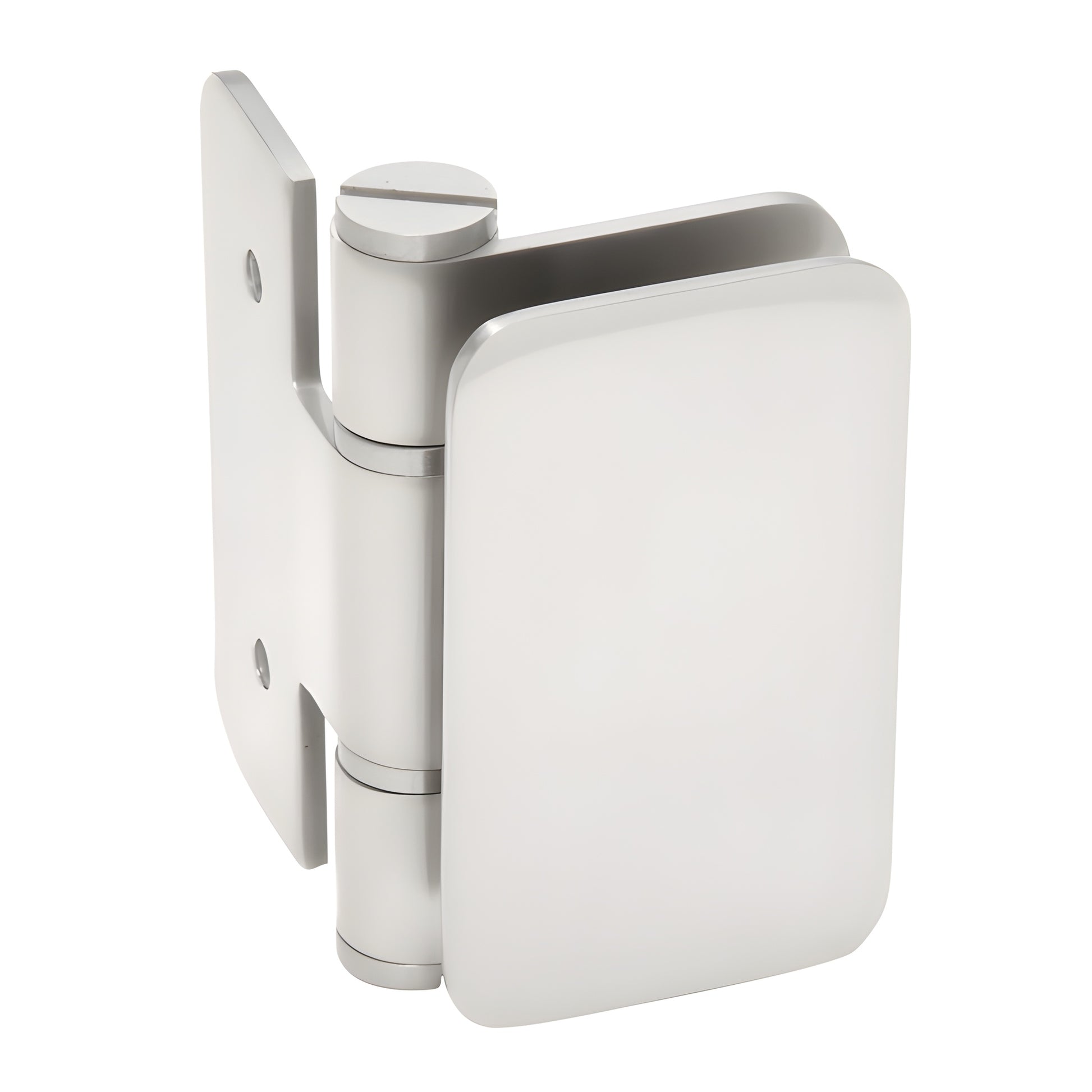

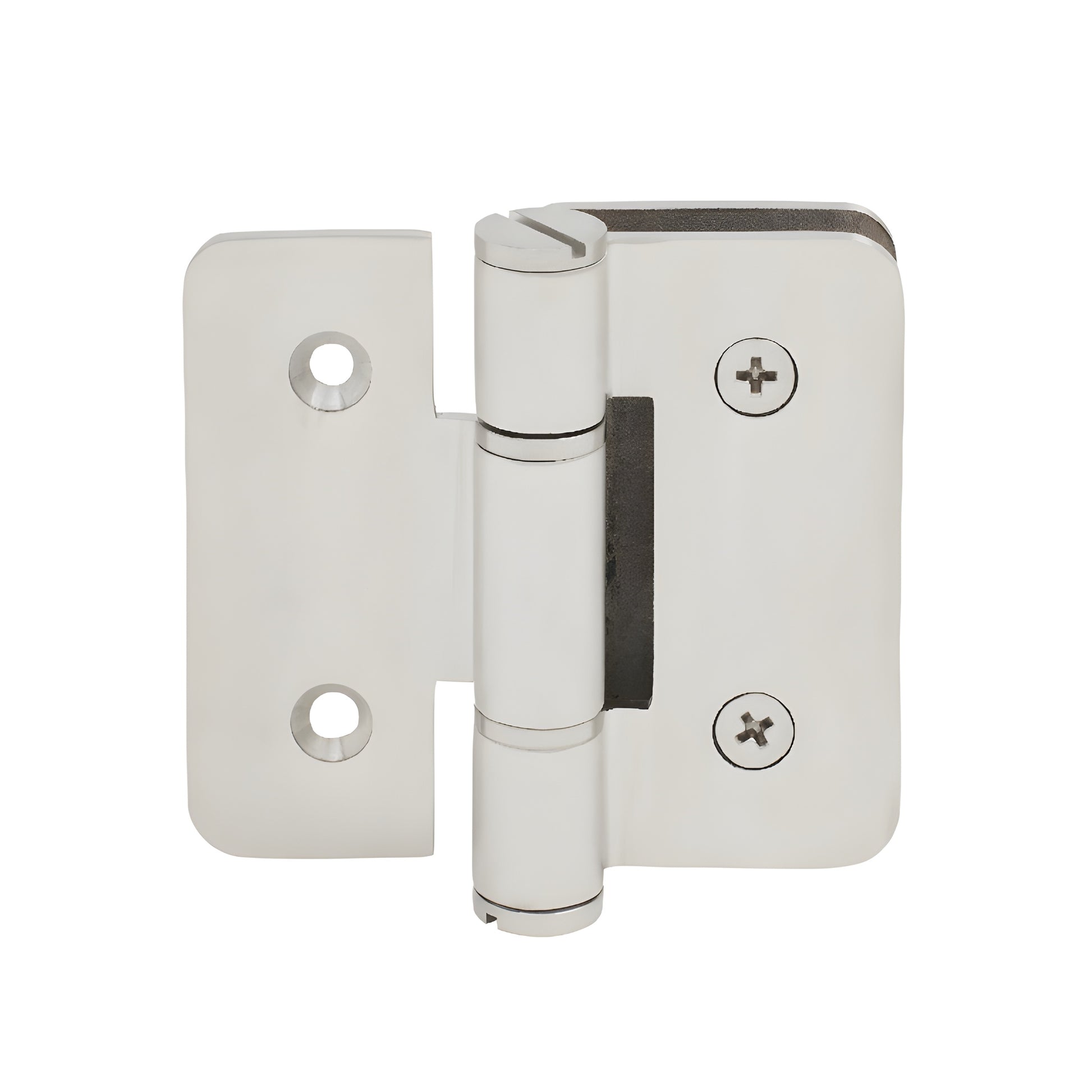

CRL Zurich 03 Brushed Stainless Wall-Mount Inswing Glass Door Hinge

• Wall Mount Inswing
• Ideal for Bi-Fold Application
• Available in Several Beautiful Finishes
• Use Monolithic Tempered Glass

CRL Zurich Series professional hinges for 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass. The Zurich Series was CRL’s first bi-fold hinge offering and includes seven models in stainless steel or solid brass construction, available in up to 13 finishes. No cut-out is required—only two holes per hinge per panel. SKU: ZUR03SS.

Replacement cover plate screws: Item No. P512, packaged in packs of 100 and available in multiple finishes.

Availability: Not available in Germany.

Load Capacity

• Using two hinges with 5/16"–3/8" glass: holds up to 100 lbs (45 kg); max door width 36" (914 mm).
• Using three hinges with 5/16"–3/8" glass: holds up to 150 lbs (68 kg); max door width 40" (1.02 m).

Specifications

• Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) tempered safety glass
• Special Features: Designed for bi-fold shower doors. Use ZUR01 and ZUR03 for doors that fold into tub area; use ZUR02 and ZUR05 for doors that fold out to bathroom area.
• Construction: Stainless steel or solid brass
• Hinge Swings: See descriptions next to product photos
• Closing Type: Free-swinging
• Installation: Two holes required per hinge per panel (no cut-out)
• Includes: Gaskets, screws, and glass fabrication dimensions

Custom finishes available on request. Contact the CRL Technical Sales Shower Door Department for custom finish options.

Product Warning:

CRL shower door hinges are designed for residential or hotel shower use only. For other uses, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may differ from other brands.
