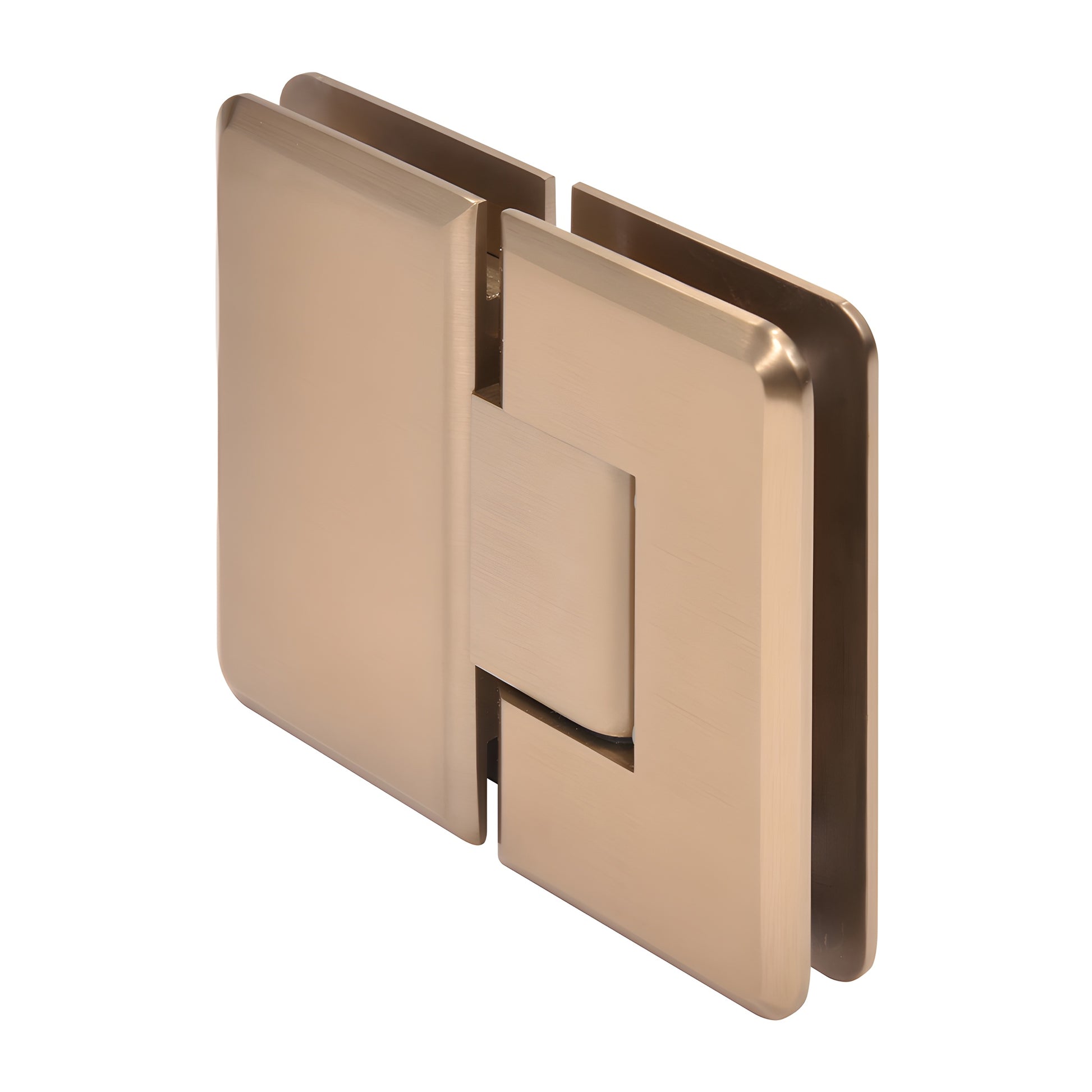

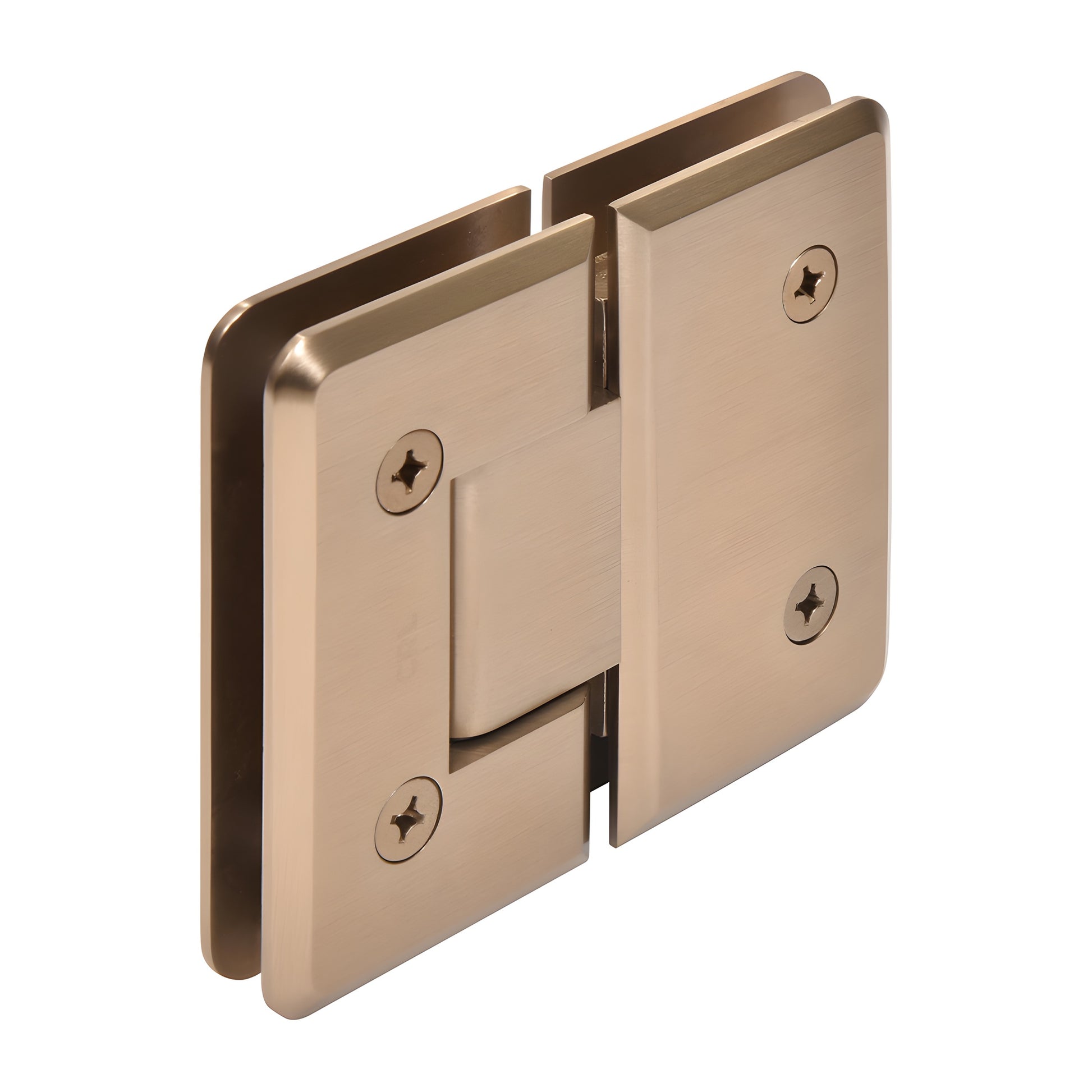

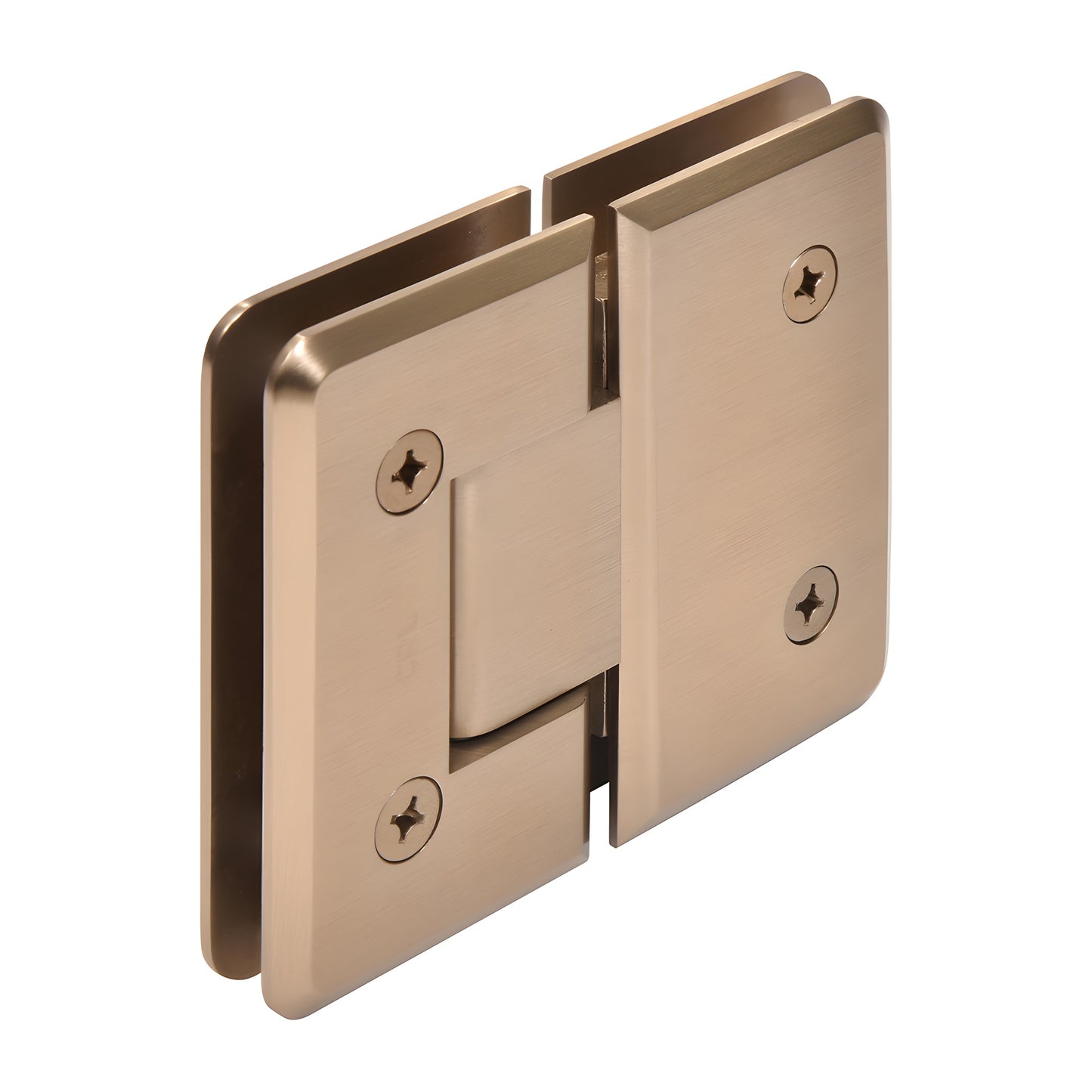

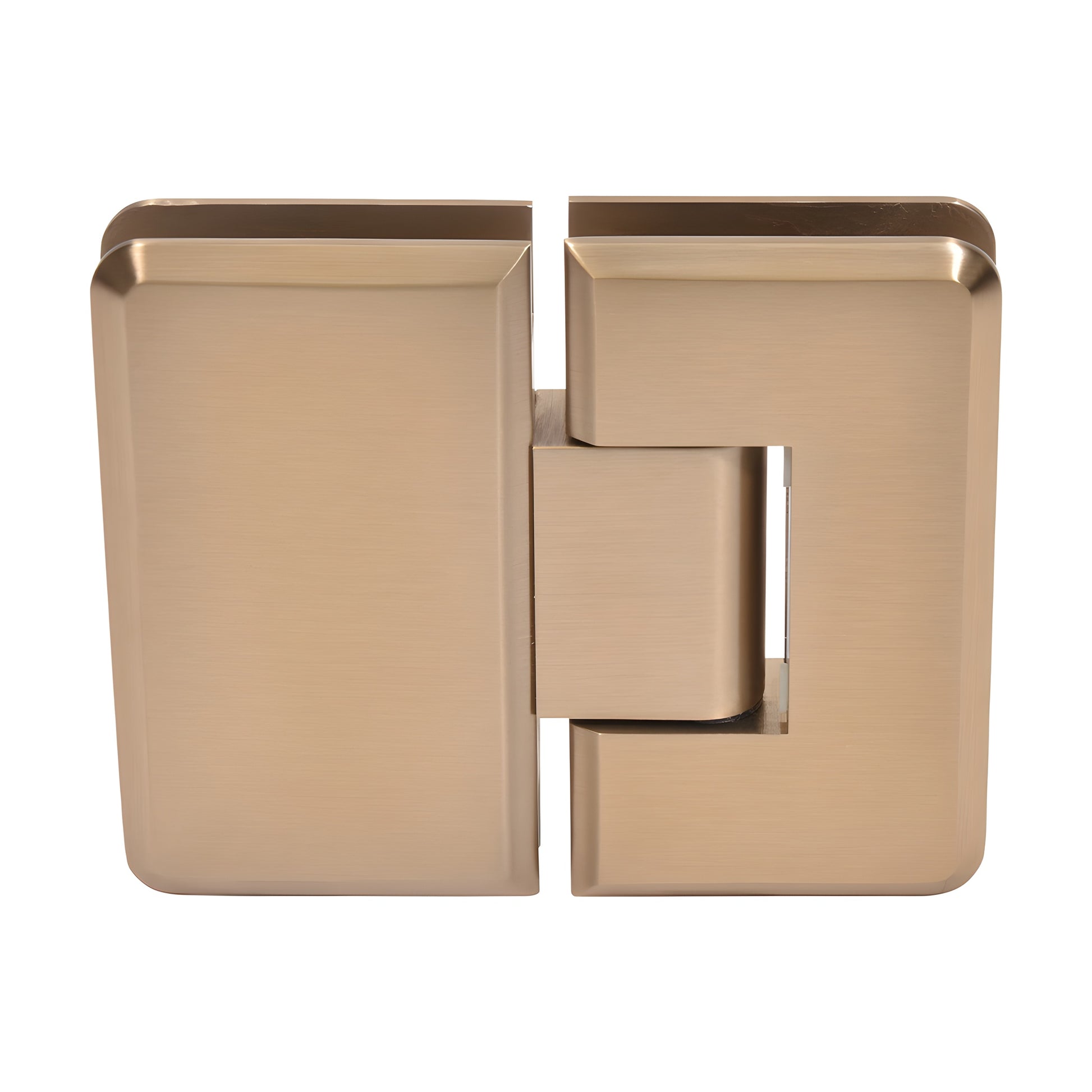

CRL Cologne 180° Dark Brushed Bronze Glass-to-Glass Shower Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) Glass
• Available in Several Beautiful Finishes
• 180º Glass-to-Glass Hinge — ideal for frameless shower doors
• Use Monolithic Tempered Glass

CRL Cologne Hinges (SKU C0L180DBBZ) provide a sleek, radius-corner design with beveled edges—similar to Vienna hinges but with improved aesthetics and strength. Built for wider, heavier frameless shower doors, Cologne Hinges use two internal steel pins to support different cut-out styles: leave pins in for CRL "mouse-ears" cut-outs for safety, or remove pins for increased adjustability and compatibility with CRL or some competitive rectangular cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each Cologne Hinge includes a reversible pivot pin marked 90º on one side and 85º on the other. Standard models ship with the 90º side active; Pre-Set models ship at 85º for a 5º tighter closure into the shower interior. Rotate the pin (do not flip) to switch sides.

CUSTOM PIVOT PIN: Custom Pivot Pins (up to 45º) are available for off-angle wall conditions where the standard 5º adjustment is insufficient.

Load Capacity: Using two hinges with 3/8"–1/2" glass (10–12 mm) supports up to 110 lbs. (50 kg) with a maximum door width of 36" (914 mm).

Three-hinge installations: Using three hinges with 3/8"–1/2" glass supports up to 140 lbs. (63 kg) with a maximum width of 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass (durable, corrosion-resistant shower door hinge)
Hinge Swings: 90º In and 90º Out (180º glass-to-glass operation)
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required: Cut-out required — except C0L092, which requires cut-out for door plus two holes for fixed panel
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)<
