CRL Geneva 3-Point Movable Window Transom Clamp Polished Chrome

• Ceiling-mounted design gives more exposed glass than traditional side-mounted transom hardware
• Three positive stopping points: 45° out, closed, and 45° in for versatile ventilation and access
• Stocked in five popular finishes to match door and hinge styles
• Designed for monolithic tempered glass

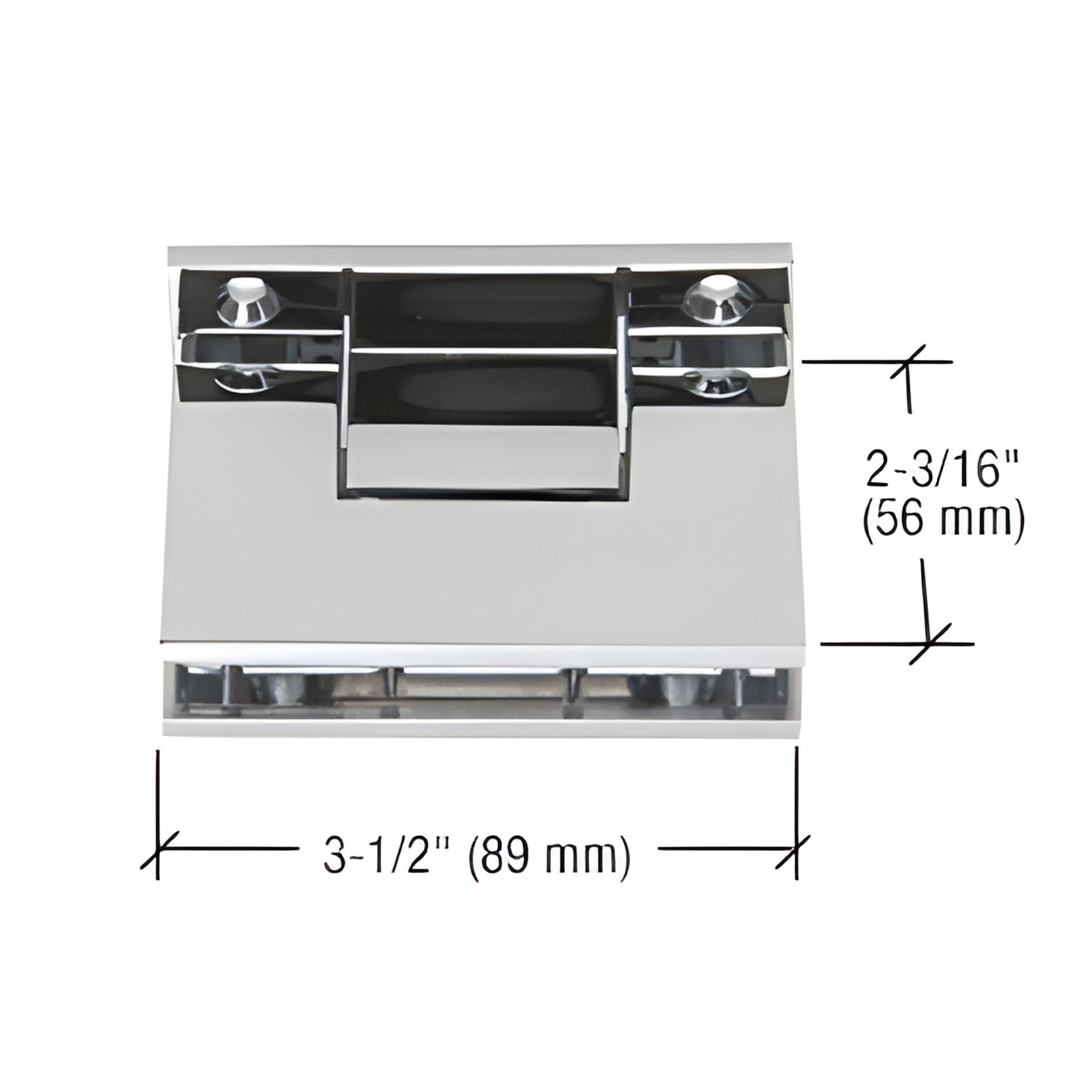

Our CRL 3-Point Movable Transom Clamps are ceiling-mounted transom clamps that provide a streamlined alternative to side-mounted "teeter-totter" hardware, allowing increased glass exposure and a clean aesthetic. The clamps lock at three positions (45° out, closed, 45° in) and are available in square or beveled profiles to match many of our hinge series. Ideal for tempered glass transoms where a ceiling-mounted, 3-point movable transom clamp is required. Accommodates 1/2", 3/8", and 5/16" (12, 10, and 8 mm) tempered glass.


SPECIFICATIONS:

• Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
• Material: Solid brass construction for durability
• Includes: gaskets, mounting screws (Phillips), Allen screws, and glass fabrication dimensions
• Gasket note: Gaskets included for 3/8" and 1/2" (10 and 12 mm) glass only. For 5/16" (8 mm) glass order Cat. No. GEN13 gaskets separately.

Cut-Out Required.

NOTE: Maximum transom size is 28" W x 12" H (711 x 305 mm). Two clamps are required per transom. Recommended centerline to cutout distance: 6" (152 mm) to the center of the cutout for each clamp.

SKU: GTC037CH

Order these ceiling-mounted, 3-point movable transom clamps for a cleaner, more exposed tempered glass transom—contact us or add to cart to buy now.
