CRL Oil-Rubbed Bronze 3-Point Adjustable Square Window Transom Clamp
CRL Oil-Rubbed Bronze 3-Point Adjustable Square Window Transom Clamp
Regular price
$99.66 CAD
Regular price
Sale price
$99.66 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GTC0370RB
Shipping Weight: 1.42 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.42 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Back Plate
Full
Edge Profile
Square
Finish/Color
Oil Rubbed Bronze
Glazing Thickness
3/8 in. (10 mm)

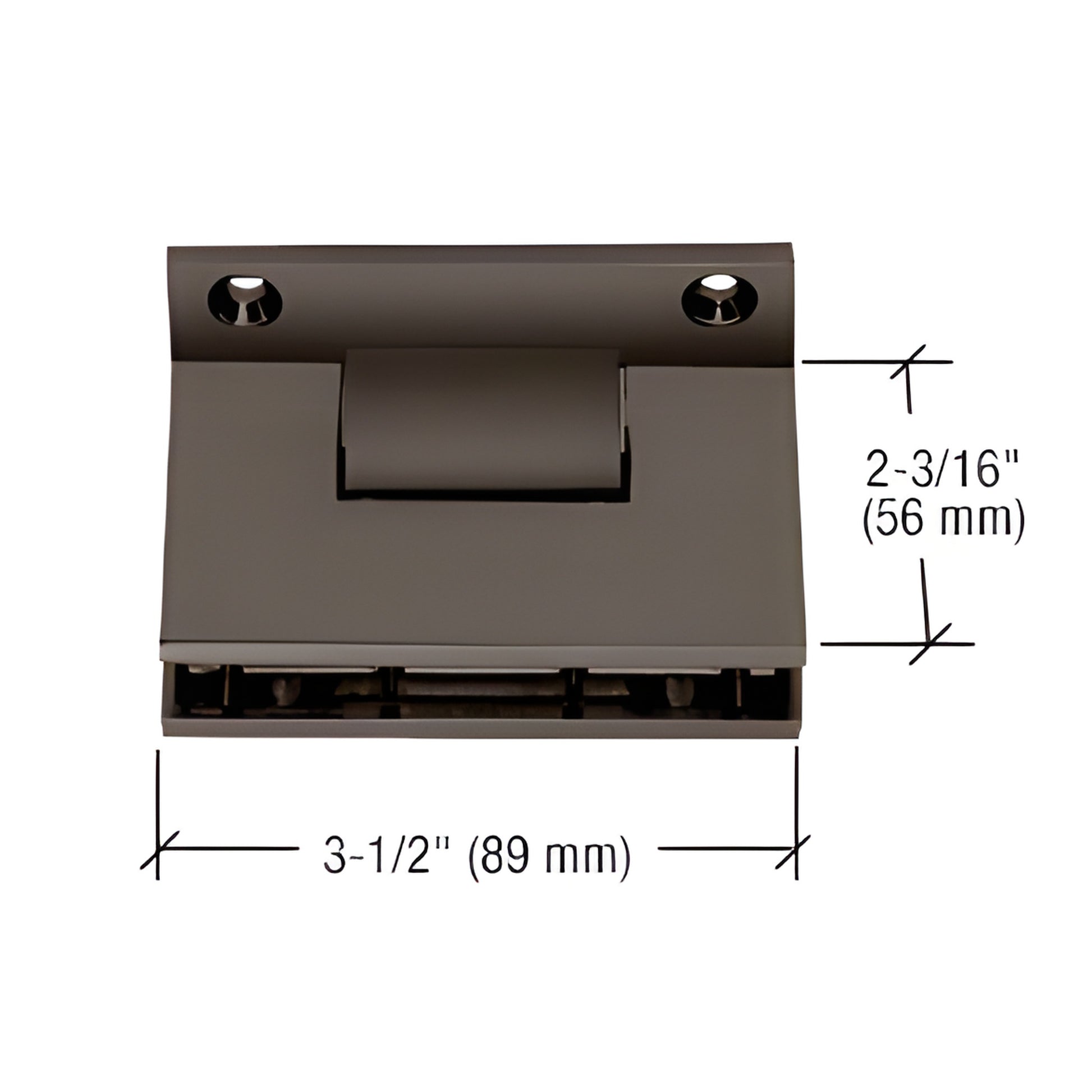

Height
2-3/16 in. (56 mm)
Material
Brass
Maximum Door Width - 2 Hinges
28
Mounting Type
Ceiling Mount
Series
Geneva
Width
3-1/2 in. (89 mm)
Overview
- Mounts to ceiling (not side-mounted) for increased glass exposure
- Three stopping points: 45° out, closed, and 45° in for adjustable transom ventilation
- Stocked in five popular finishes
- Uses monolithic tempered glass
Our CRL 3-Point Movable Transom Clamps (SKU: GTC0370RB) offer a ceiling-mounted alternative to traditional side-mounted "teeter-totter" transom hardware, maximizing visible glass and clean sightlines. The clamps hold at 45 degrees inward, closed, and 45 degrees outward. Square or beveled styling coordinates with many popular hinge series. Accommodates 5/16", 3/8", and 1/2" (8, 10, and 12 mm) tempered glass.
SPECIFICATIONS:
- Glass Thickness: 5/16" to 1/2" (8 to 12 mm)
- Material: Solid brass
- Includes: gaskets, mounting screws (Phillips), Allen screws, and glass fabrication dimensions
- Gaskets included for 3/8" and 1/2" (10 and 12 mm) glass only. For 5/16" (8 mm) glass, order Cat. No. GEN13 gaskets.
Cut-Out Required
NOTE: Maximum transom size: 28" W x 12" H (711 x 305 mm). Two clamps required per transom. Recommended center of cutout: 6" (152 mm) from clamp center.
For durable, ceiling-mounted transom hardware with three-position control and solid brass construction, choose CRL 3-Point Movable Transom Clamps (GTC0370RB). Order now or contact us for availability and finish options.
