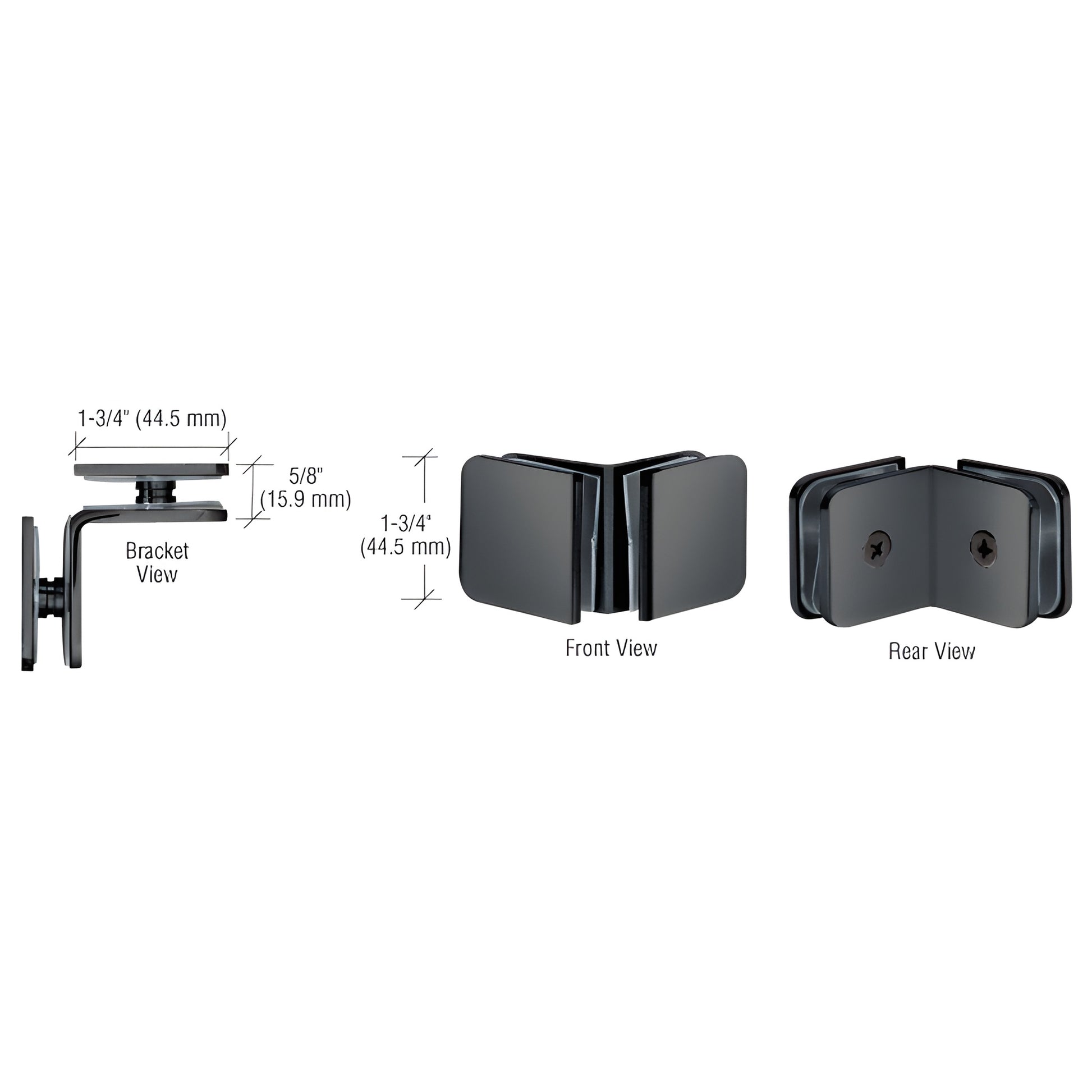

CRL Gun Metal 90° Glass-to-Glass Clamp for Frameless Shower

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Secures fixed panels for frameless shower enclosures
• Solid brass construction (also available in stainless steel)
• Provides an all-glass look as an alternative to traditional U-channel
• Glass fabrication required to accommodate clamps; use monolithic tempered glass

A versatile CRL Standard 90 Degree Glass Clamp (SKU: GCB90GM) designed for frameless shower glass installations. Use as a 90° clamp for vertical fixed panels or as a bracket for horizontal glass shelves. The clamp profile allows flush mounting of shelves to walls or minimal-gap adjoining panels for a clean, contemporary appearance.

Our solid brass traditional glass clamps help maintain a true frameless appearance and are offered in finishes that coordinate with CRL shower door hinges. Each clamp includes clear gaskets and appropriate mounting screws for wall-mount applications. Extra clear gaskets (Cat. No. UCG77) are available separately.

SPECIFICATIONS:
Materials: Solid Brass or Stainless Steel
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm) per panel
Includes: Gaskets and wood screw for wall-mount application
Replacement Hardware: CRL P612 replacement screws
Note: An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).

Choose the GCB90GM 90° glass clamp for a sleek, frameless shower look—order now or contact us for finish availability and lead times.
