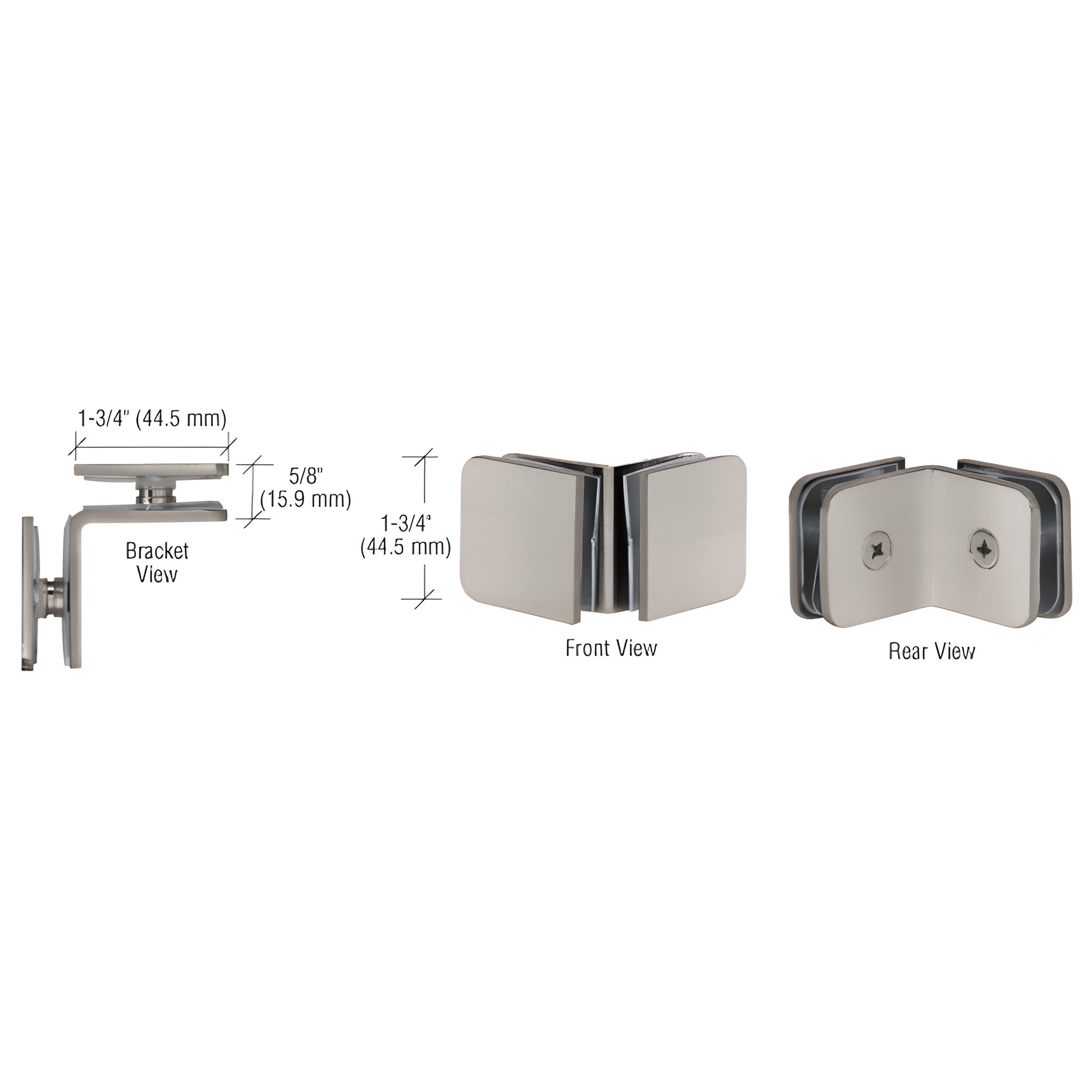

CRL Brushed Nickel 90 Degree Glass-to-Glass Shower Clamp
CRL Brushed Nickel 90 Degree Glass-to-Glass Shower Clamp
Regular price
$43.33 CAD
Regular price
Sale price
$43.33 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# GCB90BN
Shipping Weight: 9.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.28 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Nickel
Glass To Glass Angle
90
Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Material
Brass
Mounting Type
Glass To Glass
Series
Traditional
Overview
- For 5/16" to 1/2" (8 to 12 mm) thick glass
- Secures fixed panels of glass for frameless shower enclosures
- Solid brass construction
- Great alternative to U-channel for an all‑glass look
- Glass fabrication required to accommodate clamps
- Use with monolithic tempered glass
A truly versatile CRL Standard 90 Degree Glass Clamp designed for two primary uses: as a 90° clamp for vertical fixed panels in frameless shower enclosures and as a bracket for horizontal glass shelves. The clamp profile allows panels or shelves to mount flush with minimal gap for a clean, contemporary appearance.
These solid brass traditional glass clamps help preserve the frameless, all‑glass aesthetic and are available in finishes that match our shower door hinges. Each clamp includes appropriate mounting screws and one set of clear gaskets; extra clear gaskets (Cat. No. UCG77) are available separately.
Key differentiators: solid brass construction, finish options to match shower door hardware, dual-use design (panel clamp or shelf bracket), flush mounting for minimal gap and enhanced all‑glass look.
SPECIFICATIONS:
Materials: Solid Brass or Stainless Steel
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm) each panel
Includes: Gaskets and wood screw for wall‑mount application
Replacement Hardware: CRL P612 replacement screws
Note: An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).
SKU: GCB90BN
Order the GCB90BN 90° glass clamp to complete your frameless shower design — add to cart or contact us for finish availability and lead time.
