CRL Satin Brass 90 Degree Traditional Style Glass-to-Glass Clamp

Product Details

• For 5/16" to 1/2" (8 to 12 mm) Thick Glass
• Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
• Solid Brass
• A Nice Option to More Traditional U-Channel, in that the Clamps Help the Appearance of an 'All-Glass' Look
• Glass Fabrication Required to Accommodate Clamps
• Use Monolithic Tempered Glass

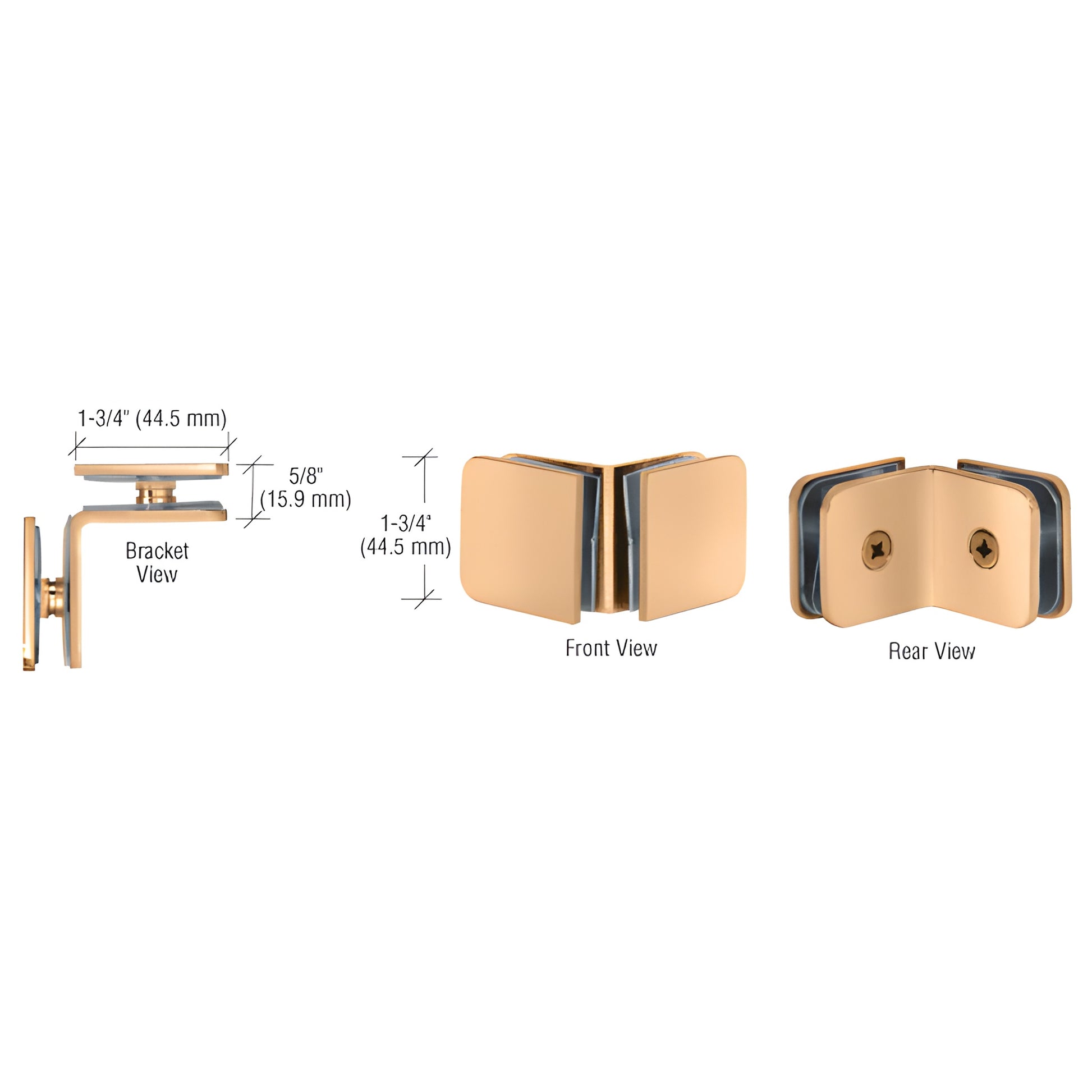

A truly versatile CRL Standard 90 Degree Glass Clamp that has two uses: As a 90 Degree Clamp for vertical fixed panels in glass shower enclosures; as a bracket for horizontal glass shelves within the enclosure. Clamp design allows for flush mounting of shelf to wall, or for adjoining panels to meet with a minimal gap.

Our solid brass Traditional Glass Clamps are designed to secure glass panels in contemporary shower enclosures. They assist in maintaining the frameless appearance, and provide a clean looking alternative to U-Channel. All Traditional Clamps feature solid brass construction and a variety of finishes to match our complete line of Shower Door Hinges. Appropriate mounting screws and one set of clear gaskets are included with each Clamp. Extra Cat. No. UCG77 Clear Gaskets may be ordered separately.

SPECIFICATIONS:

Materials: Solid Brass or Stainless Steel

Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)

Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm) Each Panel

Includes: Gaskets and Wood Screw for wall mount application.

Replacement Hardware: CRL P612 for Replacement Screws

Brass Finish Advisory:

Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
