Product Details
- For 5/16” to 3/8” (8 mm to 10 mm) Glass
- Can Be Used With the CRL All Glass Restroom Partition System
- Use Monolithic Tempered Glass
- Ultra-compact Design
- Flush Mount Inside - Easy to Clean Glass
- Snap-on Covers Conceal Screws

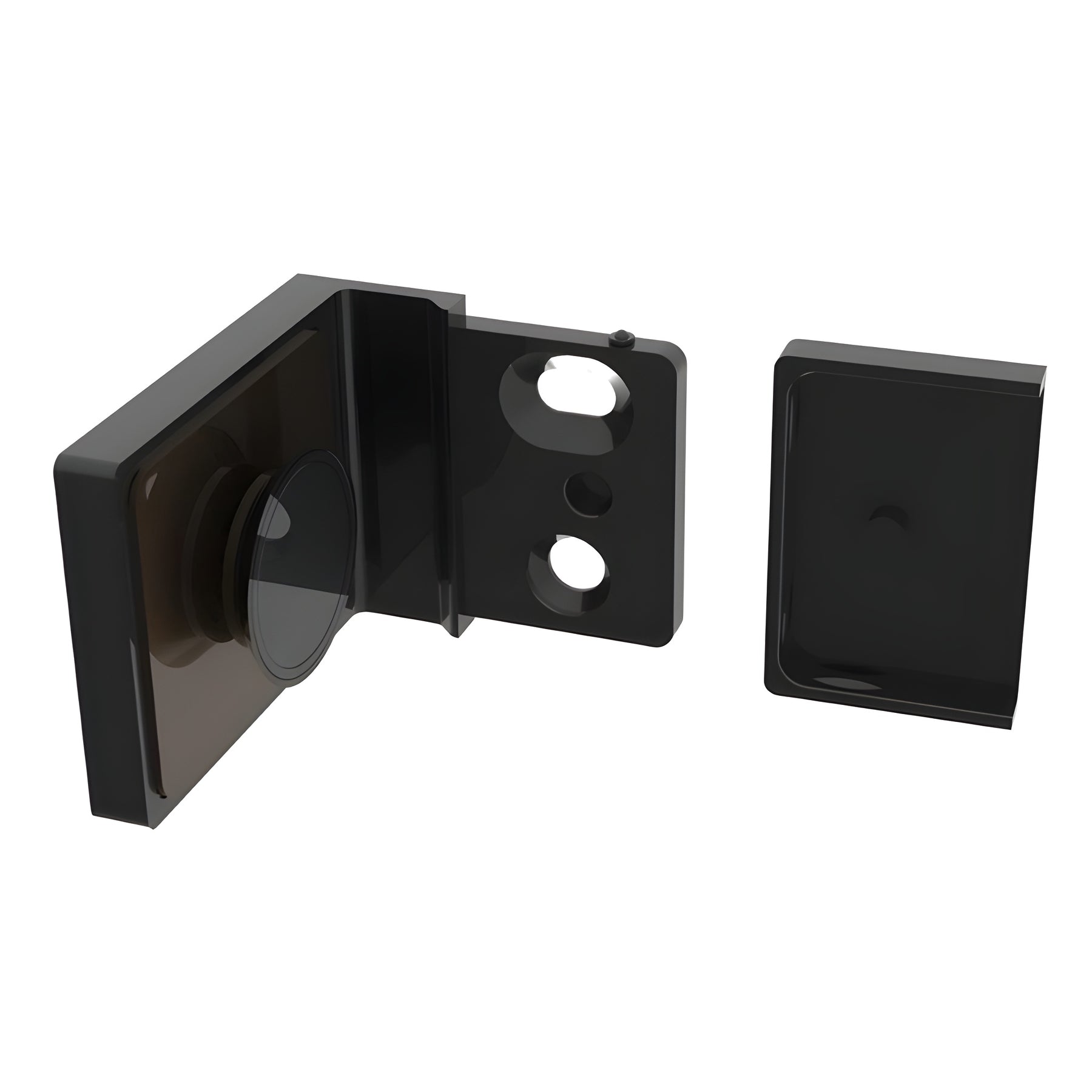

CRL Lugano Series Wall Mount Brackets are designed to work with 5/16” to 3/8” (8 mm to 10 mm) thick glass. Can also be used as a horizontal shelf bracket. They match the configuration of many of our most popular hinge and clamp series. They feature square corners and edges in several decorator finishes and are constructed of solid brass. A truly stylish way to attach glass to walls. Drawings, templates and custom finishes are available upon request.
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm)
Material: Solid Brass
Includes: Gaskets and Mounting Screws Hole Diameter
Required: One Countersunk Hole with a 1" (25mm) and a 1-1/4" (32mm) Diameter Per Bracket
