CRL Lugano Satin Brass Wall Mount Bracket - Glass Panel Hardware
Item# LU90SSB
Shipping Weight: 11.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Design Style
Concealed/Premium
Enclosure Type
Corner, Niche, Bathtub, Tailor Made Solutions
Finish/Color
Satin Brass
Glazing Thickness
5/16 in. To 3/8 in. (8 mm To 10 mm)
Material
Brass
Maximum Door Weight
99 lbs. (44.9 kg)
Maximum Door Width
35-7/16 in. (900 mm)
Mounting Type
Wall Mount
Opening Style
Swing(side)
Series
Lugano
Width - Sidelite Portion
2-9/16
Width - Wall Portion
2-15/16
- Fits 5/16” to 3/8” (8 mm to 10 mm) tempered monolithic glass
- Compatible with CRL All Glass Restroom Partition System
- Also functions as a horizontal glass shelf bracket
- Ultra-compact, flush-mount design for easy-to-clean glass

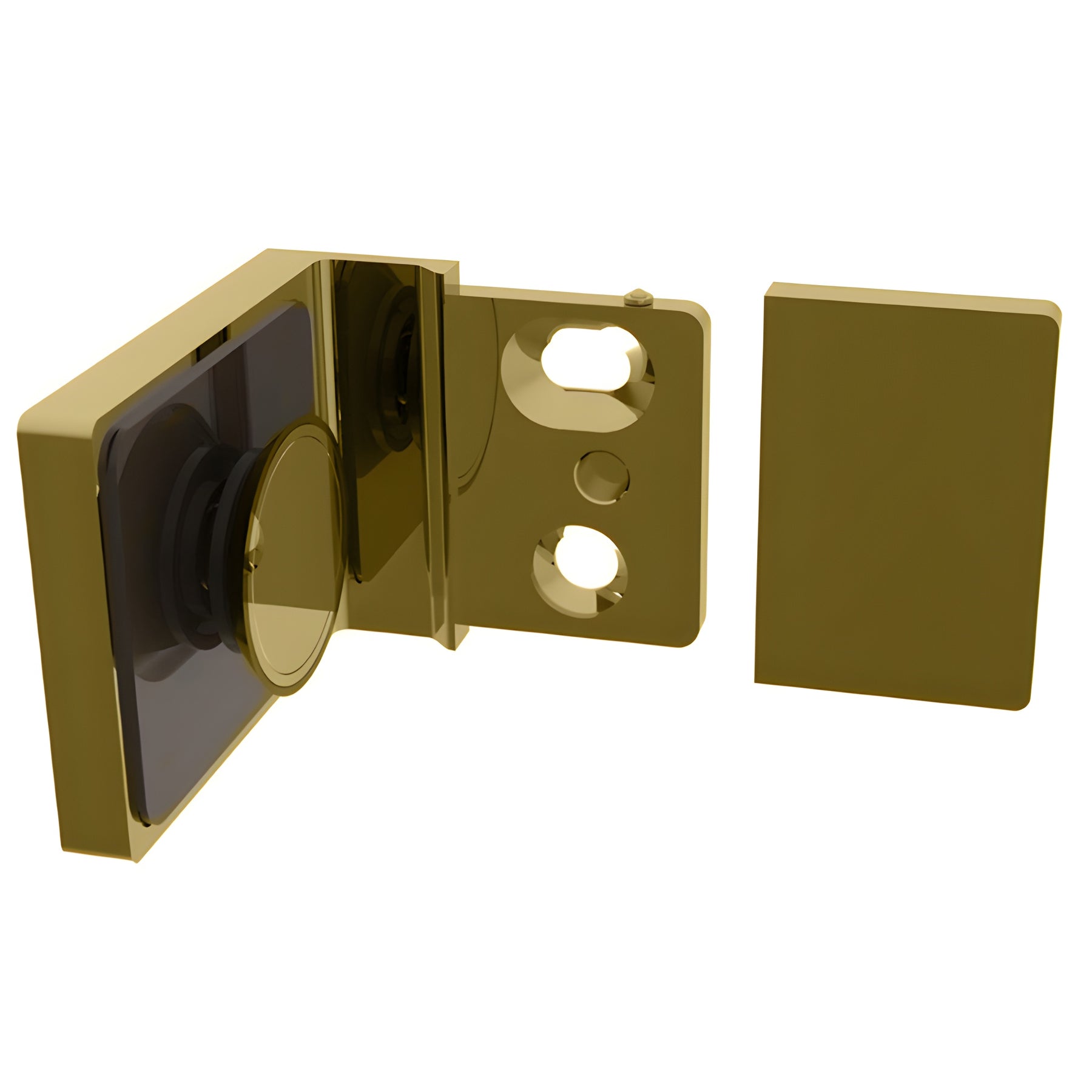

- Snap-on covers conceal mounting screws for a clean appearance

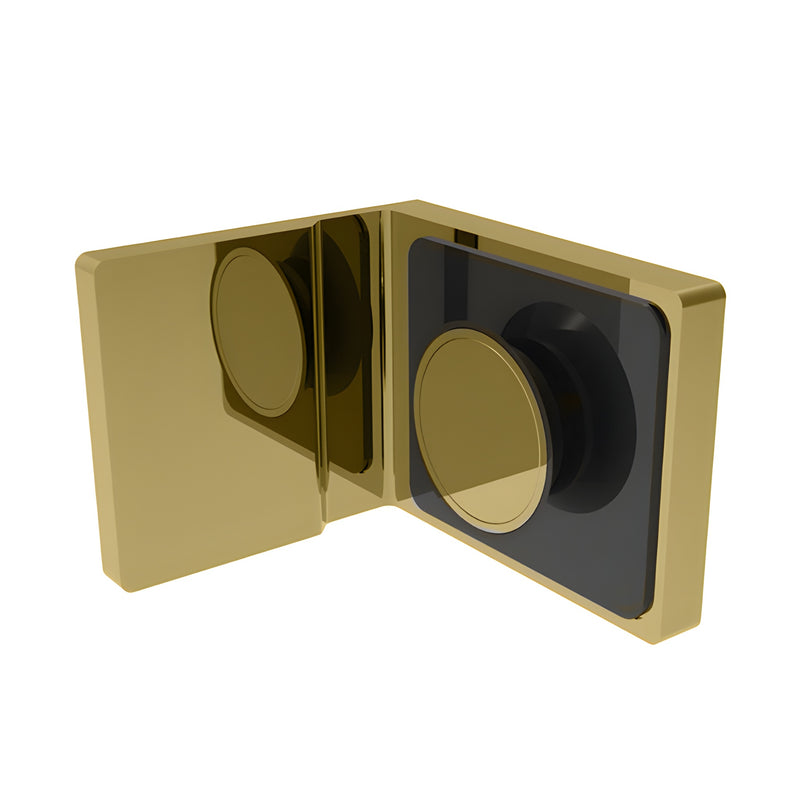

CRL Lugano Series Wall Mount Brackets (SKU: LU90SSB) are solid brass brackets designed for 5/16” to 3/8” (8 mm to 10 mm) thick tempered monolithic glass. Styled with square corners and edges in multiple decorator finishes, these compact wall-mount glass brackets match many CRL hinge and clamp series and provide a stylish, durable method to attach glass to walls or create tempered glass shelves. Drawings, templates and custom finishes are available upon request.
SPECIFICATIONS:
Glass Thickness: 5/16" to 3/8" (8 to 10 mm)
Material: Solid Brass
Includes: Gaskets and mounting screws
Required: One countersunk hole per bracket; 1" (25 mm) to 1-1/4" (32 mm) diameter
Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please contact CRL Customer Service before ordering. Product images are representative; actual colors may vary by monitor.
Brass Finish Advisory:
Although durable, brass is prone to oxidation and may develop a tarnished appearance over time. For care and finish information, see the Brass Finish Disclaimer in the Technical References section.
Order the Lugano LU90SSB wall-mount glass bracket today for a sleek, solid-brass solution for 8–10 mm tempered glass installations.
