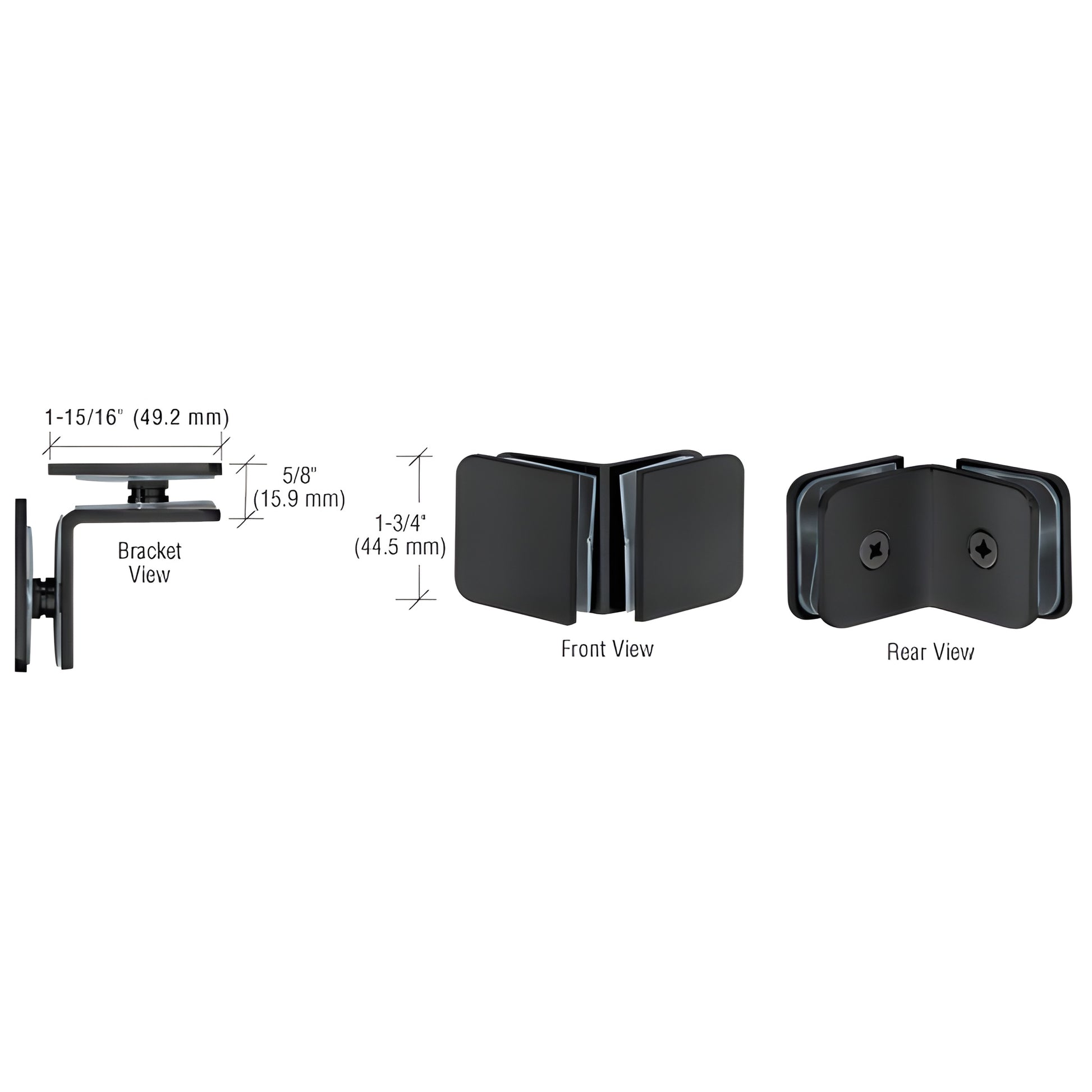

CRL Matte Black 90° Oversized Glass Clamp for Frameless Shower

• For 5/16" to 1/2" (8 to 12 mm) thick glass
• Use monolithic tempered glass
• Secures fixed panels of glass for frameless shower enclosures
• Solid brass construction
• Provides an all-glass look as an alternative to traditional U-channel
• Glass fabrication required to accommodate clamps

CRL Oversized 90 Degree Glass Clamps (SKU: GCB91MBL) perform the same function as our standard 90° clamps but are recommended for thicker 1/2" (12 mm) glass installations and drilling layouts that require a 1.5× glass-thickness edge-to-hole distance. Ideal for frameless shower enclosures, these oversized clamps are a durable option when you need a secure, clean aesthetic for tempered glass panels.

Our solid brass Traditional Glass Clamps are designed to secure fixed glass panels while preserving a contemporary, frameless appearance. They offer a neater alternative to U-channel and are available in finishes that match our shower door hinge line. Each clamp includes appropriate mounting screws and one set of clear gaskets; extra Cat. No. UCG77 clear gaskets available separately.

SPECIFICATIONS:
Materials: Solid brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm) each panel
Includes: Clear gaskets and wood screw for wall-mount application
NOTE: An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).


Order CRL Oversized 90° Glass Clamps (GCB91MBL) for frameless shower installations today
