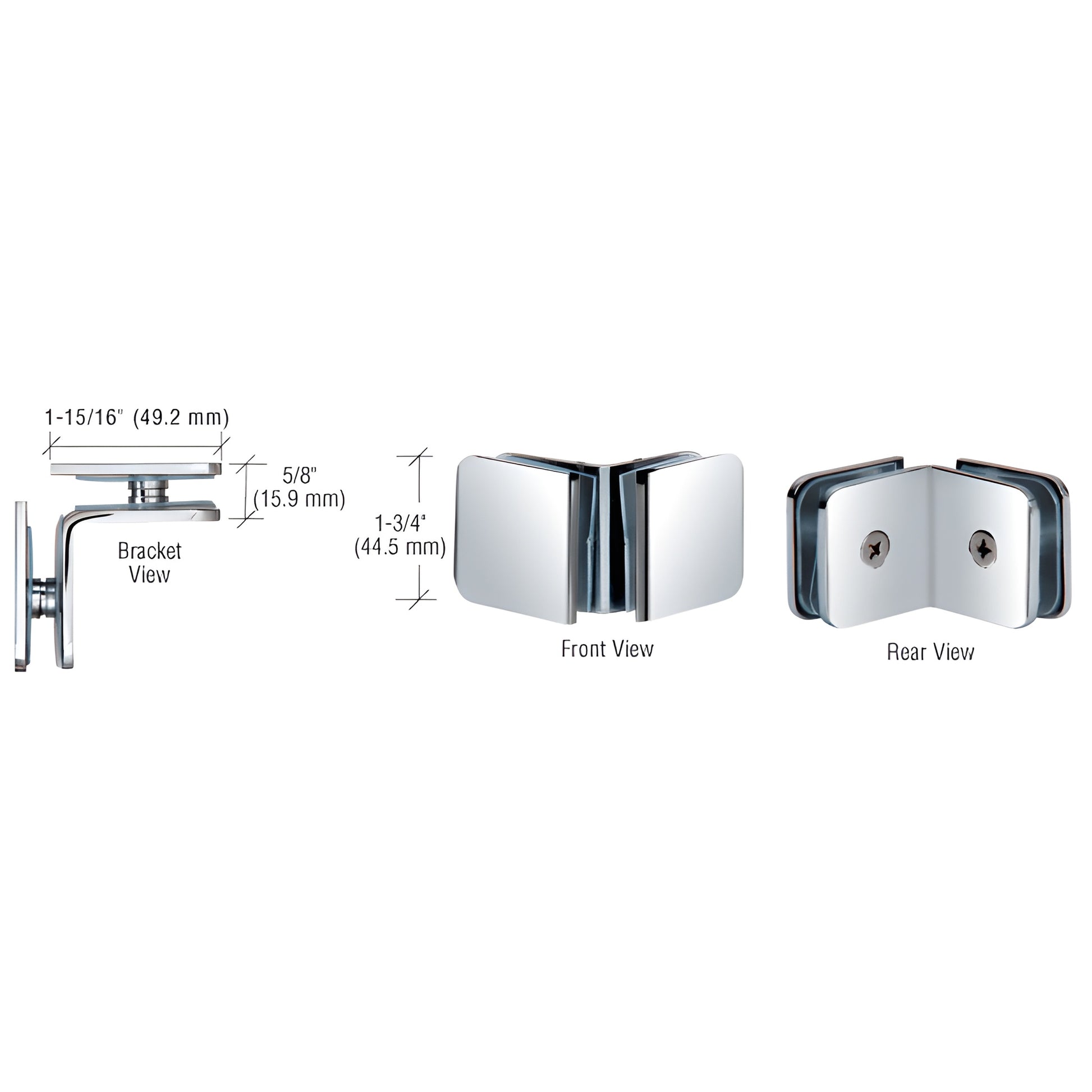

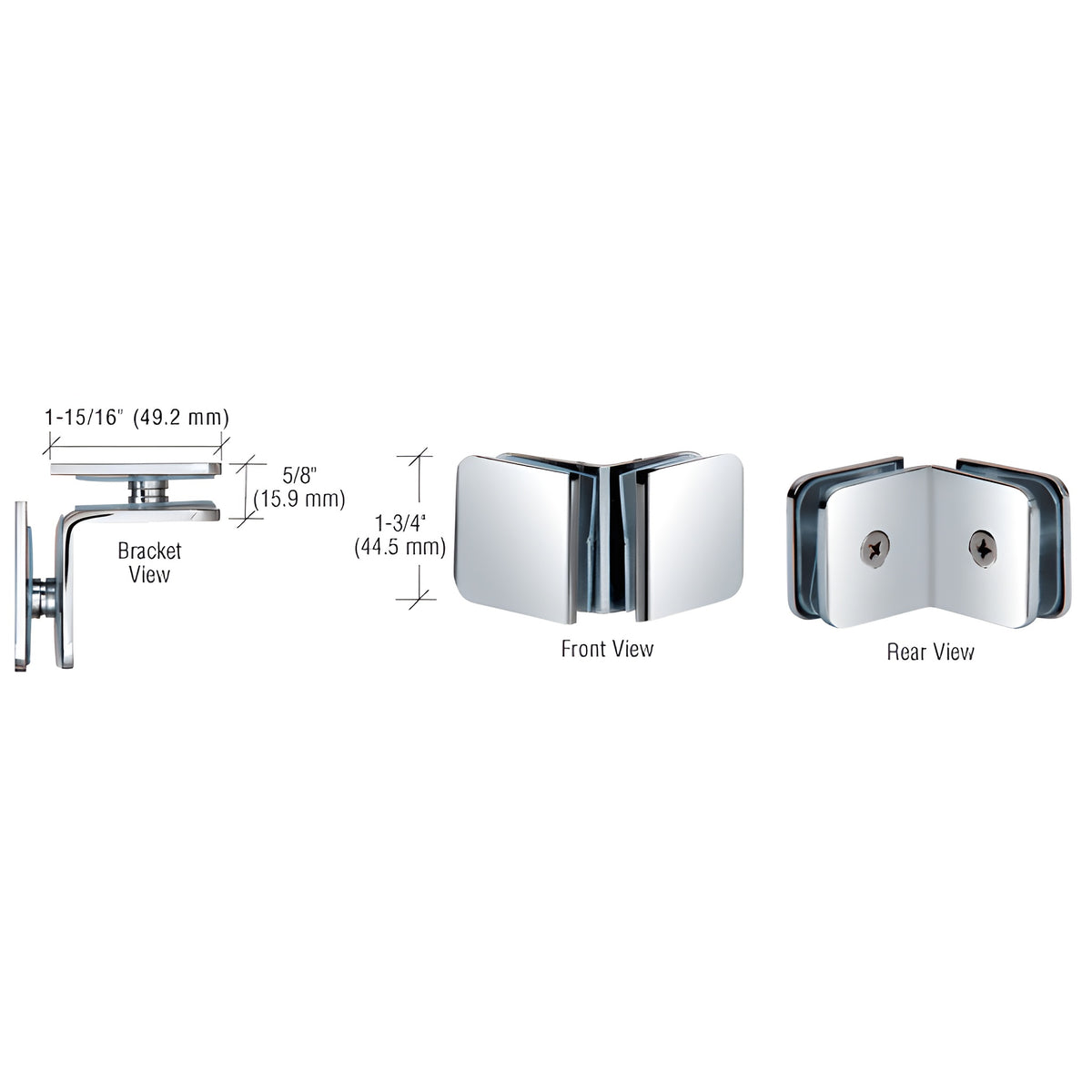

CRL Polished Chrome 90° Oversized Glass Clamp for Frameless Glass

• For 5/16" to 1/2" (8 to 12 mm) thick monolithic tempered glass
• Secures fixed panels in frameless shower enclosures
• Solid brass construction with matching finishes available
• Preferred alternative to U-channel for an all-glass appearance
• Glass fabrication required to accommodate clamp holes

CRL Oversized 90 Degree Glass Clamps (SKU: GCB91CH) are designed for frameless shower applications using 5/16"–1/2" (8–12 mm) tempered glass where increased hole-edge clearance is needed. These oversized clamps perform like standard 90° clamps but are recommended when hole placement must be 1-1/2 times the glass thickness from the glass edge.

Our solid brass Traditional Glass Clamps secure fixed glass panels while preserving a clean, frameless look—an attractive, low-profile alternative to U-channel. Each clamp includes appropriate mounting screws and one set of clear gaskets; extra clear gaskets (Cat. No. UCG77) are available separately.

SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm) each panel
Includes: Clear gaskets and wood screw for wall-mount application

NOTE: An additional set of gaskets is required for 5/16" (8 mm) glass (Cat. No. UCG77).

Order GCB91CH oversized 90° glass clamps for a streamlined frameless shower installation today.
