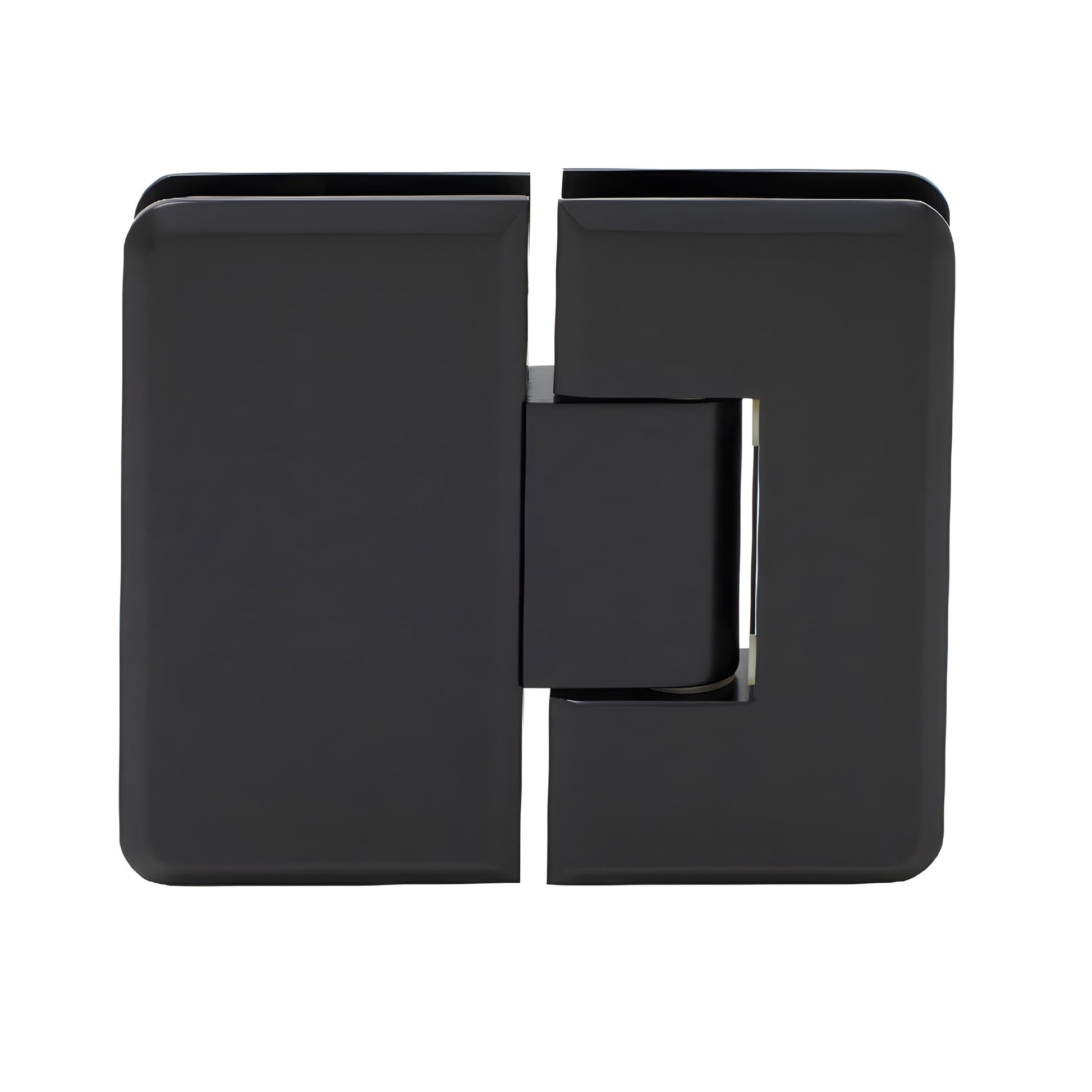

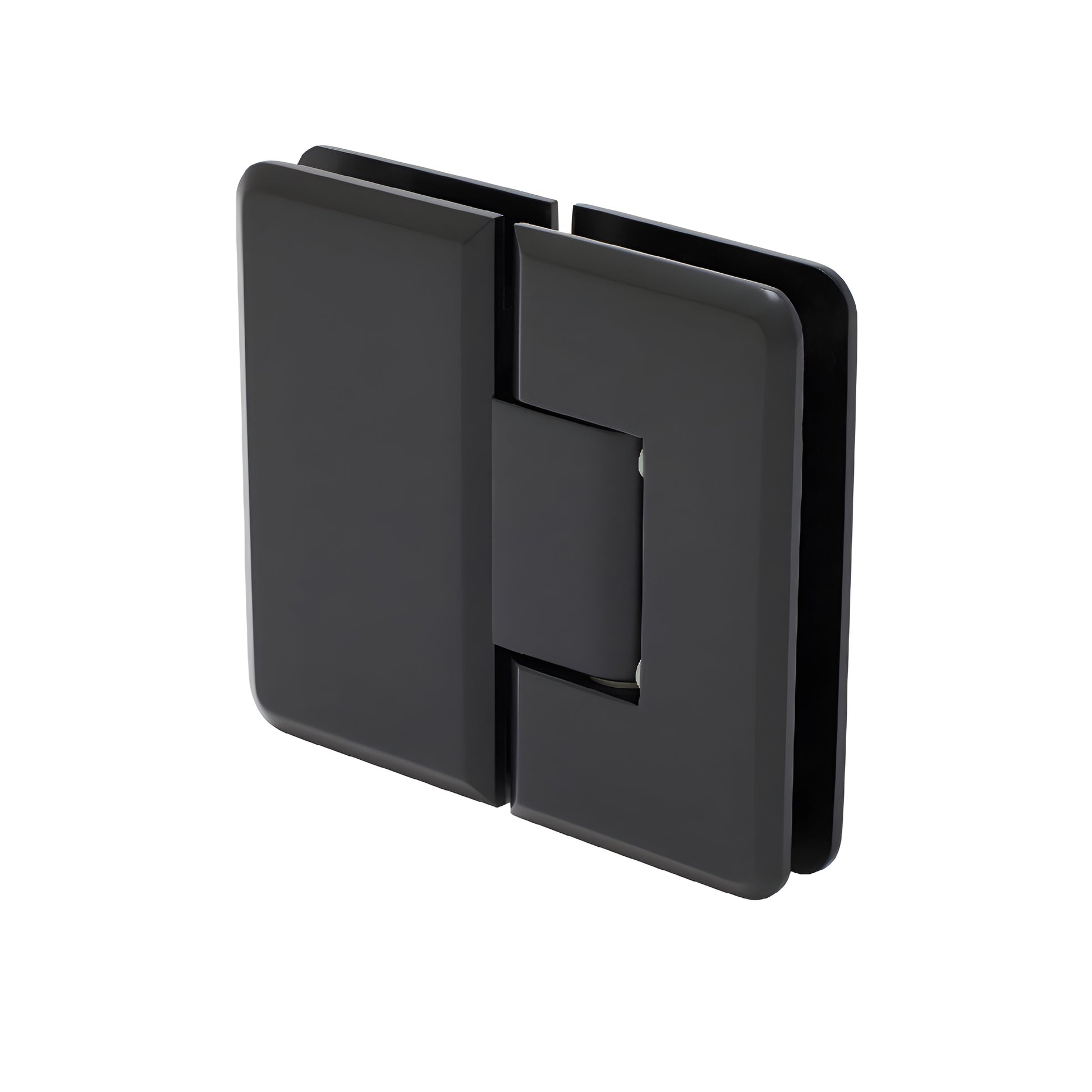

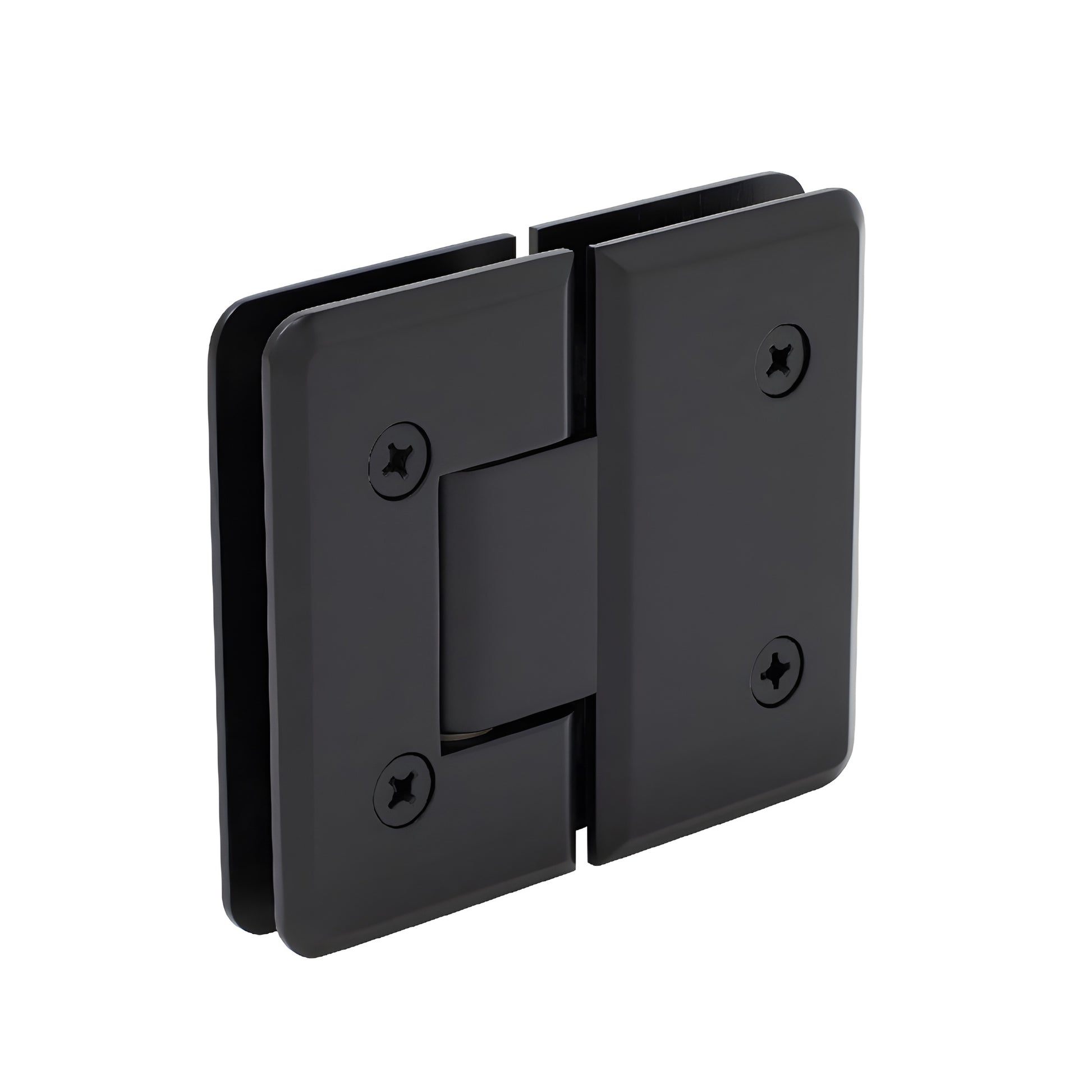

CRL Matte Black Cologne 180 Series 180ยบ Glass-to-Glass Hinge
CRL Matte Black Cologne 180 Series 180ยบ Glass-to-Glass Hinge
Regular price
$158.63 CAD
Regular price
Sale price
$158.63 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# C0L180MBL
Shipping Weight: 3.21 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 3.21 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Description
| Adjustable | No |
| Design | Style Beveled |
| Edge | Profile Beveled |
| Enclosure | Type Niche, Bathtub, Tailor Made Solutions |
| Finish/Color | Matte Black |
| Glass To Glass Angle | 180 |
| Glazing Thickness | 3/8 in. To 1/2 in. (10 mm To 12 mm) |

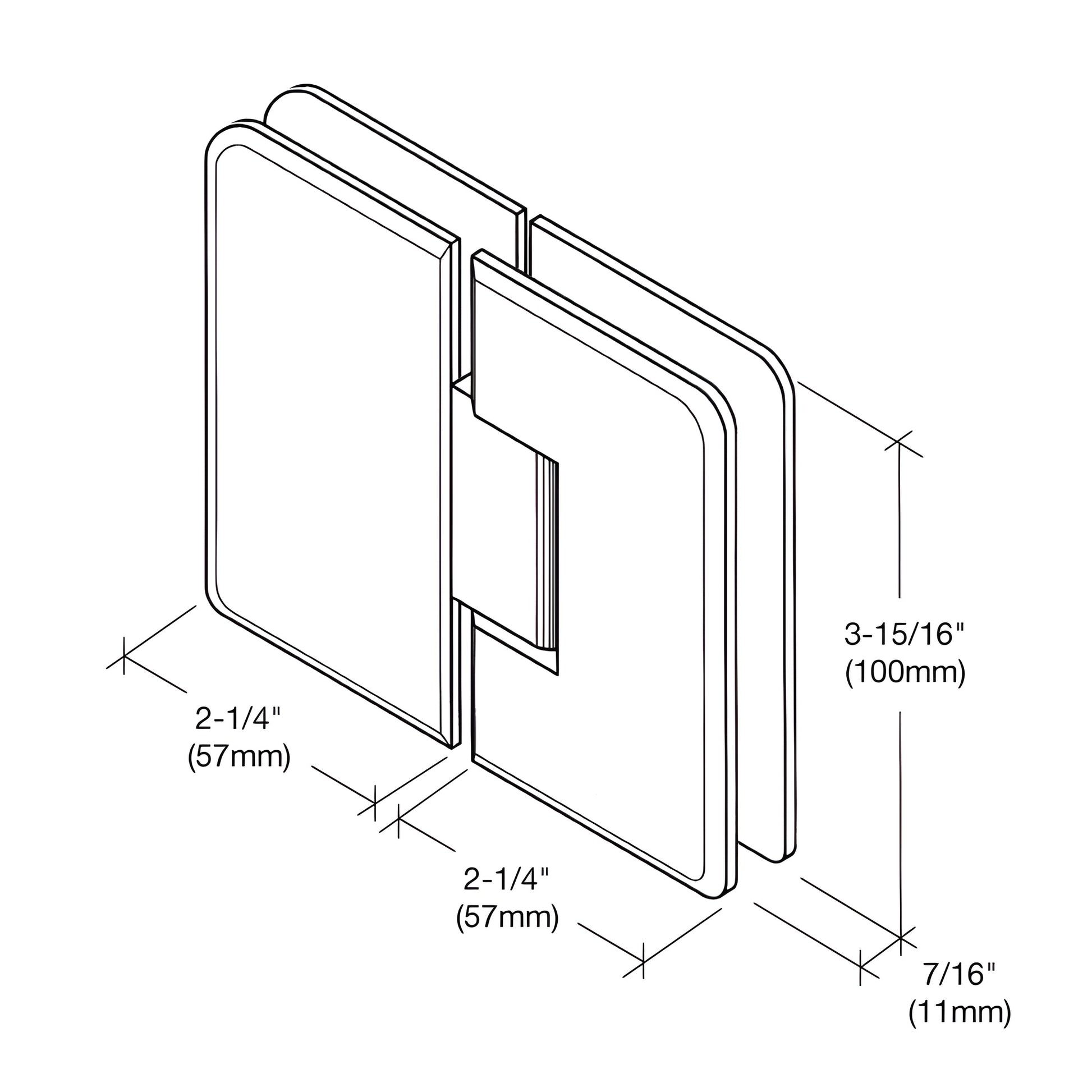

| Height 3-15/16 in. | (100 mm) |
| Material | Brass |
| Maximum Clamping Screw Torque 60 lbf.in | (677.9 cN.m) |
| Maximum Door Weight - 2 Hinges 110 lbs. | (49.9 kg) |
| Maximum Door Weight - 3 Hinges 140 lbs. | (63.5 kg) |
| Maximum Door Width 36 in. | (914 mm) |
| Mounting | Type Glass To Glass |
| Opening Style Swing | (side) |
| Positive | Close No |
| Self-Centering Yes | Cologne |
| Width - Door Portion 2-1/4 in. | (57 mm) |
| Width - Sidelite Portion | 2-1/4 |
Overview
The CRL Cologne Hinges are designed to support wider and heavier glass doors, accommodating glass thicknesses from 3/8" to 1/2" (10 to 12 mm).
Available in various beautiful finishes, these 180ยบ glass-to-glass hinges offer a sleek appearance with radius corners and beveled edges.
Featuring a standard reversible pivot pin and optional custom pivot pins for off-angle installations, Cologne Hinges ensure precise door alignment and closure.
With a solid brass construction, they can hold up to 140 lbs.
of tempered safety glass and are ideal for residential and hotel shower use.
For optimal performance, use the included template for cut-out dimensions, and consult CRL Technical Sales for custom finishes or alternative applications.
Available in various beautiful finishes, these 180ยบ glass-to-glass hinges offer a sleek appearance with radius corners and beveled edges.
Featuring a standard reversible pivot pin and optional custom pivot pins for off-angle installations, Cologne Hinges ensure precise door alignment and closure.
With a solid brass construction, they can hold up to 140 lbs.
of tempered safety glass and are ideal for residential and hotel shower use.
For optimal performance, use the included template for cut-out dimensions, and consult CRL Technical Sales for custom finishes or alternative applications.
Specifications
Brochures & Literature
Quote Request Forms
Templates
CAD Drawings - pdf
CAD Drawings - dwg
Cleaning & Maintenance
