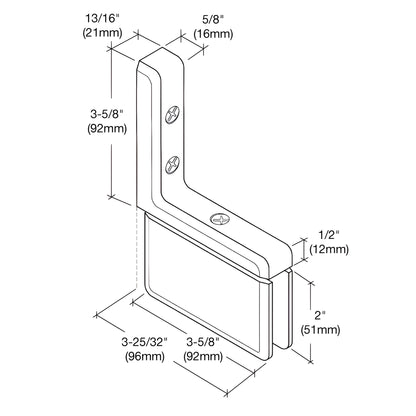

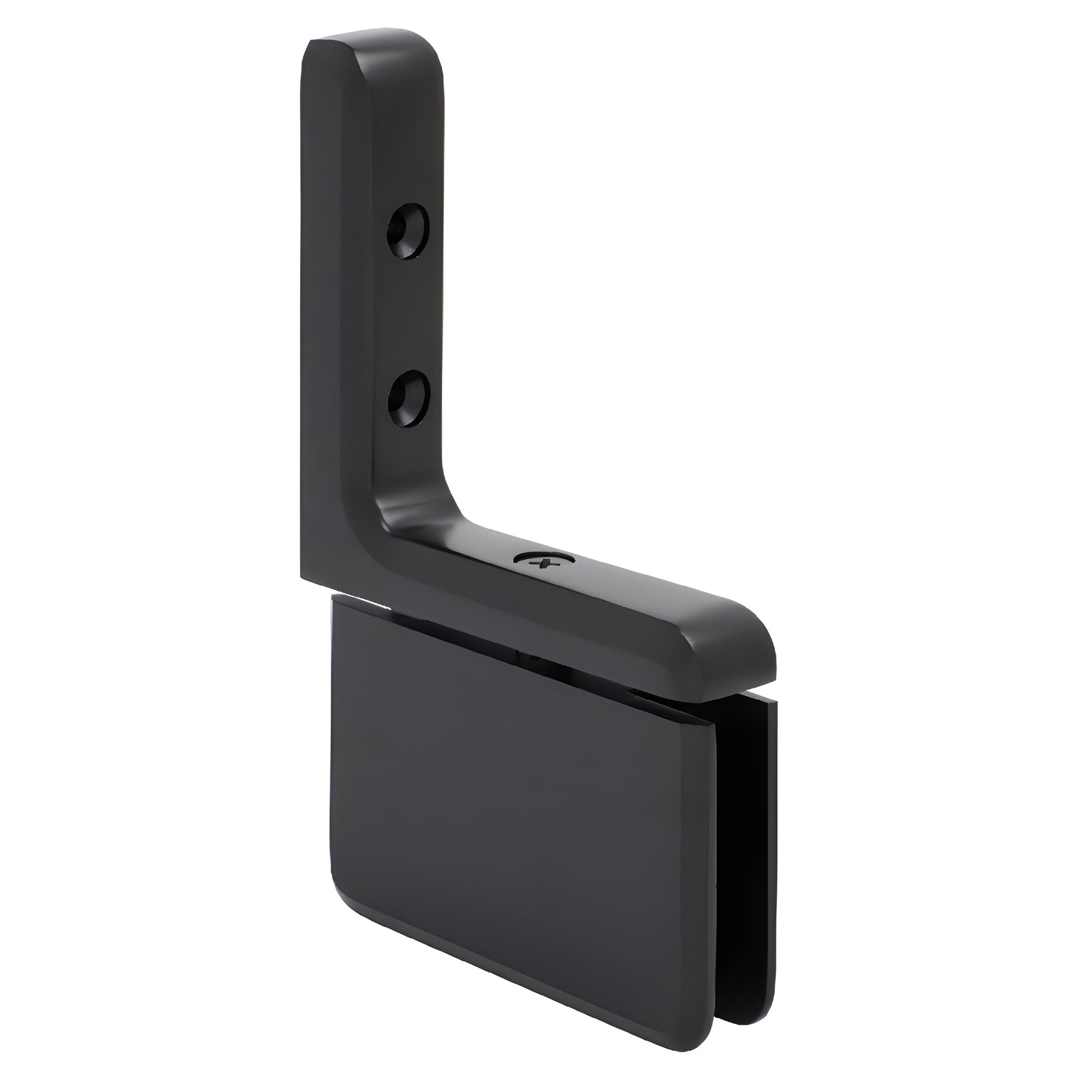

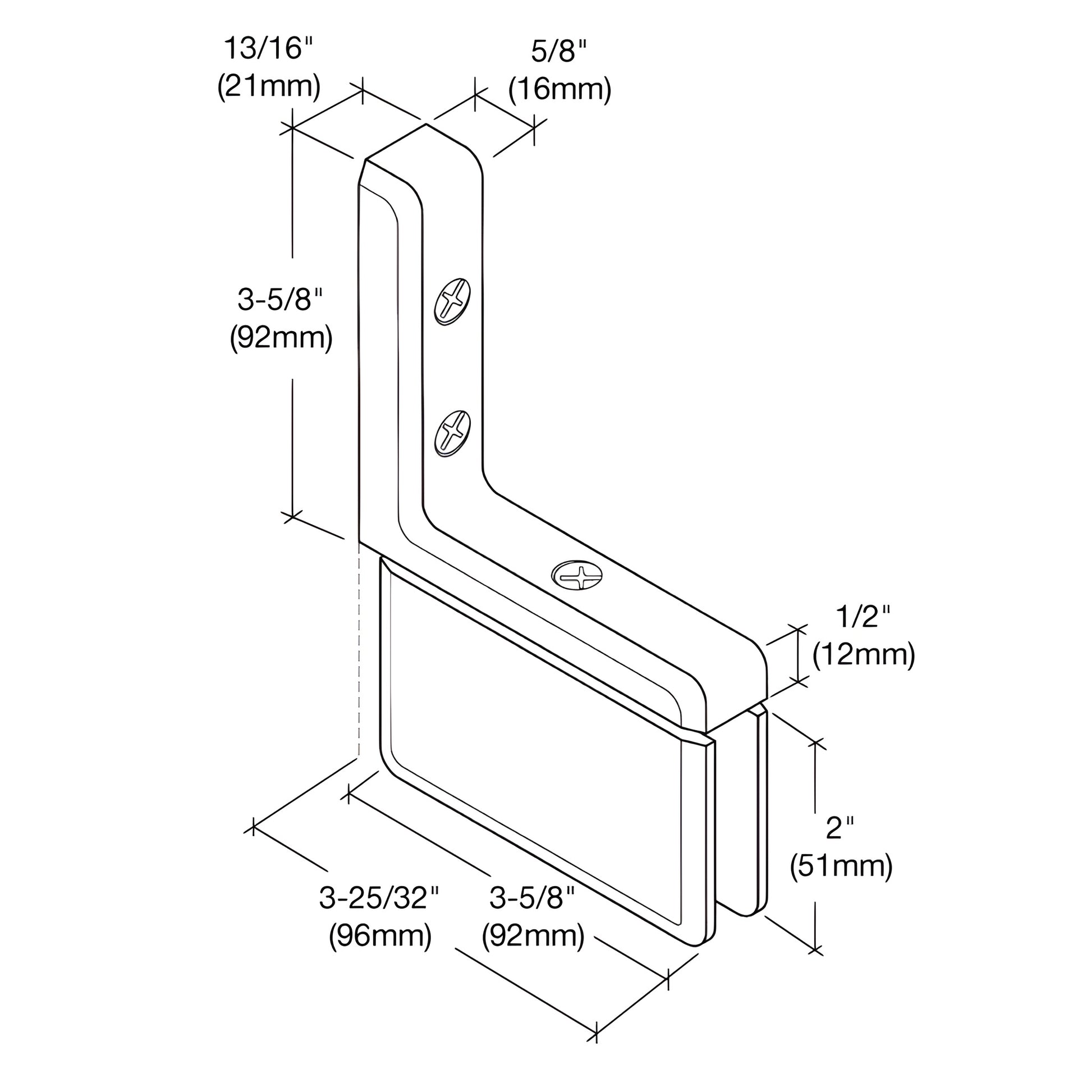

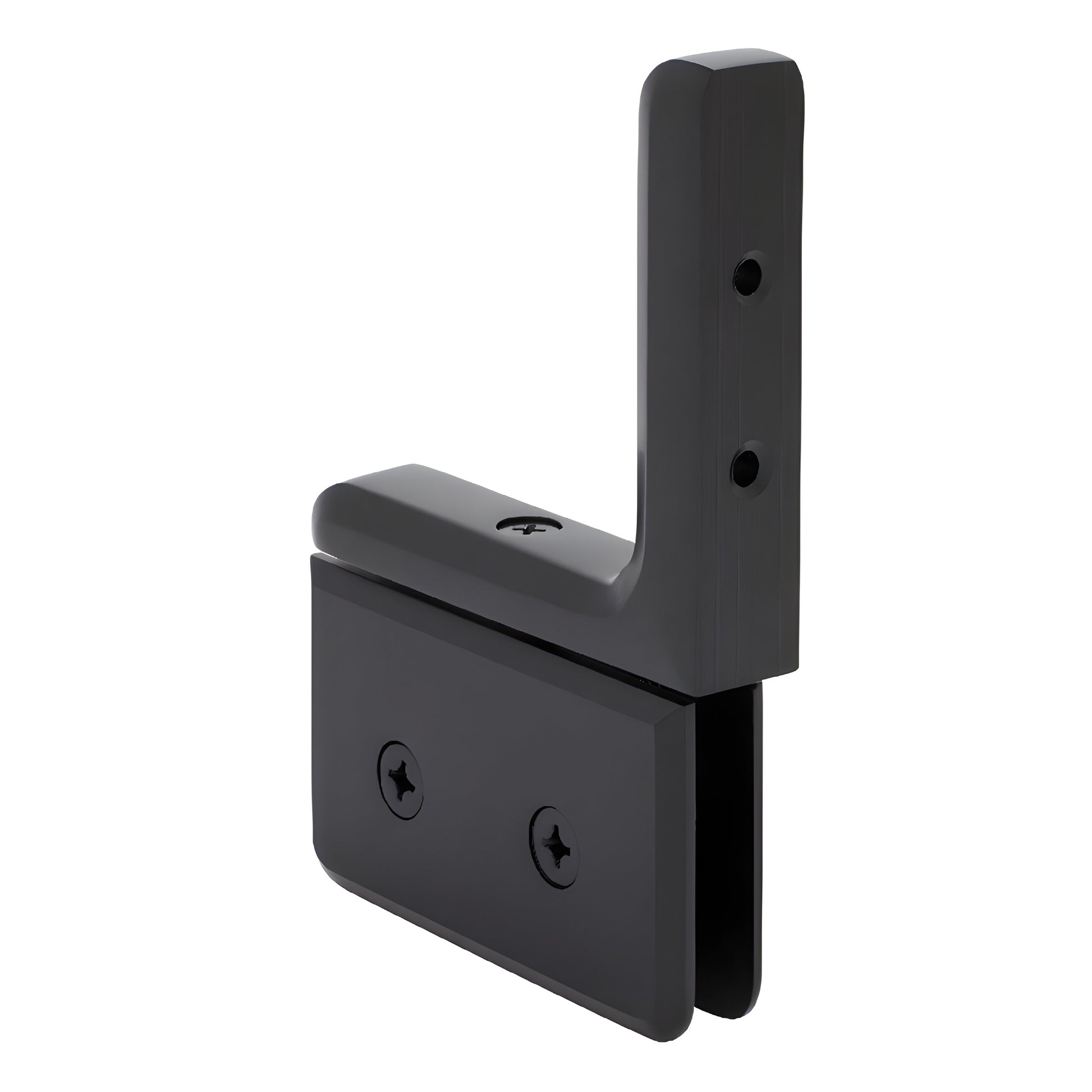

CRL Prima 03 Matte Black Wall-Mount Glass Door Hinge

• L-Bracket Wall Mount
• Self-Centering with Optional 5 Degree Pivot Pin Set
• Available in Several Beautiful Finishes
• 3 Year Warranty
• Use Monolithic Tempered Glass
• U.S. Patent 5,297,313

CRL Prima Series Pivot Hinges — SKU PPH03MBL are engineered for tempered safety glass shower doors (5/16" to 3/8" / 8–10 mm). These pivot shower door hinges shift most load to the bottom pivot, allow inset mounting for towel-bar clearance, and expose more glass for a clean, modern look. Prima hinges are self-centering with four retention springs for reliable closing and long-term performance. Optional Cat. No. P1VP1N 5° Pre-Set Pivot Pin Sets are available separately; Pre-Set 5° hinge models are stocked for faster installation options.


Optional 5° Pivot Pin Set (Prima, Cardiff, Rondo, Shell Series): Change the door closing position by 5° with retrofit or pre-install pivot pins. Sold as a set (top and bottom). Not included with hinge purchase. Pre-Set 5° hinge models are available from stock.

Capacity (two hinges): With 5/16"–3/8" (8–10 mm) glass, two hinges support up to 100 lbs (45 kg) and a maximum door width of 31" (787 mm). Ideal for frameless tempered glass shower doors and other residential/hotel shower applications.

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 3/8" (10 mm) Tempered Safety Glass
Special Features: Top-and-bottom mount design shows more glass and reduces glass cut-outs versus standard side-mount glass-to-glass hinges. Cat. No. PPH01 can be mounted floor-and-ceiling or floor-and-header.
Construction: Solid Brass
Hinge Swings: Full Rotation
Closing Type: Self-centering within 15° of closed position
Cut-Out Required: (PPH135 model also requires two holes; PPH07 model requires cut-out for hinge plus hole for clamp.)
Includes: Gaskets, screws, and glass fabrication dimensions
Patent: This hinge series is patented (Patent No. 5,297,313).

Custom finishes available on request — contact the CRL Technical Sales Department.


Product Warning:

CRL Shower Door Hinges are designed for residential or hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department.

Use only the template included with this hinge. Cut-out dimensions for CRL hinges may differ from other
