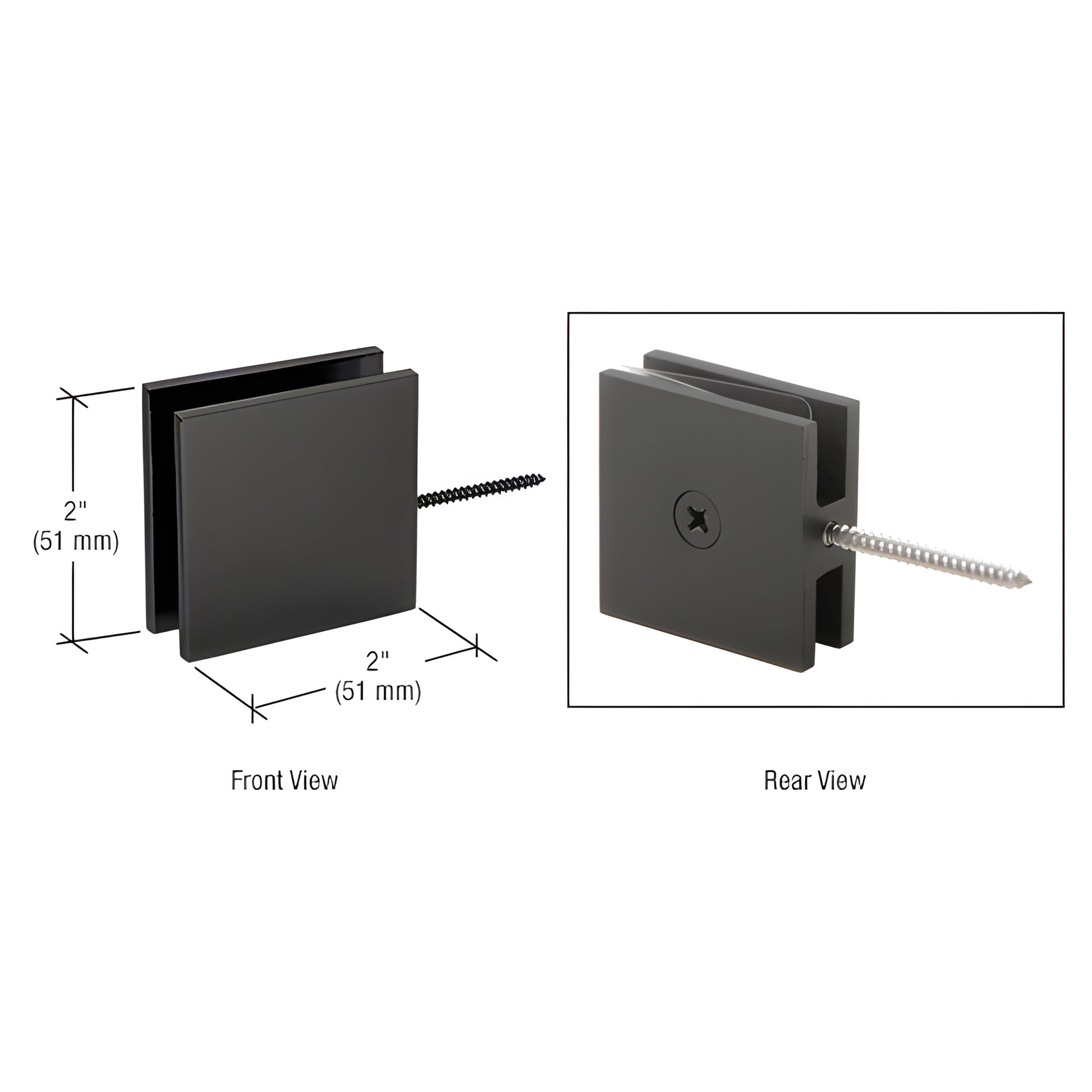

CRL Matte Black Square Wall Mount Movable Transom Clamp

• For 3/8" to 1/2" (10 to 12 mm) Thick Glass
• Glass Transom Swivels to Allow Release of Steam
• Wall Mount, and 180 Degree Models Available
• Solid Brass Material
• Use Monolithic Tempered Glass

CRL Square Wall Mount Movable Transom Clamps

are designed to rotate a movable transom off a wall. Clamp must be centered on the transom to achieve balanced movement. Maximum movable transom size is 16" x 30" (406 x 762 mm).

Replacement Nylon Washer is Cat. No. 90295A120. Replacement Gasket is Cat. No. SGCU1G.

Solid Brass

3/8" to 1/2" (10 to 12 mm)

SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes

Gaskets and Mounting Screws

Maximum transom size is 16" x 30" (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. Call for details.
