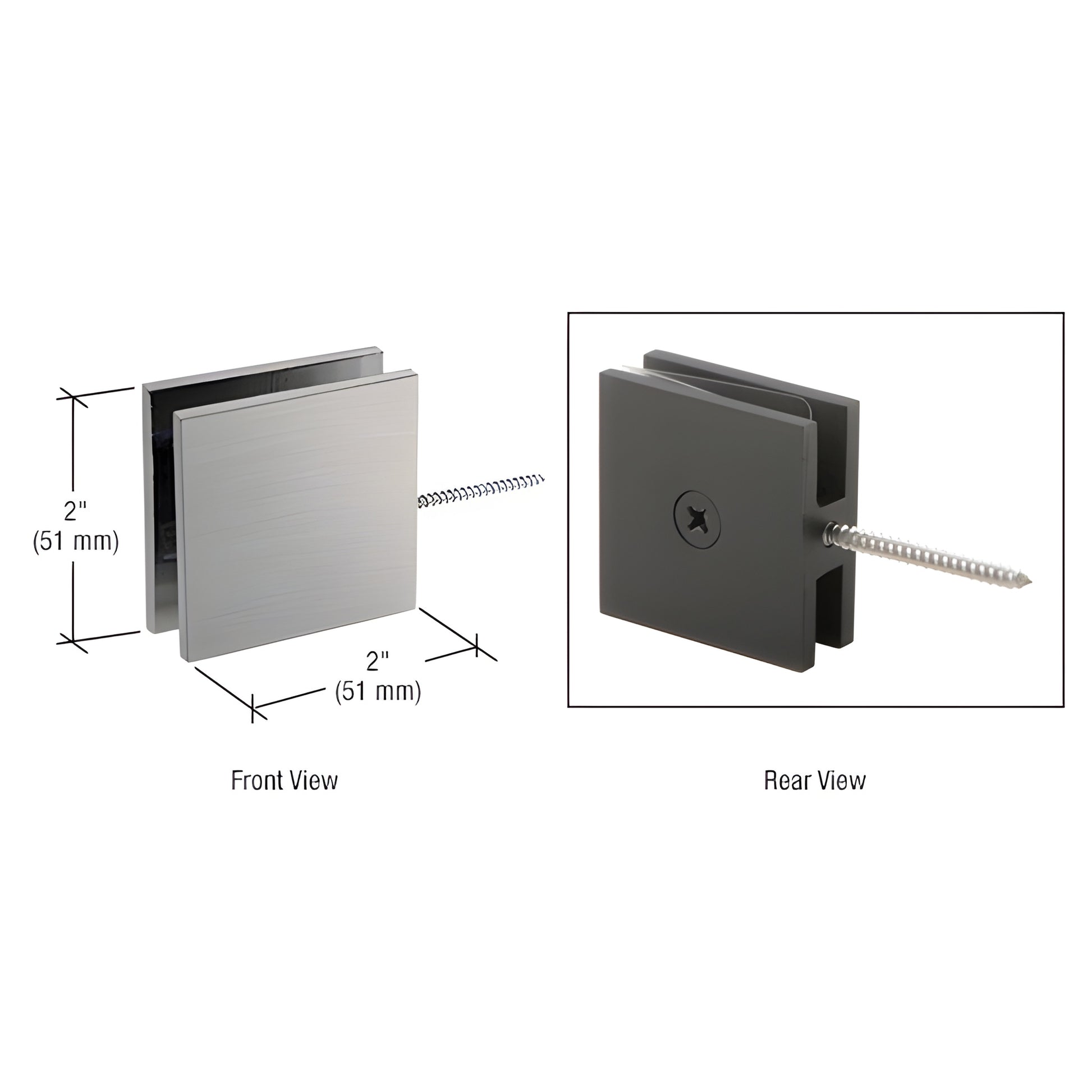

CRL Brushed Nickel Square Wall-Mount Movable Transom Clamp for Glass

• For 3/8" to 1/2" (10 to 12 mm) thick glass
• Glass transom swivels to allow steam release
• Wall mount and 180° models available
• Solid brass material
• Use monolithic tempered glass

CRL Square Wall Mount Movable Transom Clamps — SKU: SGC186BN are solid-brass transom clamps designed to rotate a movable transom away from a wall for ventilation or access. The swivel transom feature permits steam release and controlled movement. The clamp must be centered on the transom to achieve balanced operation. Maximum movable transom size: 16" x 30" (406 x 762 mm). NOTE: Replacement nylon washer: Cat. No. 90295A120. Replacement gasket: Cat. No. SGCU1G.

SPECIFICATIONS:
Materials: Solid brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes
Includes: Gaskets and mounting screws

NOTE: Maximum transom size is 16" x 30" (406 x 762 mm). Larger transoms require pivot hinges used as transom clamps — call for details.

Ideal for glass door transoms and tempered-glass shower enclosures where a durable, brass swivel clamp is required. Order SGC186BN today.
