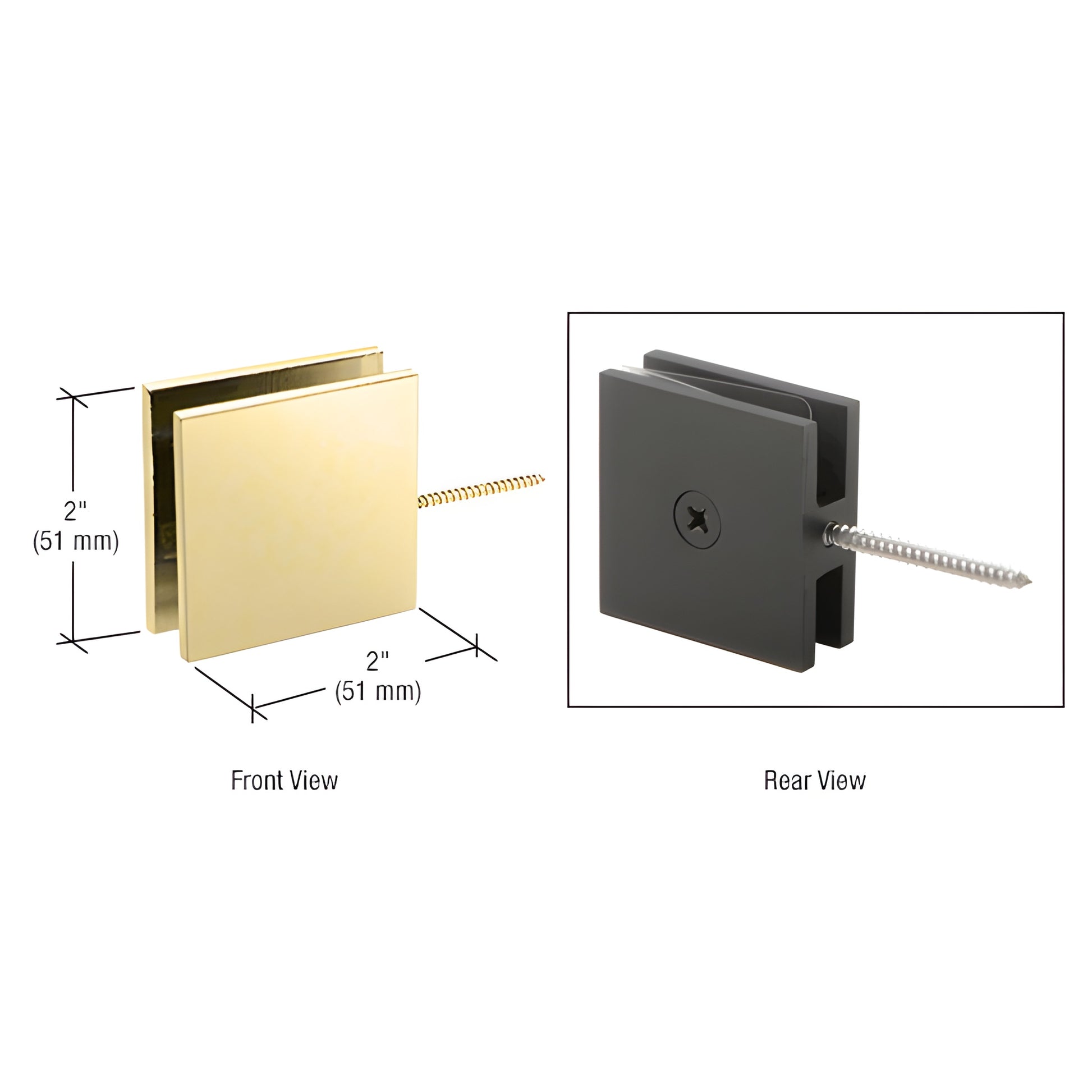

• SGC186BR polished brass square wall-mount movable transom clamp, 2x2 in, for 3/8 to 1/2 in tempered glass
1 1

CRL

CRL Polished Brass Adjustable Square Wall-Mount Transom Clamp

CRL Polished Brass Adjustable Square Wall-Mount Transom Clamp

$24.92 CAD
$24.92 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SGC186BR
Shipping Weight: 8.144 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Design Style
Squared
Enclosure Type
Niche, Tailor Made Solutions
Finish/Color
Polished Brass
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Height
2 in. (51 mm)
Material
Brass
Mounting Type
Wall Mount
Width
2 in. (51 mm)

Overview

  • For 3/8" to 1/2" (10 to 12 mm) thick tempered glass
  • Glass transom swivels to allow release of steam
  • Wall mount and 180° models available
  • Solid brass material for durability
  • Use with monolithic tempered glass

CRL Square Wall Mount Movable Transom Clamps — SKU: SGC186BR are designed to rotate a movable transom away from a wall for ventilation or access. Clamp must be centered on the transom for balanced movement. Maximum movable transom size is 16" x 30" (406 x 762 mm). NOTE: Replacement nylon washer: Cat. No. 90295A120. Replacement gasket: Cat. No. SGCU1G.


SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes
Includes: Gaskets and mounting screws

NOTE: Maximum transom size is 16" x 30" (406 x 762 mm). Larger transoms require pivot hinges used as transom clamps—contact CRL for application guidance.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs before you complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on your monitor settings.

Brass Finish Advisory:
Although durable, brass is prone to oxidation and can develop a tarnished appearance over time regardless of initial packaging or storage. For care and finish information, view the Brass Finish Disclaimer in the Technical References section.


Ordering: For pricing, lead times, or technical assistance with SKU

Specifications

Templates
SGC186 Template
