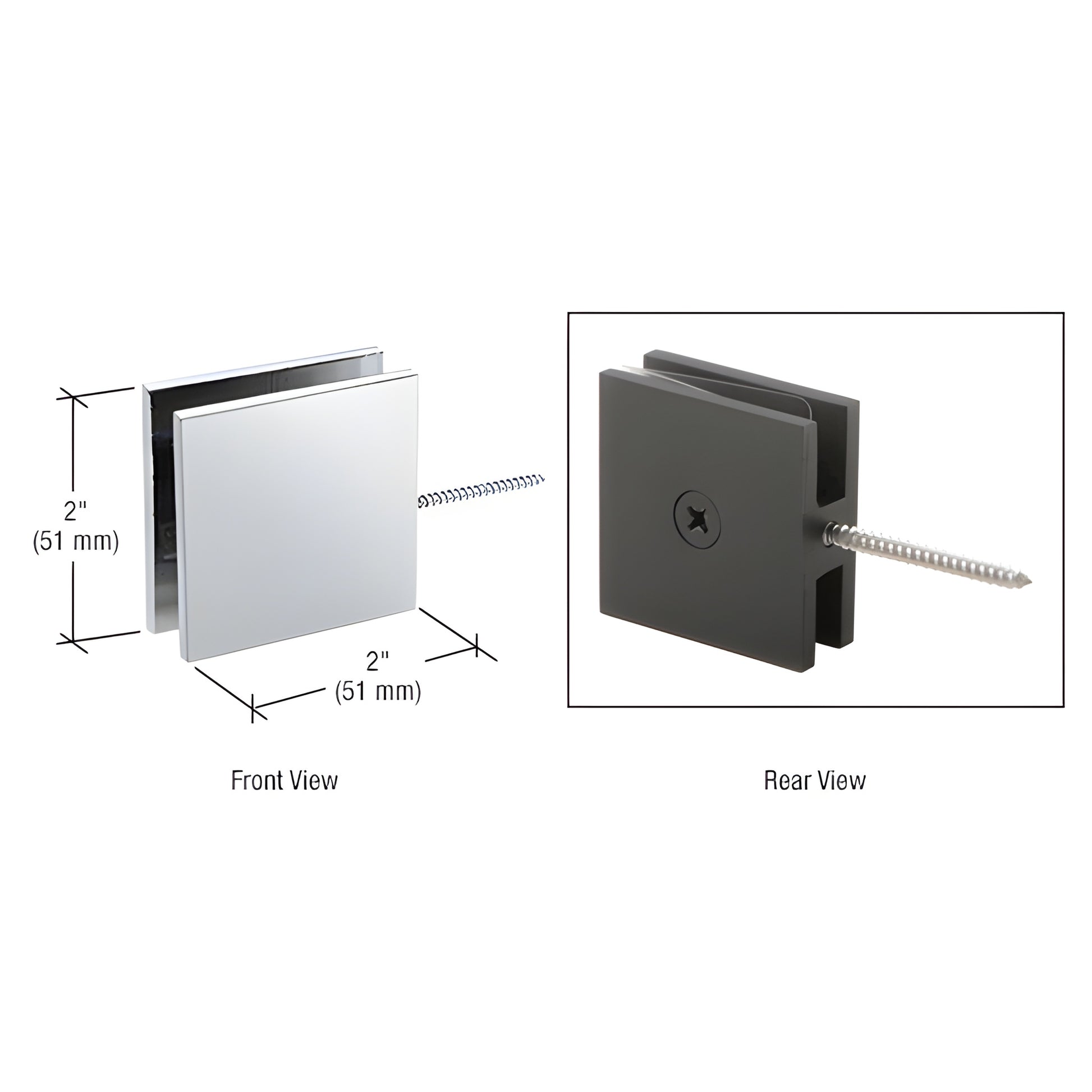

CRL Polished Chrome Square Adjustable Wall-Mount Transom Clamp
CRL Polished Chrome Square Adjustable Wall-Mount Transom Clamp
Regular price
$21.66 CAD
Regular price
Sale price
$21.66 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGC186CH
Shipping Weight: 7.52 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 7.52 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Squared
Enclosure Type
Niche, Tailor Made Solutions
Finish/Color
Polished Chrome
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Height
2 in. (51 mm)
Material
Brass
Mounting Type
Wall Mount
Width
2 in. (51 mm)
Overview
- For 3/8" to 1/2" (10 to 12 mm) thick glass
- Glass transom swivels to allow release of steam
- Wall mount and 180° models available
- Solid brass construction for corrosion resistance
- Use with monolithic tempered glass
CRL Square Wall Mount Movable Transom Clamps (SKU: SGC186CH) are engineered to rotate a movable transom away from the wall, providing controlled ventilation and steam release. Clamps must be centered on the transom for balanced movement. Maximum recommended movable transom size is 16" x 30" (406 x 762 mm). Replacement parts: Nylon washer Cat. No. 90295A120, gasket Cat. No. SGCU1G.
SPECIFICATIONS:
Materials: Solid brass
Glass thickness range: 3/8" to 1/2" (10 to 12 mm)
Glass fabrication required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes
Includes: Gaskets and mounting screws
NOTE: Maximum transom size is 16" x 30" (406 x 762 mm). Larger transoms require pivot hinges used as transom clamps — call CRL for application support and installation guidance.
