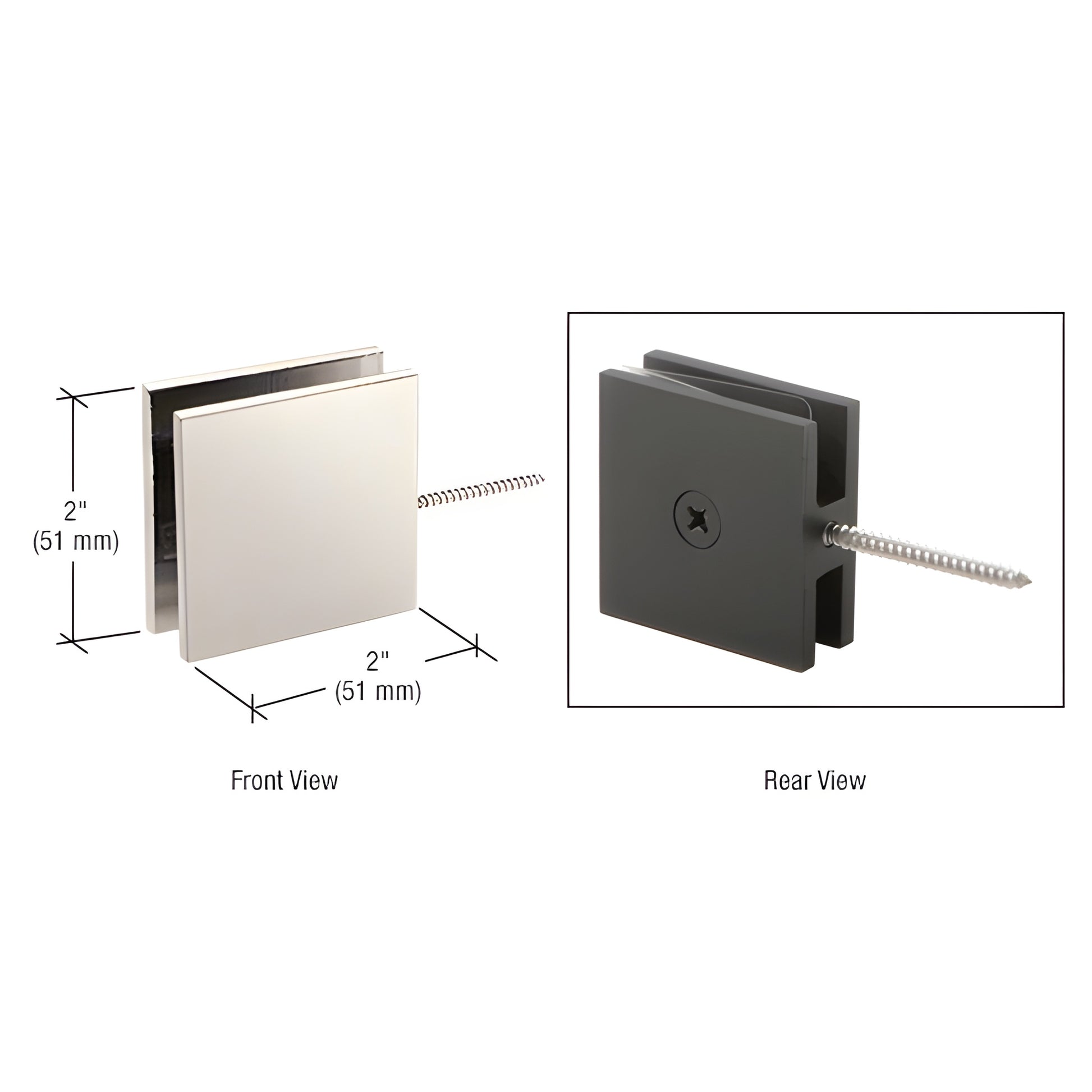

CRL Square Polished Nickel Wall-Mount Adjustable Transom Clamp
CRL Square Polished Nickel Wall-Mount Adjustable Transom Clamp
Regular price
$26.00 CAD
Regular price
Sale price
$26.00 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SGC186PN
Shipping Weight: 8.16 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.16 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Design Style
Squared
Enclosure Type
Niche, Tailor Made Solutions
Finish/Color
Polished Nickel
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Height
2 in. (51 mm)
Material
Brass
Mounting Type
Wall Mount
Width
2 in. (51 mm)
Overview
- Fits 3/8" to 1/2" (10–12 mm) tempered glass
- Glass transom swivels to allow steam release
- Available in wall-mount and 180° models
- Solid brass construction for corrosion resistance
- Designed for use with monolithic tempered glass
CRL Square Wall Mount Movable Transom Clamps — SKU: SGC186PN are precision brass movable transom clamps designed to rotate a transom away from the wall for ventilation, steam release, or access. Clamp must be centered on the transom for balanced movement. Maximum movable transom size: 16" x 30" (406 x 762 mm). Replacement Nylon Washer: Cat. No. 90295A120. Replacement Gasket: Cat. No. SGCU1G.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 require 3/4" (19 mm) holes
Includes: Gaskets and mounting screws
NOTE: Maximum transom size is 16" x 30" (406 x 762 mm) wide. Larger transoms require pivot hinges used as transom clamps — call for details.
Order the SGC186PN brass movable transom clamp for dependable wall-mount venting and easy steam release — contact us to buy or get a quote.
