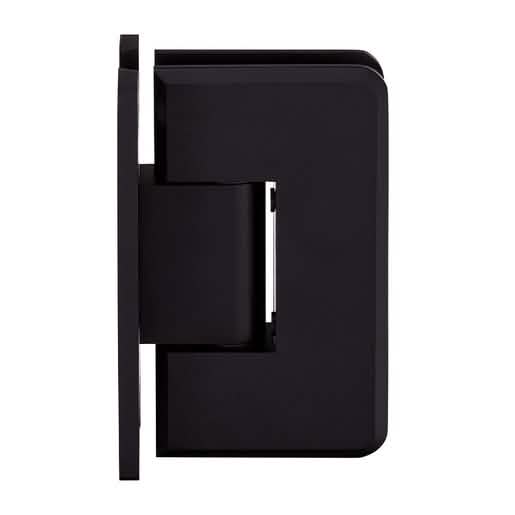

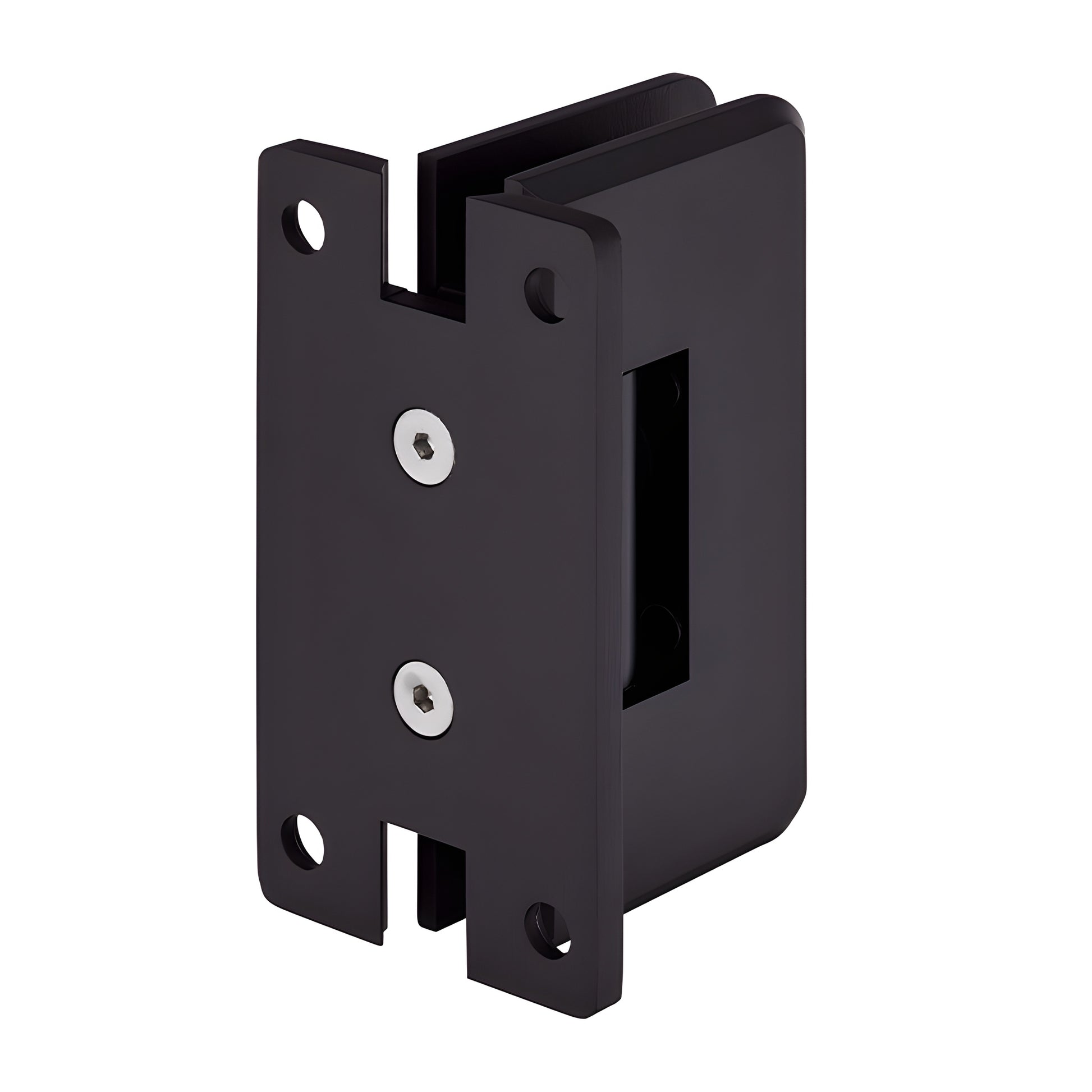

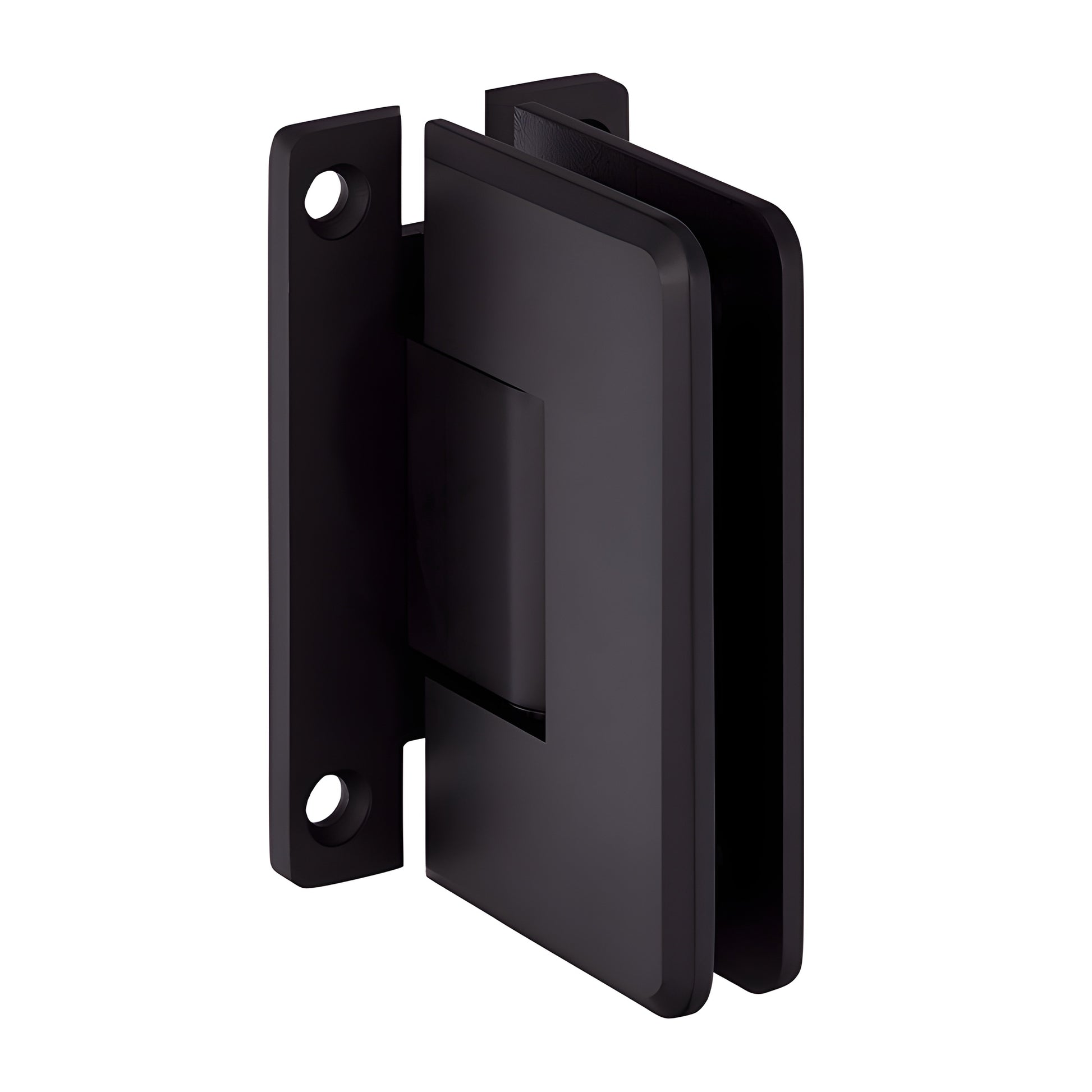

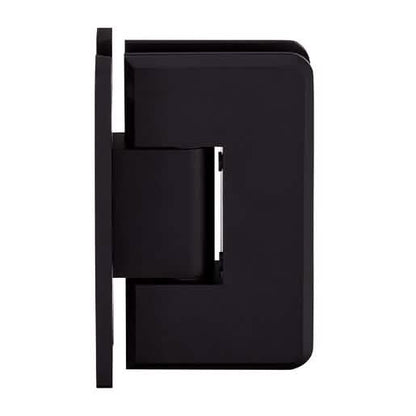

CRL Cologne 537 Pre-Set 5° Oil Rubbed Bronze Shower Door H Back Plate

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Self-centering with reversible 5º pivot pin
• Available in several durable, decorative finishes
• 5º pre-set model (factory set for 5º tighter closure into shower interior)
• Use monolithic tempered safety glass

CRL Cologne Hinges are like our Vienna Hinges but with radius corners and beveled edges for a sleeker appearance. Built from solid brass, Cologne Hinges support wider, heavier shower doors that traditional hinges cannot. Two internal steel pins provide mounting options: leave both pins in place for CRL "mouse-ears" cut-outs (enhanced safety), or remove them for increased adjustability to fit CRL rectangular cut-outs and, in some cases, competitive rectangular cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge contains a reversible pivot pin marked 90º on one side and 85º on the other. Standard units ship with the 90º side activated. Pre-set models ship with the 85º side activated for a 5º tighter closure into the shower interior. The pin can be rotated (not flipped) to change the active angle.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify up to 45º) when the standard 5º adjustment does not achieve the desired closing position.

CAPACITY:
Using two hinges with 3/8" to 1/2" glass (10–12 mm): holds up to 110 lb (50 kg), maximum door width 36" (914 mm).
Using three hinges with 3/8" to 1/2" glass (10–12 mm): holds up to 140 lb (63 kg), maximum door width 36" (914 mm).

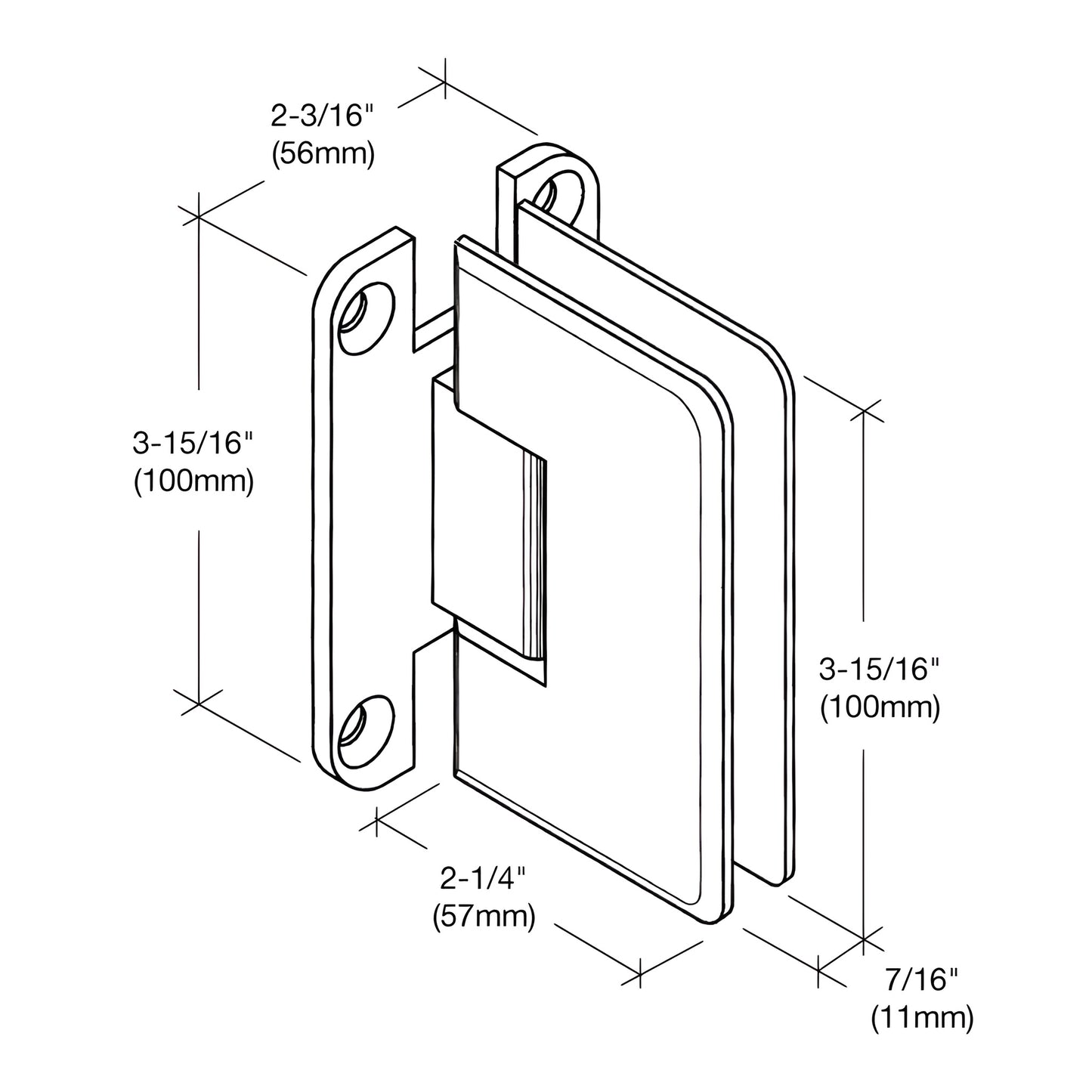

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90º in and 90º out
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required: Except C0L092 (which requires cut-out for door and two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes and custom pivot pins are available on request from the CRL Technical Sales Department.
