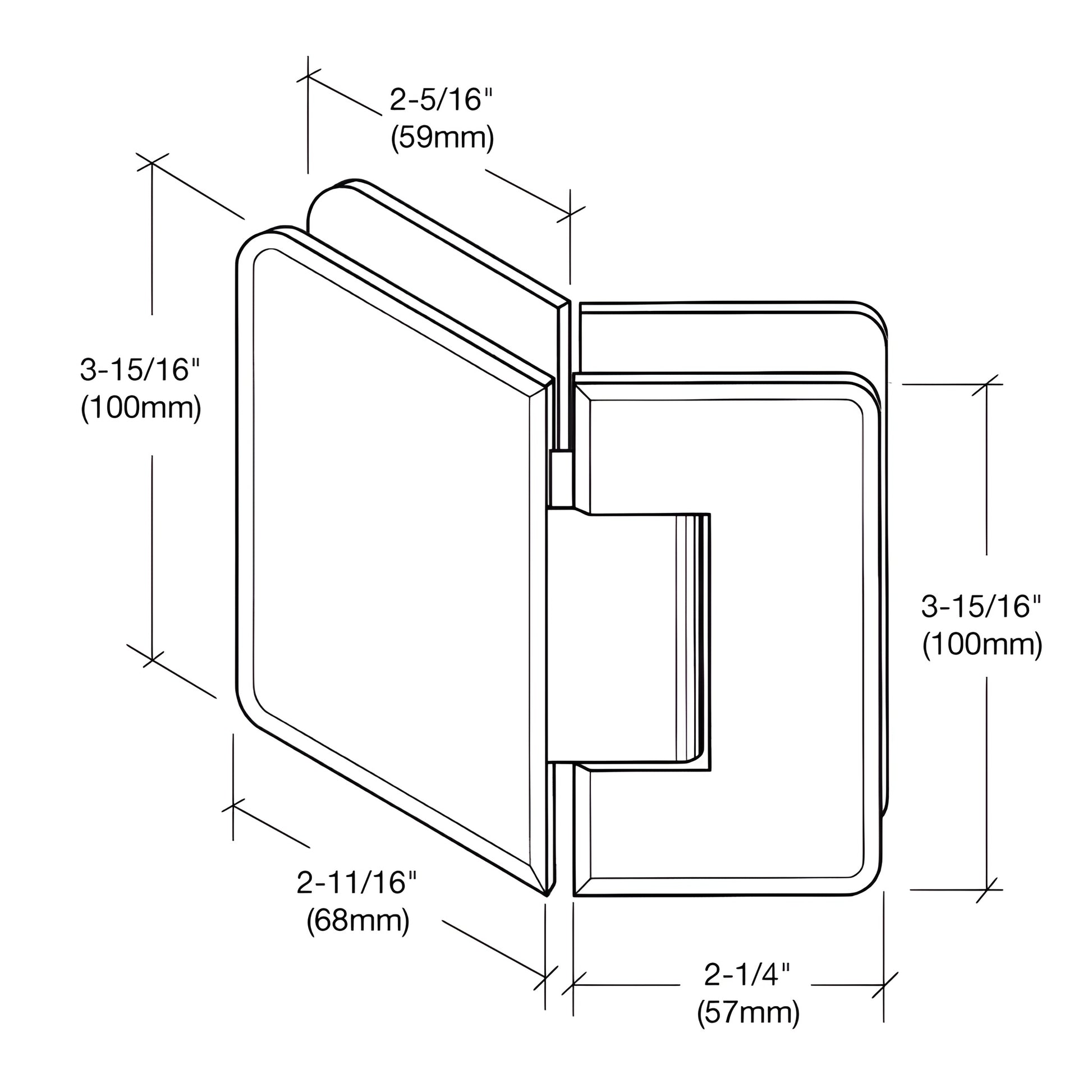

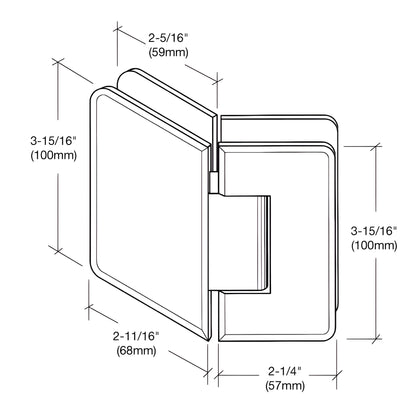

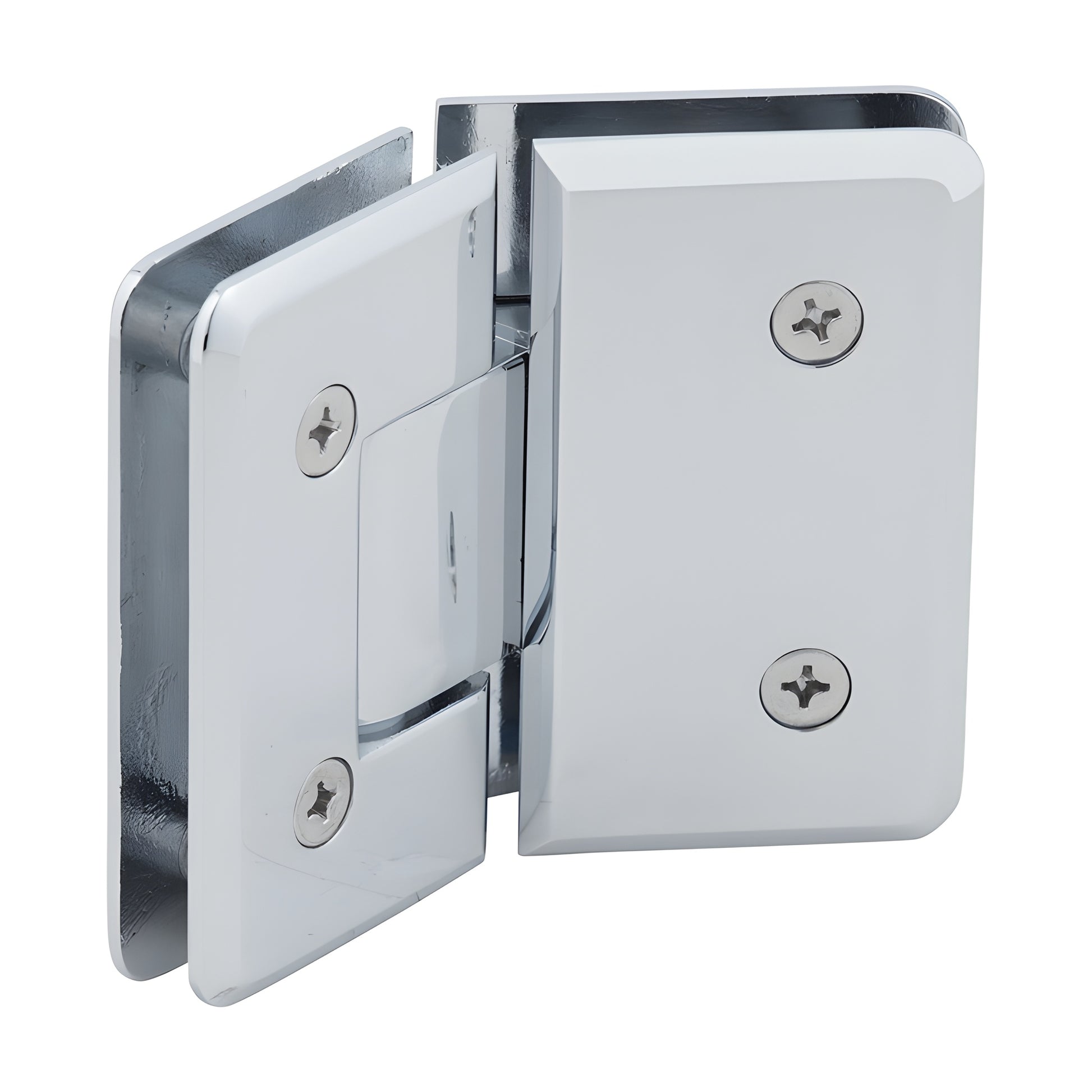

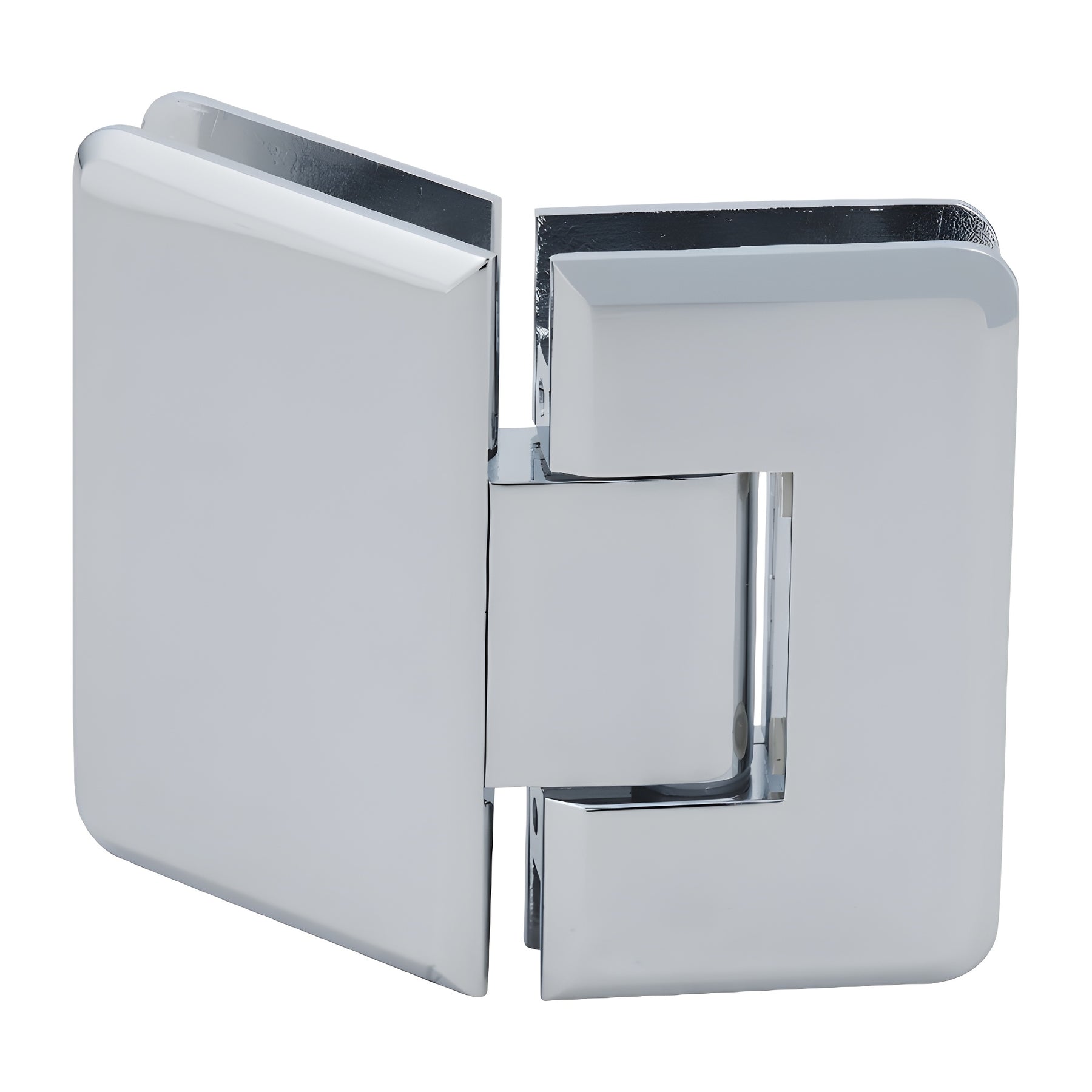

CRL Cologne 045 Polished Chrome 135° Frameless Shower Door Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several durable, decorative finishes
• 135º glass-to-glass application
• Use monolithic tempered glass

CRL Cologne Hinges (SKU: C0L045CH) combine the strength of Vienna-style hinges with radius corners and beveled edges for a sleek, modern look. Designed for wider, heavier shower doors, these solid brass shower door hinges provide reliable support where standard hinges fall short. Two internal steel pins offer mounting flexibility: leave both pins in place for CRL "mouse-ears" cut-outs for safety, or remove them for increased adjustability and compatibility with rectangular, square-cornered cut-outs (including some competitive patterns).

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin marked 90º on one side and 85º on the other. Standard models ship with the 90º side active; rotate the pin to engage the 85º side for a 5º tighter closure into the shower interior. Pre-set models are shipped with the pin set to 85º.

Custom Pivot Pin: Custom pivot pins are available to accommodate off-angle installations (specify required angle up to 45º) when the standard 5º adjustment is insufficient.

Load Capacity: Using two hinges with 3/8"–1/2" glass (10–12 mm) supports up to 110 lbs (50 kg) with a maximum door width of 36" (914 mm). Using three hinges supports up to 140 lbs (63 kg) with the same maximum width.

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass hinge body for corrosion-resistant performance
Hinge Swings: 90º in and 90º out (dual-swing)
Closing Type: Self-centering when within 15º of closed position
Cut-Out Required: Cut-out required for most models (except C0L092 which requires cut-out for door plus two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available—contact CRL Technical Sales for options.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use only. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template supplied with this hinge—CRL cut-out dimensions may differ from other manufacturers.
