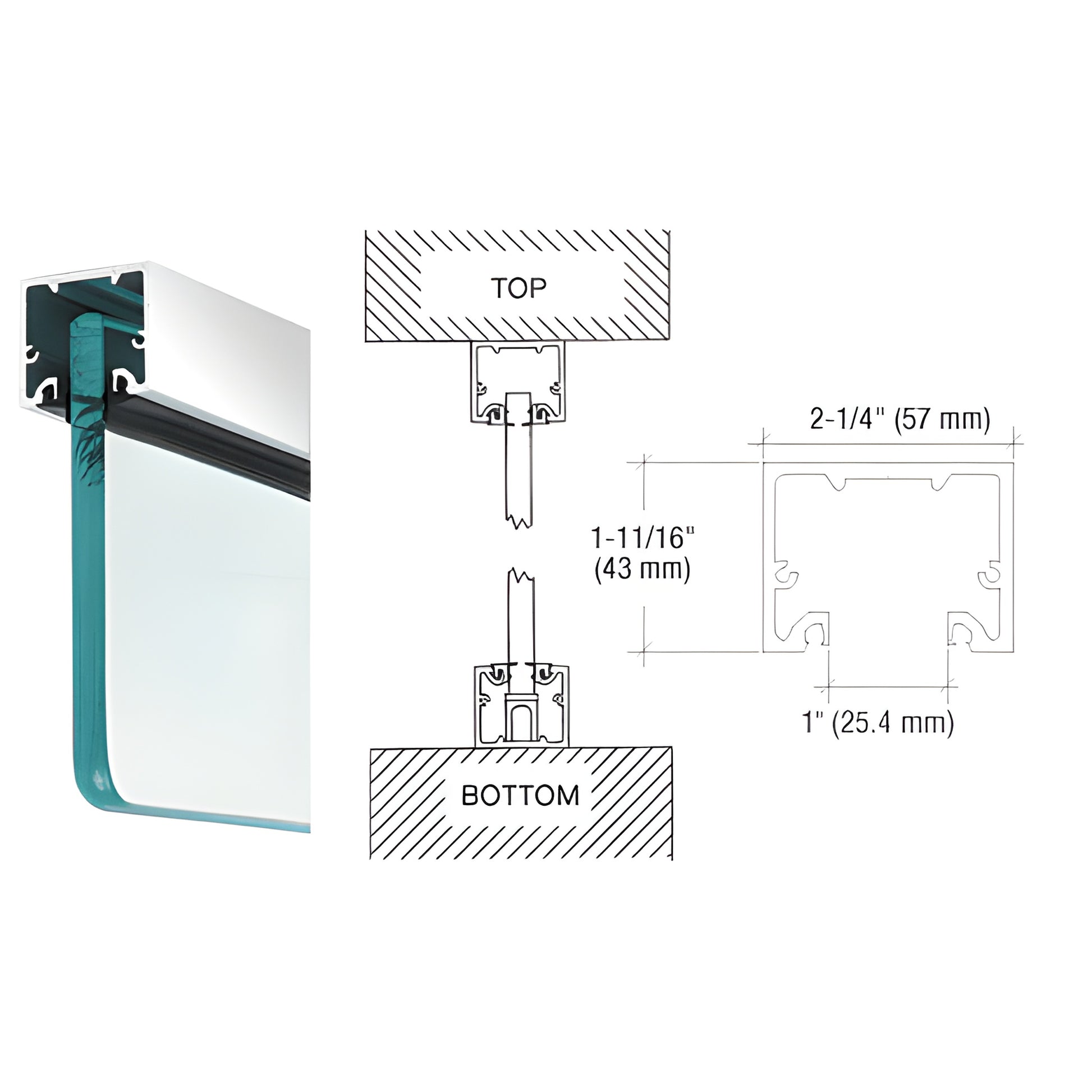

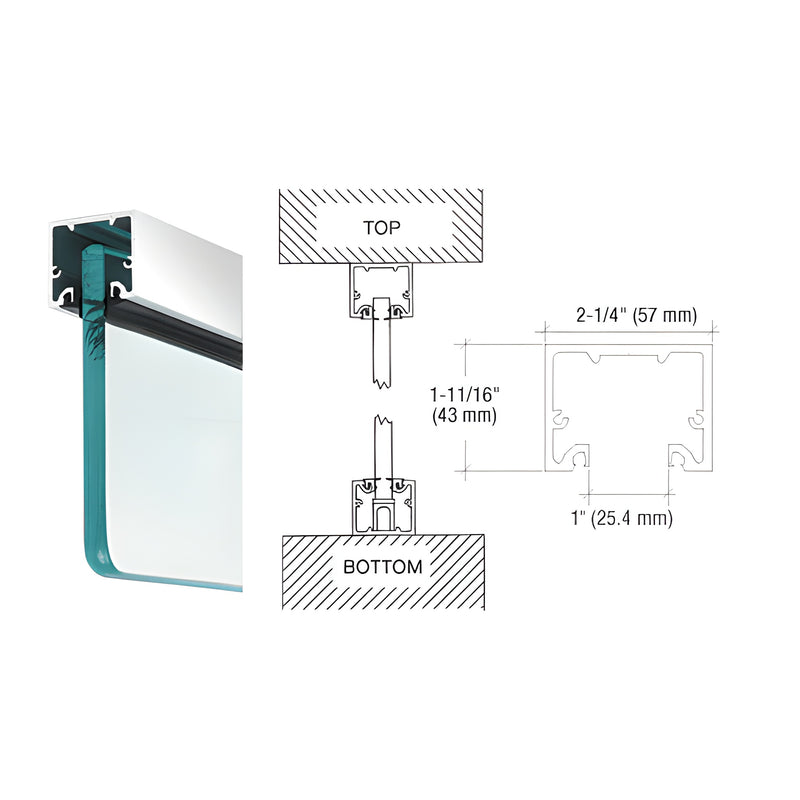

CRL Polished Stainless U-Channel w/ Roll-In Gasket for 3/4" Glass
CRL Polished Stainless U-Channel w/ Roll-In Gasket for 3/4" Glass
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# NH3PSCL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/4 in. (19 mm)
Height
1-11/16 in. (43 mm)
Length
Specify
Width
2-1/4 in. (57 mm)
Overview
- Matches width of door and sidelite rails; accepts roll-in gasket, top pivot block and flush snap-in insert for glass doors
- Offered in stock lengths, fabricated headers, or headers with side pockets for "lift and drop" panel glazing
- Special sidelite rail adapter enables a continuous sight line when used with the narrow header and sidelite rail
This CRL Wide U-Channel and Narrow Header (SKU: NH3PSCL) is engineered for three primary uses: as a U-channel matching our Sidelite and Door Rails; as a narrow header that accepts a top free-swinging pivot to secure door tops; and as an Even Sight Line System—install the fabricated narrow header across the opening, then attach the sidelite rail to the header using the 1/4" (6.4 mm) header saddle for a continuous sight line. All drilling, tapping and fabrication are completed at the factory to save installation time and eliminate field fabrication. For technical details or installation guidance, contact our Technical Sales Department.
Need specifications, pricing or lead times? Contact Technical Sales or CRL Customer Service to get a quote and support.
Specifications
CAD Drawings - dwg
