CRL EUR Series Satin Anodized Glass Door Patch Lock with Cylinder

• High-density cast body with integrated lock mechanism
• Gaskets for use with 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass
• Designed for monolithic tempered glass — ideal for frameless glass doors

The CRL European Style Patch Lock (SKU: EUR205A) installs top or bottom on single doors, mounts on the vertical edge, or secures to a jamb using the included Keeper. Use the EUR206 Sidelite Mount Keeper to attach the unit to a glass panel, or choose the optional "Easy Clean" Bottom Keeper EUR208 for easier maintenance. This patch lock is a compact, durable solution for frameless glass door security and commercial glass storefronts.


Glass Fabrication Required:

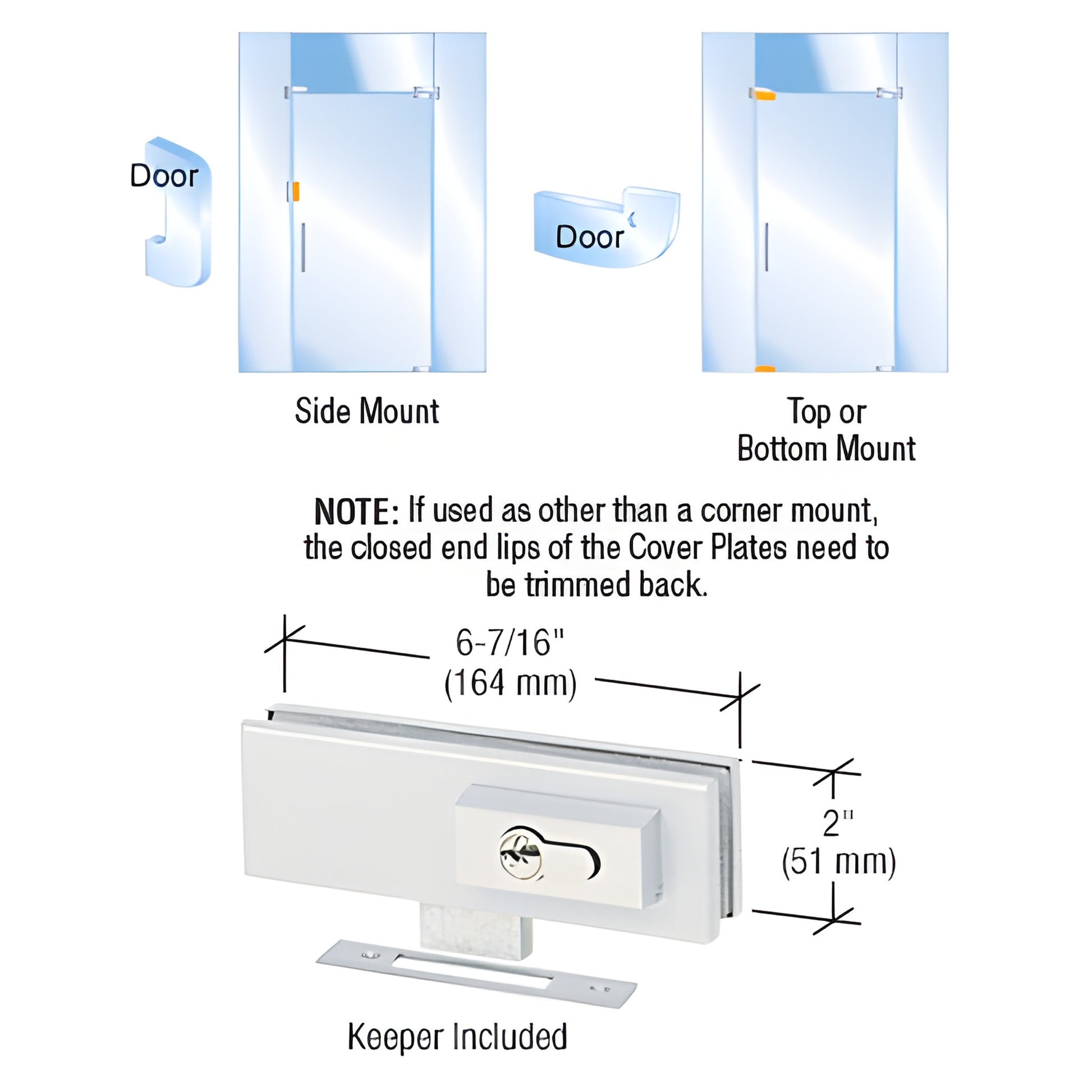

Top and Bottom Mount:
One corner notch. Side Mount: One U-cutout.

Includes: Template and instructions for accurate glass cutting and installation.

Double Door Application: For paired doors, install a Bottom Patch Lock on the inactive leaf to properly secure both doors.

Installation Note: If used other than a corner mount, the closed-end lips of the cover plates must be trimmed back for proper clearance.

Product Warning:
When not corner-mounted, trim the closed-end lips of the cover plates to avoid binding or interference.
