CRL EUR Polished Stainless Patch Lock for Glass Door with Cylinder
CRL EUR Polished Stainless Patch Lock for Glass Door with Cylinder
Regular price
$162.75 CAD
Regular price
Sale price
$162.75 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EUR205PS
Shipping Weight: 2.3 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.3 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Polished Stainless Steel
Height
2 in. (51 mm)
Overview
- High density cast body with locking mechanism
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) glass
- Designed for monolithic tempered glass

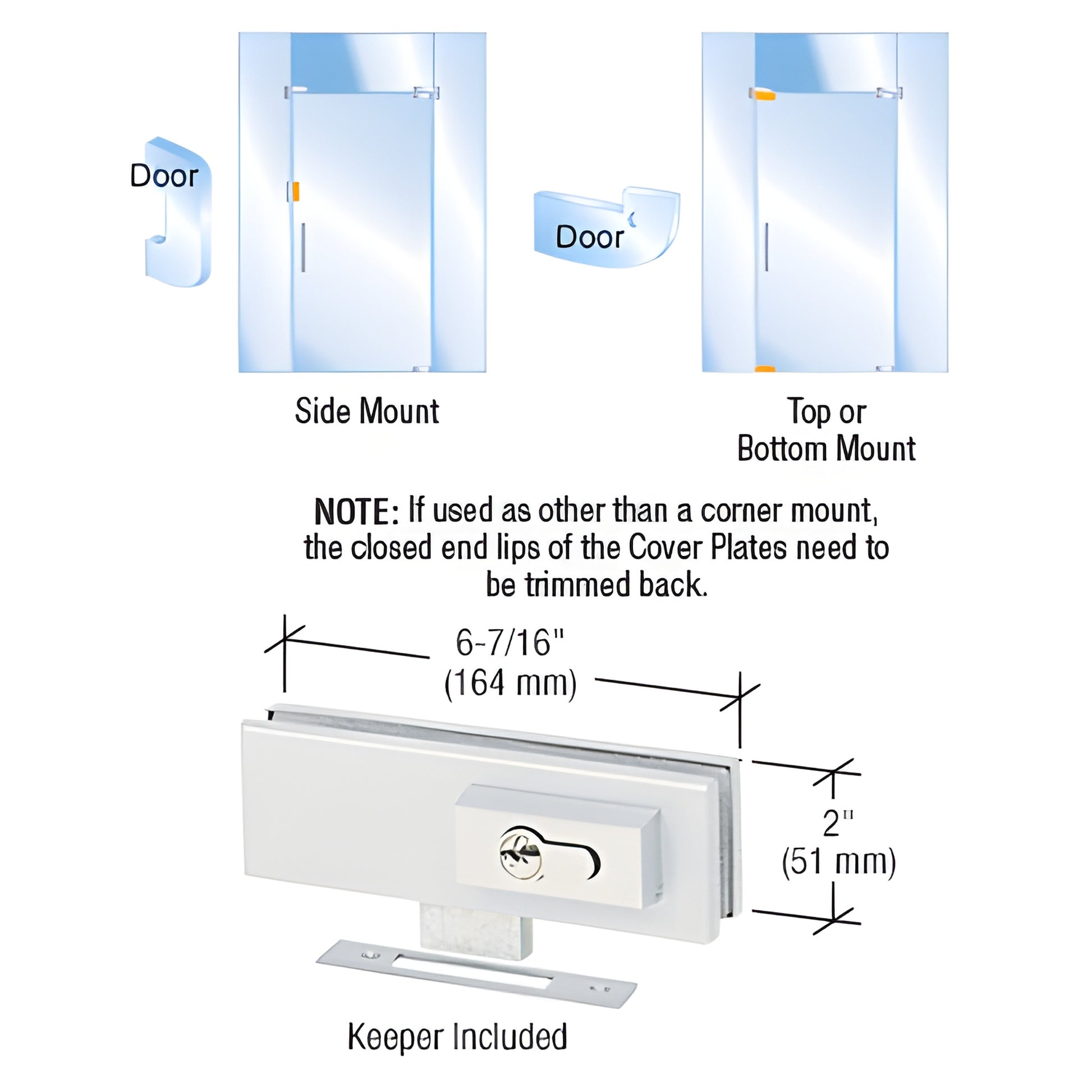

The CRL European Style Patch Lock (SKU: EUR205PS) is a versatile patch lock for frameless glass doors and glass panels, suitable for top, bottom or vertical-edge mounting. Secure it to a jamb with the supplied keeper, mount to an adjacent glass sidelite using the EUR206 Sidelite Mount Keeper, or choose the optional "Easy Clean" bottom keeper EUR208 for cleaner maintenance and many installation types.
Glass Fabrication Required:
Top and Bottom Mount:
One corner notch.
Side Mount:
One U-cutout.
Includes: Template and instructions.
Double Door Application: For double-door installations, a bottom patch lock is required on the inactive leaf to secure the door pair properly.
Installation Note: If installed other than as a corner mount, the closed-end lips of the cover plates must be trimmed back.
Product Warning:
When used as other than a corner mount, the closed-end lips of the cover plates need to be trimmed back to ensure correct operation and fit.
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the EUR205PS European style patch lock for reliable, adjustable security on frameless tempered glass doors — add to cart or contact CRL for assistance.
