CRL EUR Series Black Bronze Glass Door Patch Lock w/ Euro Cylinder

• High Density Cast Body with Lock Mechanism
• Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
• Use Monolithic Tempered Glass

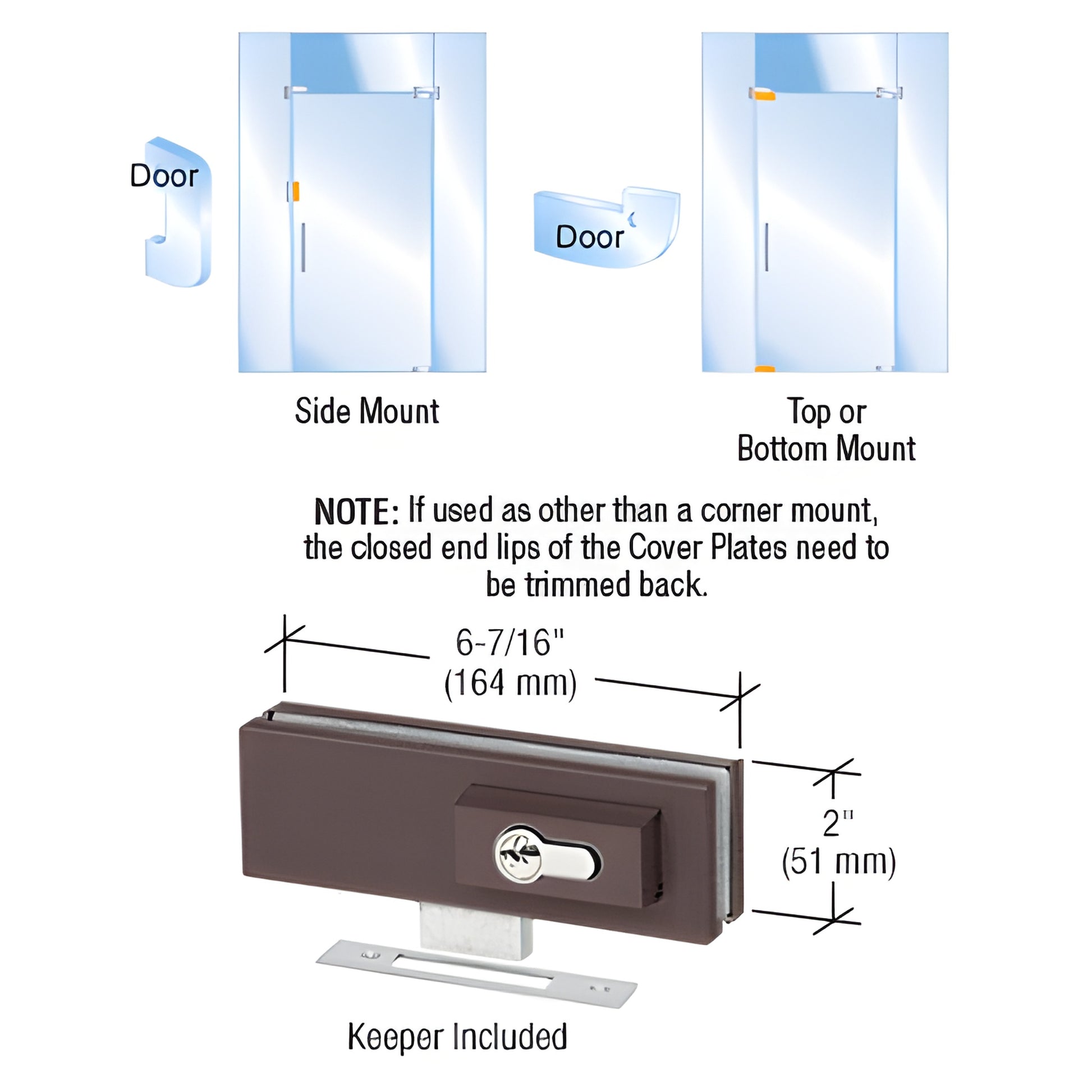

The CRL European Style Patch Lock (SKU: EUR205DU) is a versatile, heavy-duty glass door lock for commercial and residential frameless doors. Designed for top, bottom, or vertical edge mounting, it secures to a jamb with the supplied Keeper and mounts to adjacent glass panels using the EUR206 Sidelite Mount Keeper. An optional "Easy Clean" Bottom Keeper, EUR208, is available for installations that require simplified maintenance. This patch lock is optimized for monolithic tempered glass applications and built to withstand frequent use.


Glass Fabrication Required:
Top and Bottom Mount:
One Corner Notch   Side Mount: One U-Cutout

Includes: Template and Instructions

Double Door Application: For double-door installations, install a Bottom Patch Lock on the inactive leaf to properly secure the pair of doors.

NOTE: If used as anything other than a corner mount, the closed-end lips of the cover plates must be trimmed back.


Product Warning:

If used other than as a corner mount, the closed-end lips of the cover plates need to be trimmed back.
