Product Details
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
- Use Monolithic Tempered Glass

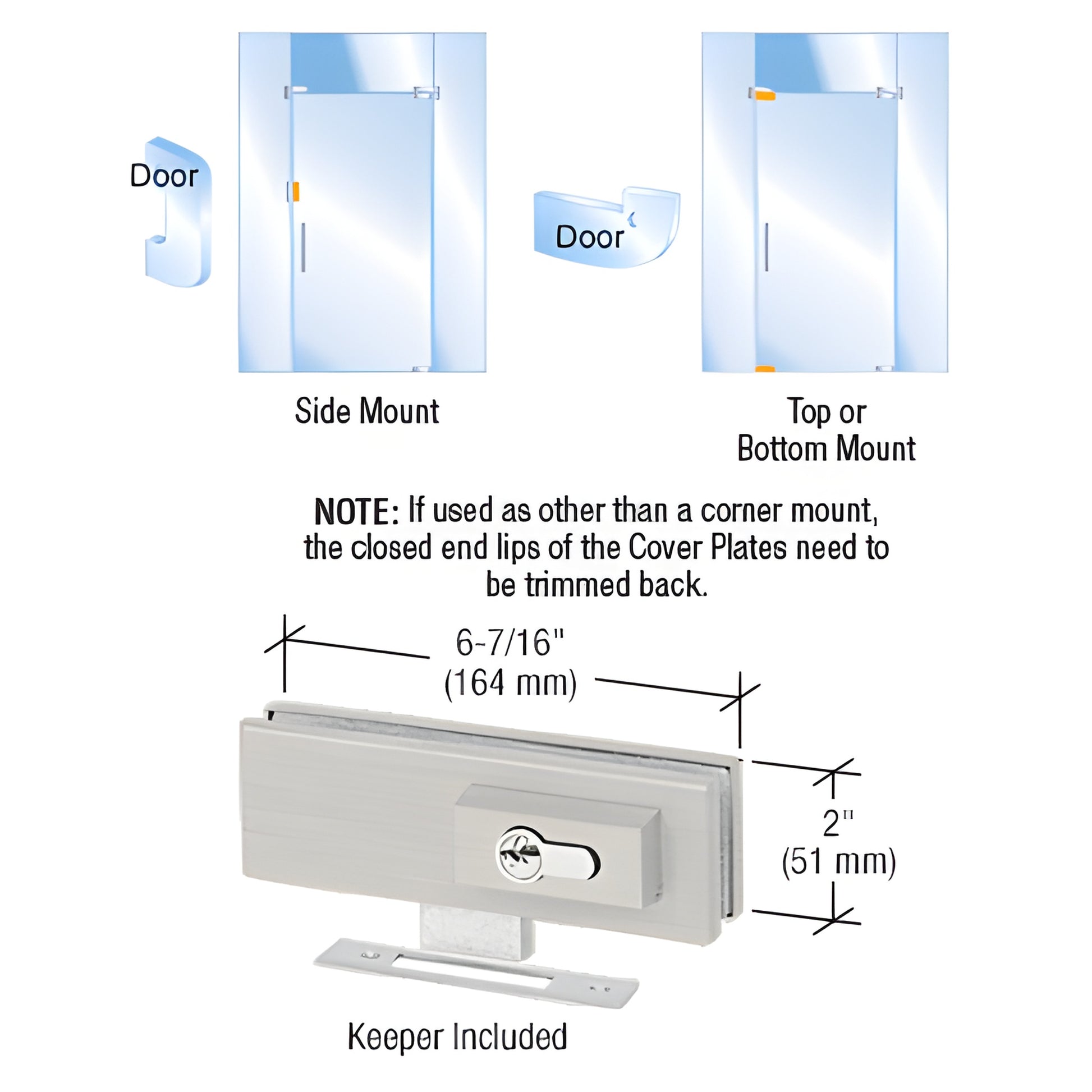

The CRL European Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using the EUR206 Sidelite Mount Keeper. Optional "Easy Clean" Bottom Keeper EUR208 is available to accommodate most types of installations.
Glass Fabrication Required:
Top and Bottom Mount:
One Corner Notch Side Mount: One U-Cutout
Includes: Template and Instructions
Double Door Application: For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
NOTE: If used as other than a corner mount, the closed end lips of the Cover Plates need to be trimmed back.
Product Warning:
If used as other than a corner mount, the closed end lips of the Cover Plates need to be trimmed back.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
