CRL Euro Series Matte Black Complete Patch Lock with Cylinder

• High-density cast body with integrated lock mechanism
• Includes gaskets for 3/8" or 1/2" (10 or 12 mm) glass
• Designed for monolithic tempered glass

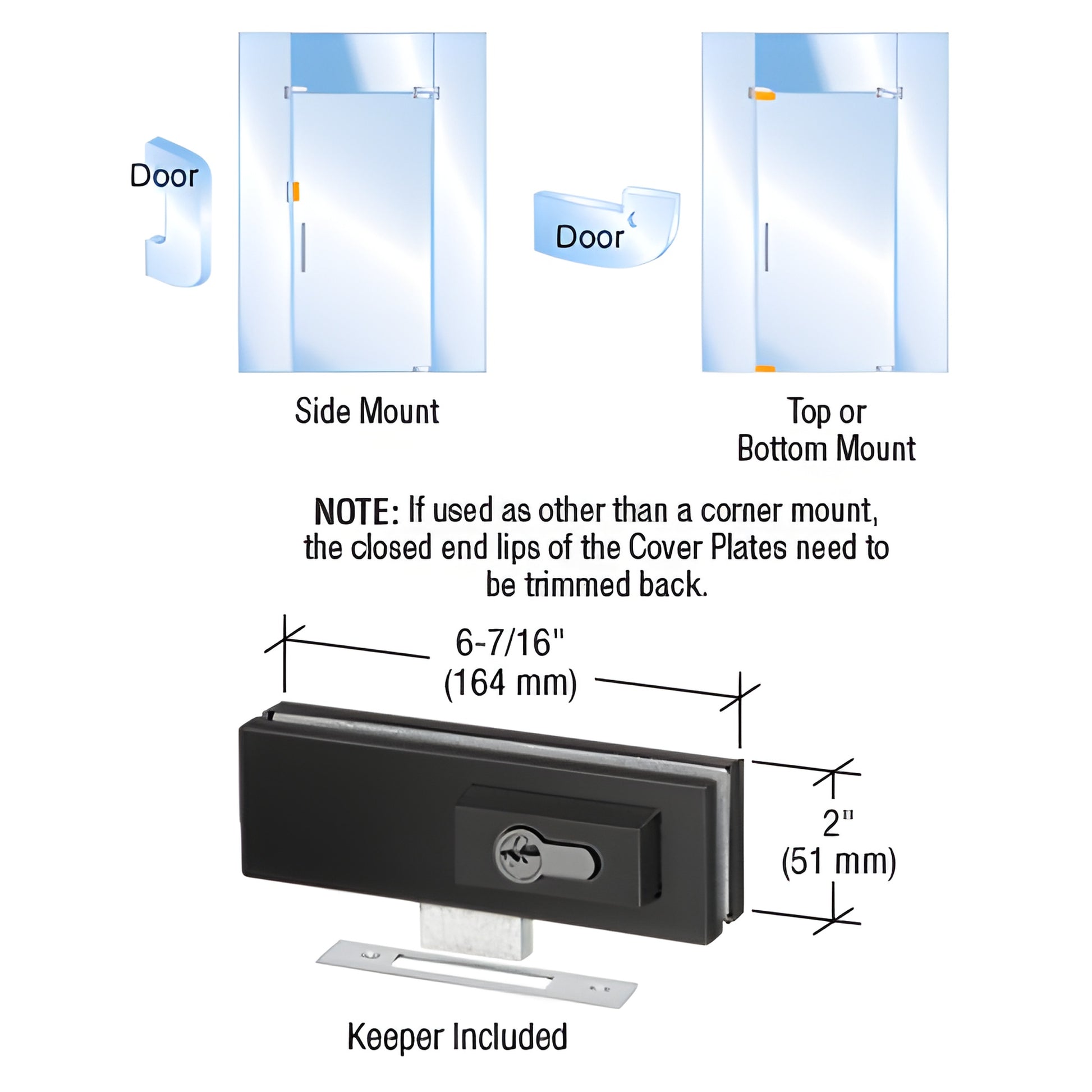

The CRL European Style Patch Lock (SKU: EUR205MBL) mounts top or bottom of glass doors, or on the vertical edge and secures to a jamb using the supplied Keeper. For sidelites, use the EUR206 Sidelite Mount Keeper. An optional “Easy Clean” Bottom Keeper (EUR208PS) is available to suit most installations. Ideal for frameless glass door hardware and commercial glass door applications.

Glass Fabrication Required:
Top and Bottom Mount: One corner notch. Side Mount: One U-cutout.

Includes: Template and instructions for glass door installation.

Double Door Application: For double doors, a Bottom Patch Lock is required on the inactive leaf to properly secure the pair.

Installation Note: If used other than a corner mount, trim back the closed-end lips of the cover plates prior to installation.


Product Warning:

When not mounted in a corner position, cover plate lips must be trimmed back to avoid interference with operation.
