CRL Satin Chrome 1/2" Glass Edge Grip Clamp
CRL Satin Chrome 1/2" Glass Edge Grip Clamp
Regular price
$35.92 CAD
Regular price
Sale price
$35.92 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# EG12SC
Shipping Weight: 4.64 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 4.64 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1-1/4 in. (31.8 mm)
Finish/Color
Satin Chrome
Glazing Thickness
1/2 in. (12 mm)
Height
1-3/16 in. (30.2 mm)
Material
Brass
Overview
- For 1/2" (12.7 mm) material thickness
- No drilling required in glass or panel materials — protects the visible face
- Fits corners and edges of panels for discrete mounting
- Supplied with EGCS socket head cap screw
CRL's Edge Grips (SKU: EG12SC) provide flexible, no-drill attachment for decorative panels and signage. The Edge Grip holds 1/2" panels to walls or substrates without making holes in the face material, enabling quick installation and easy adjustment. The 1-1/4" (32 mm) diameter Edge Grips are available in brass, chrome, satin chrome, 316 brushed stainless, and gun metal finishes and are compatible with CRL standoffs — ideal for glass edge grip and no-drill glass panel fastener applications. Use Edge Grips at the top, bottom, and sides of heavier panels for maximum support.
NOTE: To attach the Edge Grip directly to a substrate, use Cat. No. 12X112PHPSMS (No. 12 x 1-1/2" pan head Phillips sheet metal screw). Screws should be installed into wood blocking where possible. Edge Grips are recommended for rectangular or square panels only.

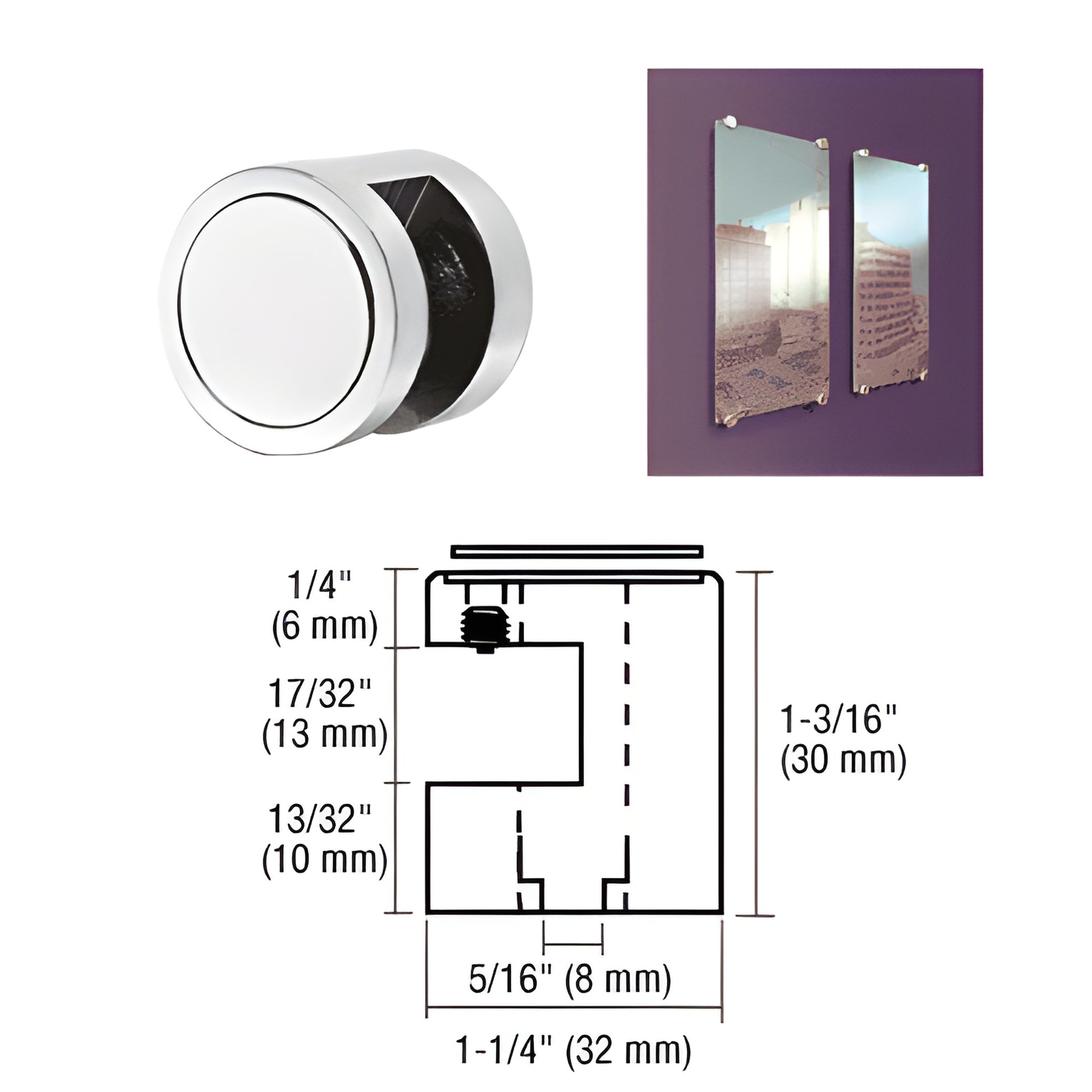

Edge Grip Specs:
Diameter: 1-1/4" (32 mm)
EG14BS Length: 1-1/16" (27 mm)
EG38 Length: 1-1/8" (28.6 mm)
EG12 Length: 1-3/16" (30.1 mm)
Replacement cover disks are available for repairs or replacements.
Product Warning:
CRL recommends using Edge Grips at the top, bottom, and sides of heavier panels for maximum support.
Call or order online now to specify finish and quantity.
