CRL Sky White AWS 36" 90° Rectangular 2" x 2-5/8" Corner Post Kit
CRL Sky White AWS 36" 90° Rectangular 2" x 2-5/8" Corner Post Kit
Regular price
$161.14 CAD
Regular price
Sale price
$161.14 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# S36CRKW
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
Corner
Degree
90
Depth
36 in. (914 mm)
Finish/Color
Sky White
Glazing Thickness
1/4 in. To 3/8 in. Glass (Dry Glazed) (6 mm To 10 mm Glass (Dry Glazed))
Length
1/2 in. Glass (Wet Glazed) (12 mm Glass (Wet Glazed))
Material
Aluminum
Profile
Rectangular
Width
2-5/8 in. (67 mm)
Overview

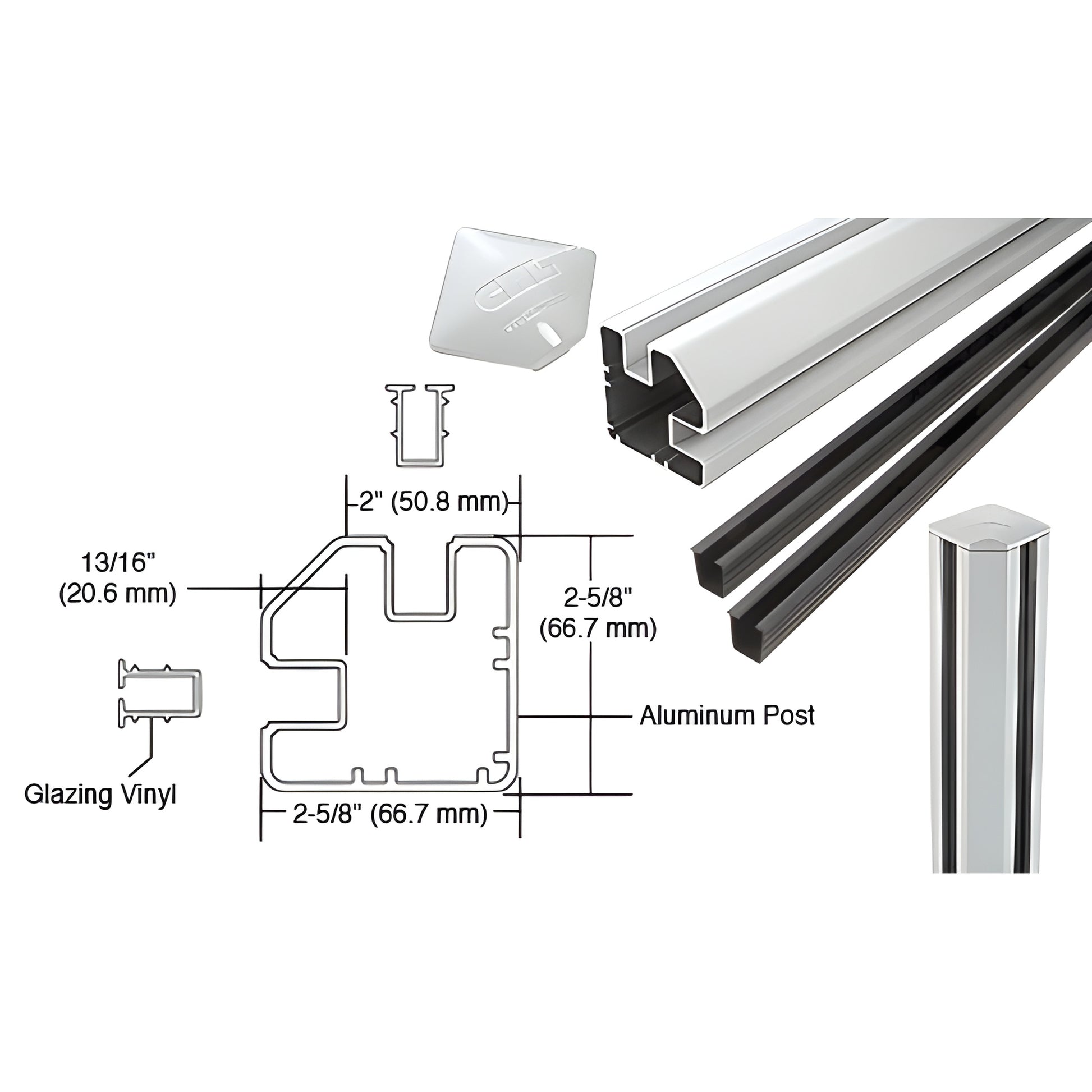

- Standard kit includes post, top cap, and vinyl
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass when dry-glazed with vinyl
- Accommodates 1/2" (12 mm) glass when wet-glazed
- Available in several attractive colors; custom colors available upon request
These CRL Kits (SKU: S36CRKW) are designed for fabricating posts to join two panels at 90 degrees — ideal for glass partition systems and 90-degree glass corner installations. They accept 1/4"–3/8" panels when dry-glazed with vinyl and 1/2" panels when wet-glazed. Available in multiple finishes, with custom color matching upon request for painted orders.
NOTE: Maximum post spacing is 72" (1.83 m) on center. Maximum panel area should not exceed 24 square feet per panel.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
Order the S36CRKW 90-degree post kit today or contact CRL Customer Service for custom color and shipping details.
Specifications
CAD Drawings - pdf
