CRL Vernon 8060 Brushed Satin Nickel All-Glass Hinge Hold-Open

• For self-closing glass doors 5/16", 3/8" and 1/2" (8, 10 and 12 mm) thick
• Designed for interior glass doors (not for shower doors)
• Aluminum body available in multiple finishes
• Alternative to floor closers and patch fittings for all-glass installations
• Use with monolithic tempered glass

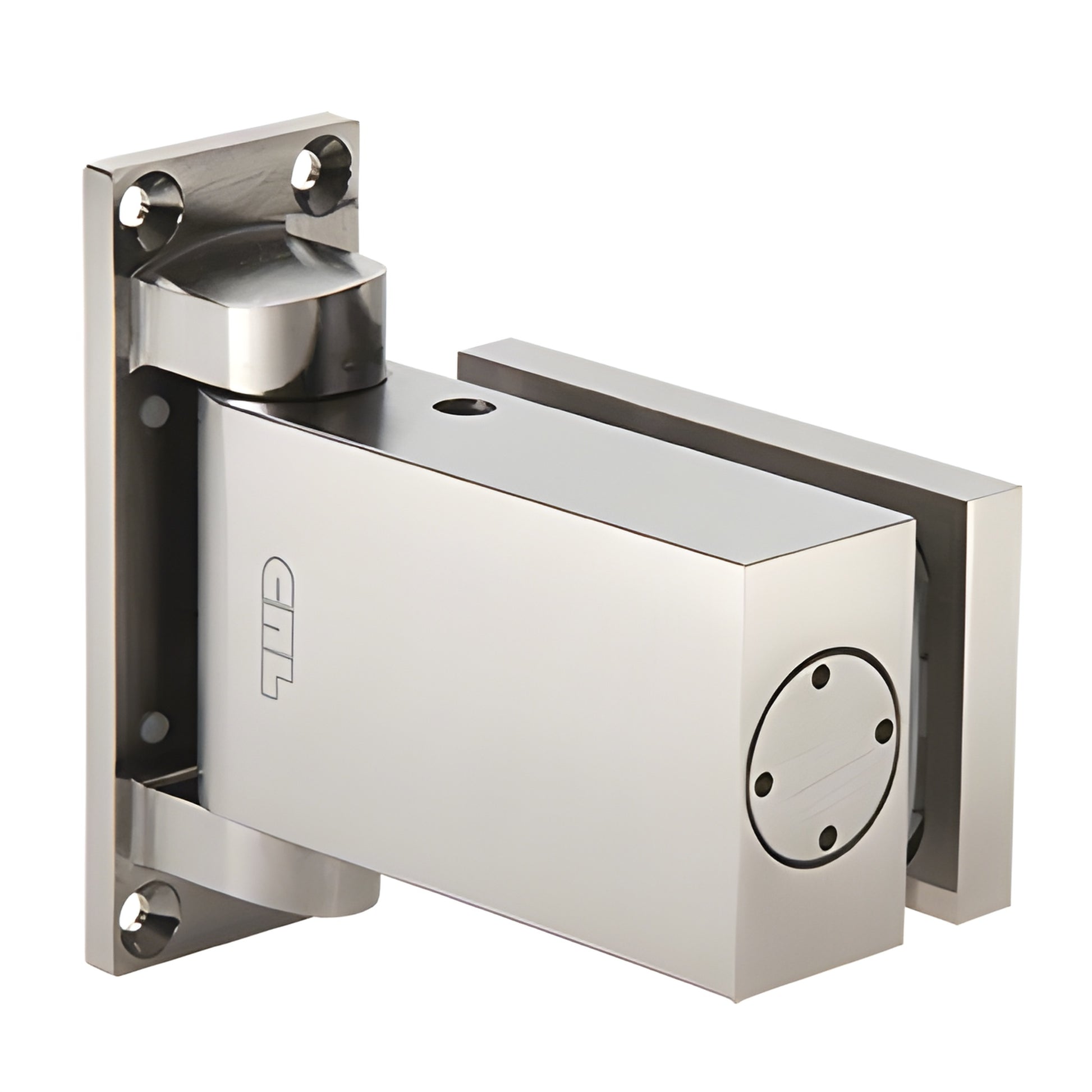

This one-way swinging wall-mount hinge (SKU: H8060SN) is ideal for hermetic, self-closing glass door applications. It swings one way up to 90° with positive stops at 0° and 90°, and features an adjustable closing speed to fine-tune operation. Recommended for doors up to 39" (1 m) wide; maximum capacity using two hinges is 220 lbs. (100 kg).

The Oil Dynamic Hinge blends automatic mechanical action with hydraulic control to provide smooth, reliable automatic closing without a floor-mounted or overhead closer. That makes it an excellent retrofit solution when you want an all-glass interior door without extensive floor or header modification.

Properly installed, two Oil Dynamic Hinges support 5/16", 3/8" or 1/2" (8, 10 or 12 mm) thick tempered glass doors up to 39" (1 m) wide and up to 220 lbs. (100 kg). A built-in control valve adjusts closing speed. The hinge is ambidextrous and includes positive stops at 0° and 90° for predictable operation.

The hinge features an aluminum body in Wall-Mount and Glass-to-Glass configurations and has passed rigorous durability testing (over 1 million cycles) for long-lasting service.

SPECIFICATIONS:
Glass Thickness Range: 5/16", 3/8" and 1/2" (8, 10 and 12 mm)
Construction: Aluminum
Hinge Swings: 90° inwards (one-way)
Closing Type: Automatic closing from 0° to 80° (adjustable)
Special Feature: Holds open at 90°; adjustable closing speed
Cut-Out Required
Includes: Snap-in molded gaskets for 3/8" (10 mm) and 1/2" (12 mm) glass; hex screws
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)

Product Warning:

Do not use more than two hinges on one door. For uses beyond the intended application, obtain approval from the CRL Technical Sales Department. Use only the template included with the hinge—CRL cut-out dimensions may differ from other brands.
