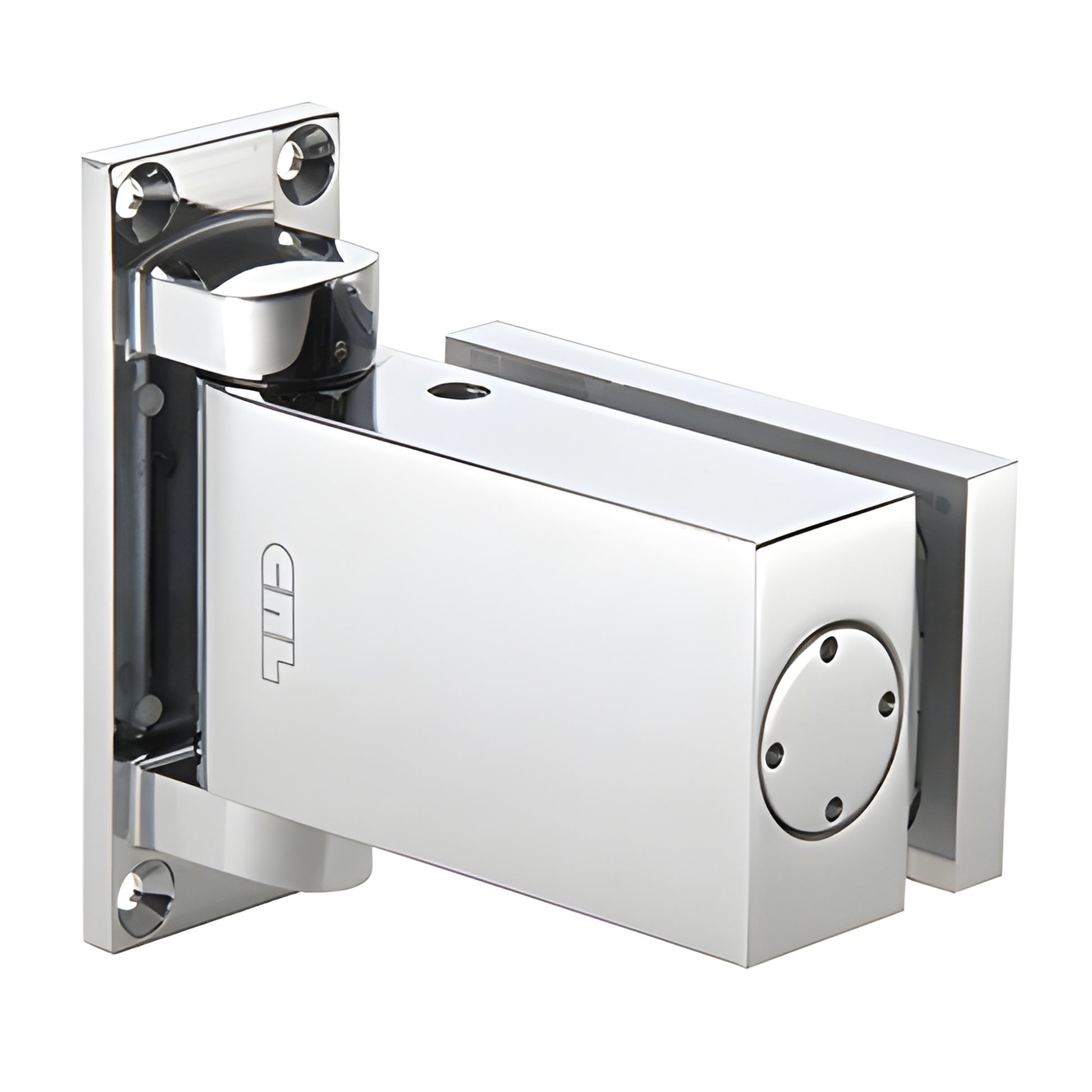

CRL Vernon Oil Dynamic 8060 Brite Chrome Glass Door Hinge Hold-Open

• For self-closing interior glass doors 5/16", 3/8" and 1/2" (8, 10 and 12 mm) thick
• Wall-mount one-way swinging hinge for hermetic closing (not for shower doors)
• Aluminum body available in multiple finishes
• Great alternative to floor closers and patch fittings for all-glass doors
• Works with monolithic tempered glass

The H8060CH One-Way Swinging Wall Mount Oil Dynamic Hinge is engineered for reliable self-closing performance on interior glass doors. It swings one way a full 90° with positive stops at 0° and 90°, and features an adjustable control valve to set the closing speed. Use two hinges for doors up to 39" (1 m) wide and a combined maximum weight of 220 lbs (100 kg).


The Oil Dynamic Hinge blends automatic mechanical hinge convenience with hydraulic door-closer performance, letting you install a self-closing all-glass door without floor-mounted or overhead hardware—ideal for retrofit projects and minimalist frameless glass door designs. Ambidextrous installation and tested durability (over 1 million cycles) make it a dependable choice for commercial and residential interior applications.

Properly mounted, two Oil Dynamic Hinges support 5/16", 3/8" or 1/2" (8, 10 or 12 mm) tempered glass. A single control valve adjusts closing speed; positive stops at 0° and 90° hold the door open at 90°. Do not use more than two hinges per door.

Available in Wall Mount and Glass-to-Glass configurations with an aluminum body and multiple finish options. SKU: H8060CH.

SPECIFICATIONS:
Glass Thickness Range: 5/16", 3/8" and 1/2" (8, 10 and 12 mm)
Construction: Aluminum
Hinge Swings: 90° inward (one-way)
Closing Type: Automatic closing from 0° to 80° (adjustable)
Special Feature: Holds open at 90°; adjustable closing speed
Cut-Out Required
Includes: Snap-in molded gaskets for 3/8" (10 mm) and 1/2" (12 mm) glass; hex screws
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)

Product Warning:

Do not use more than two hinges on one door. For applications other than intended use, obtain approval from the CRL Technical Sales Department. Use only the included template—cut-out dimensions for CRL hinges may not match other brands.
