Product Details
- For Self-Closing Glass Doors from 3/8" to 1/2" (10 to 12 mm) Thick
- Designed for Use on Interior Doors (Not for Shower Doors)
- Aluminum Body in Your Choice of Several Finishes
- A Great Alternative to Floor Closers and Patch Fittings
- Use Monolithic Tempered Glass

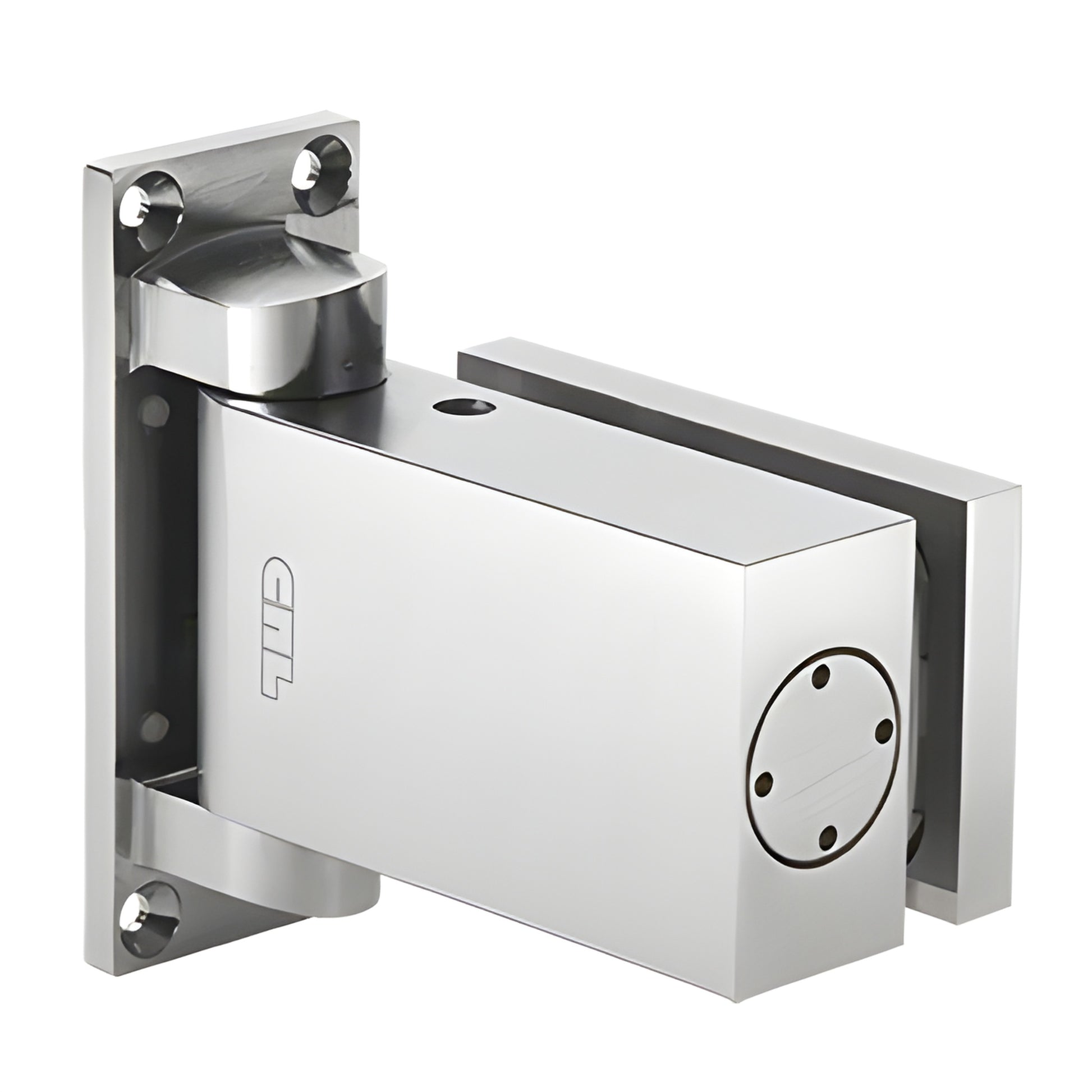

This One Way Swinging Wall Mount Hinge Ideal for hermetic closing. Swings one way a full 90 degrees, with stops at 0 degree and 90 degree. Closing speed can be adjusted. For doors up to 39" (1 m) wide. Maximum weight per two hinges is 220 lbs. (100 kg).
The Oil Dynamic Hinge represents the evolution and the synthesis between automatic mechanical hinges and hydraulic door closers. Designed for use on interior doors (not for Shower Doors) leading into the bathroom area, Oil Dynamic allows you to design a self-closing door without the need of a floor-mounted or overhead closing device. This gives you the advantage of being able to install an 'all-glass' door in an existing opening without the need for extensive retrofitting of hardware into the floor or overhead.
Properly mounted, two Oil Dynamic Hinges will support a 5/16", 3/8" or 1/2" (8, 10 or 12 mm) thick glass door up to 39" (1 m) in width and weighing up to 220 lbs. (100 kg). (Do not use more than two hinges.) A control valve lets you adjust the hinge to the desired closing speed. And Oil Dynamic is ambidextrous, with positive stops at 0 and 90 degrees, giving you even more design freedom.
The Oil Dynamic Hinge features an aluminum body in distinct configurations for Wall Mount and Glass-to-Glass applications. Oil Dynamic has been subject to strict testing (over 1 million cycles), assuring long lasting service.
SPECIFICATIONS:
Glass Thickness Range: 5/16", 3/8" and 1/2" (8, 10 and 12 mm)
Construction: Aluminum
Hinge Swings: 90º Inwards
Closing Type: Automatic Closing From 0 to 80 Degrees
Special Feature: Holds Open at 90 Degrees; Adjustable Closing Speed.
Cut-Out Required
Includes: Snap-In Molded Gaskets for 3/8" (10 mm) and 1/2" (12 mm) Glass; Hex Screws
Maximum Capacities Using Two Hinges: Door Width: 39" (1 m); Door Weight: 220 lbs. (100 kg)
Product Warning:
Do not use more than two hinges on one door. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Technical Sales Department. Use only the template included with our hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
