CRL Vernon Oil Dynamic 180° Satin Anodized Shower Door Hinge

• For self-closing glass doors 5/16" to 9/16" (8 to 13.52 mm) thick
• Aluminum body available in three finishes: Brite Chrome, Brushed Satin, Satin Anodized
• Hold-open or no-hold-open models
• Adjustable closing speed via control valve
• Ideal alternative to floor closers and patch fittings for interior all-glass doors

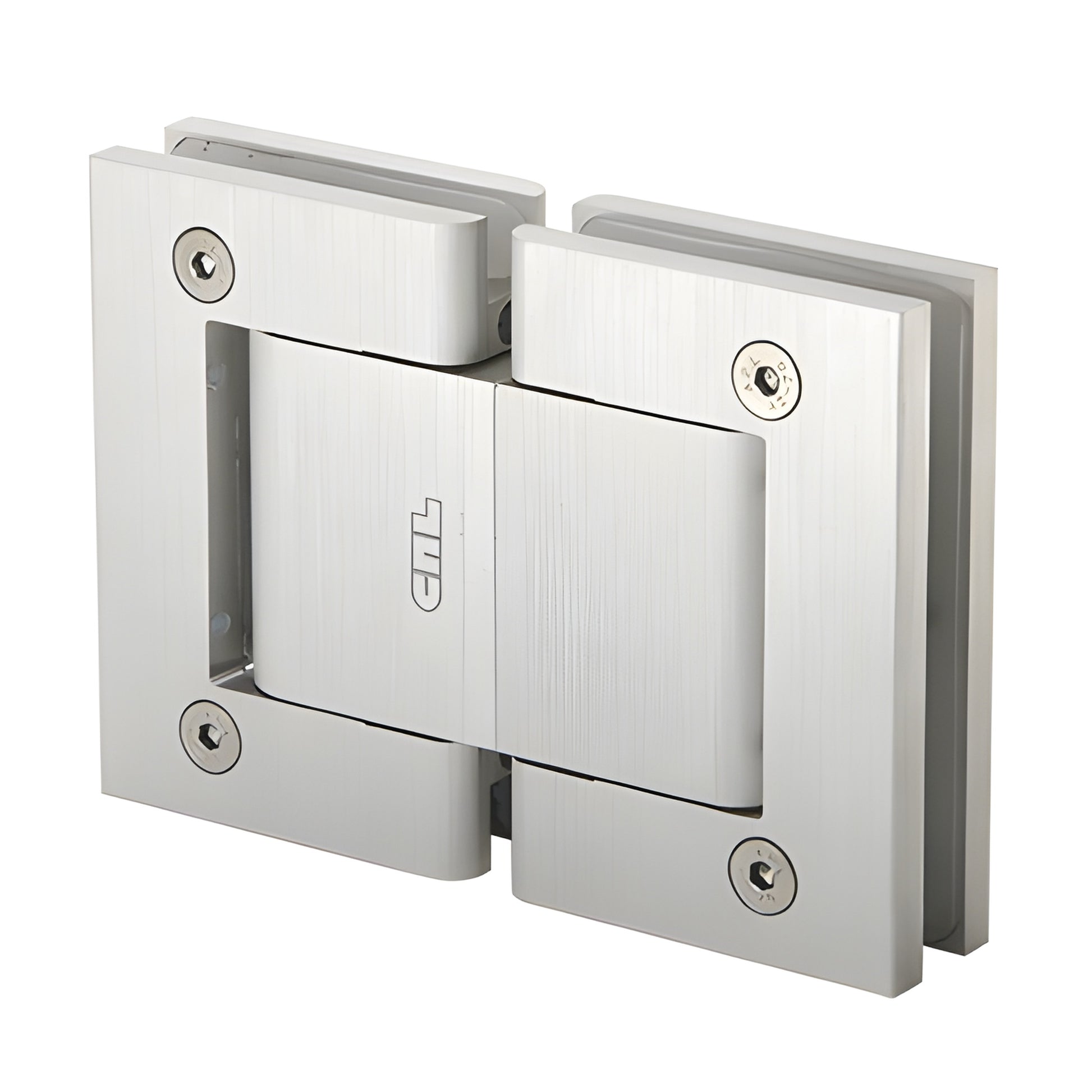

CRL 180 Degree Glass-to-Glass Hinge (SKU: H8215SA) is a durable oil-dynamic, self-closing glass door hinge designed for interior applications (not for shower doors). The hinge swings 90° in and out with a positive stop at 0°. Closing speed is adjustable so you can fine-tune the door action. Use two hinges for doors up to 39" (1 m) wide and a maximum combined weight of 176 lbs (80 kg).

This hinge bridges automatic mechanical hinges and hydraulic closers, enabling an all-glass self-closing door installation without floor-mounted or overhead devices—perfect for retrofits where minimal modification is desired. Oil Dynamic hinges are ambidextrous and have been tested to over 1 million cycles for long-lasting performance.

Features an aluminum body with configurations for Wall Mount and Glass-to-Glass installations. Includes snap-in molded gaskets for 5/16"–9/16" (8–13.52 mm) glass and hex screws. A cut-out is required for installation; use only the template provided with the hinge.

SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Available Finishes: Brite Chrome, Brushed Satin, Satin Anodized
Hinge Swings: 90° inwards and outwards (except model 31M8060 — one-way swing)
Closing Type: Automatic closing from 0° to 80° with adjustable speed
Includes: Snap-in molded gaskets for 5/16"–9/16" (8–13.52 mm) glass; hex screws
Maximum Capacities (using two hinges): Door width: 39" (1 m); Max door weight: 176 lbs (80 kg)

Product Warning:
Do not use more than two hinges on one door. If hinges are to be used for other than their intended purpose, obtain approval from the CRL Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may not match other brands.
