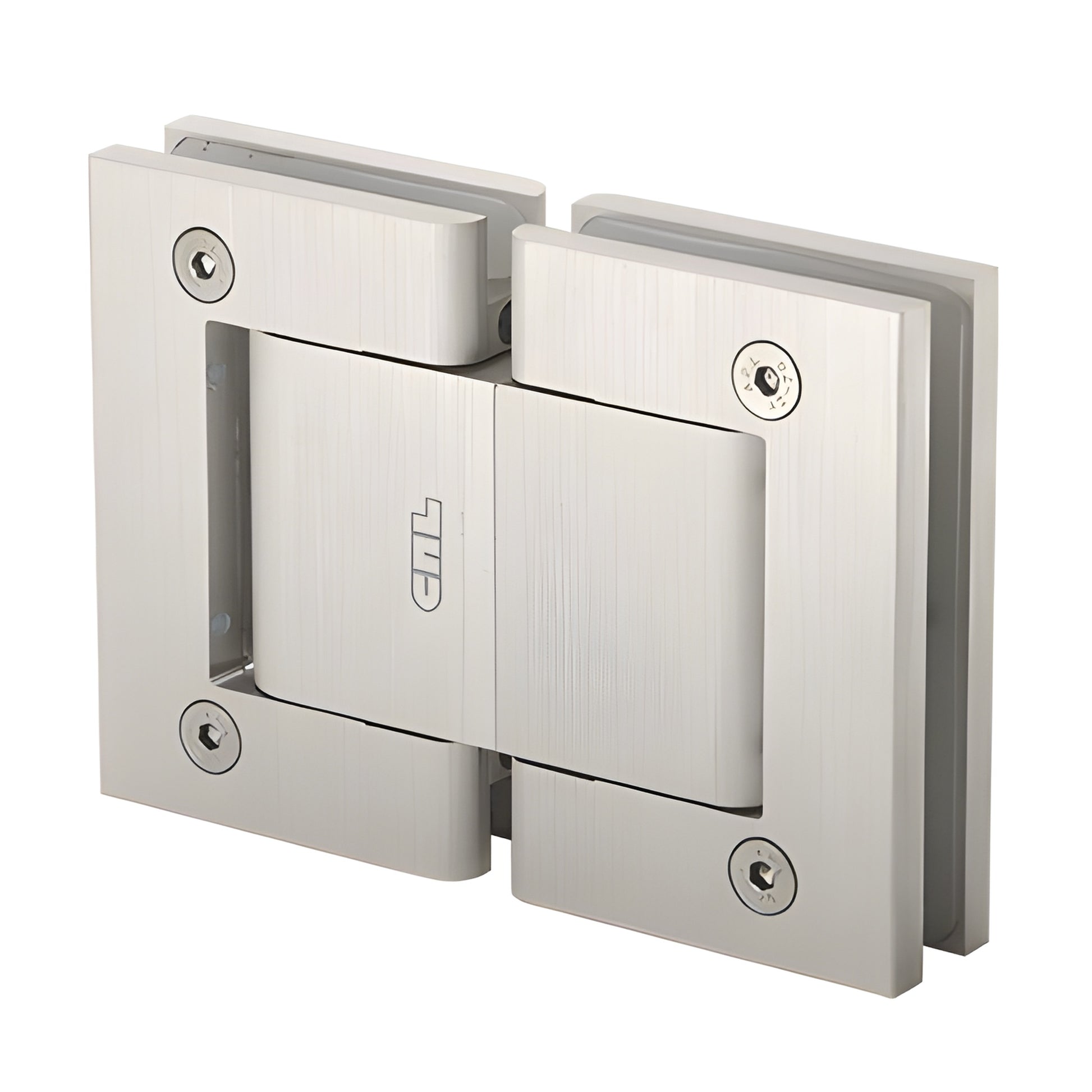

CRL Vernon Oil Dynamic 180° Satin Nickel Glass Hinge No Hold-Open

• SKU: H8215SN
• Self-closing glass door hinge for tempered glass 5/16" to 9/16" (8 to 13.52 mm) thick
• Aluminum body in three finishes: Brite Chrome, Brushed Satin, Satin Anodized
• Available in Hold-Open and No Hold-Open models
• Adjustable closing speed via control valve
• Ambidextrous design — installs for left or right swing
• Durable alternative to floor closers and patch fittings for interior glass doors

This CRL 180 Degree Glass-to-Glass Hinge (Oil Dynamic) is a compact self-closing hinge engineered for interior glass doors (not for shower doors). The hinge swings 90° in and out with a stop at 0° and features an adjustable closing speed—ideal for retrofit installations where floor- or overhead-mounted closers are impractical. For doors up to 39" (1 m) wide; maximum capacity per two hinges is 176 lbs. (80 kg).

The Oil Dynamic hinge blends mechanical and hydraulic closing technologies to create a reliable automatic-closing solution for all-glass doors. It lets you install a self-closing glass door without extensive floor or overhead hardware modifications, making it a preferred glass-door hinge for bathrooms, offices, and interior partitions.

When properly mounted, two Oil Dynamic hinges support a single glass door 5/16" to 9/16" (8 to 13.52 mm) thick, up to 39" (1 m) wide and 176 lbs. (80 kg). A control valve allows precise adjustment of closing speed. Tested for long life (over 1 million cycles), the hinge is available in configurations for Wall Mount and Glass-to-Glass applications.

SPECIFICATIONS:
Glass Thickness Range: 5/16" to 9/16" (8 to 13.52 mm)
Construction: Aluminum
Hinge Swings: 90° inwards and outwards (except 31M8060 model — one-way swing)
Closing Type: Automatic closing from 0° to 80°
Cut-Out Required
Includes: Snap-in molded gaskets for 5/16"–9/16" (8–13.52 mm) glass; hex screws
Maximum Capacities Using Two Hinges: Door width: 39" (1 m); Max door weight: 176 lbs. (80 kg)

Product Warning:

Do not use more than two hinges on one door. If hinges are to be used for other than their intended purpose, obtain approval from the CRL Technical Sales Department. Use only the
