CRL
Replacement 3/8" 2620 Non-Tilt Spiral Window Balance w/ FS343 Clip
Replacement 3/8" 2620 Non-Tilt Spiral Window Balance w/ FS343 Clip
Regular price
$30.29 CAD
Regular price
Sale price
$30.29 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FR2623
Shipping Weight: 5.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 5.6 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Bushing Color
Red
Door Width Range Interior
0-42
Guides Attached
Yes
Heaviest Vent Weight Range
25
Series
FR Series Balances
Tube Diameter
3/8
Tube Length
26
Window Type
Non-Tilt
Overview
- Includes factory-installed end clip FS343
- For sash load weights up to 25 pounds
- Industry standard 3/8" (10 mm) tube diameter

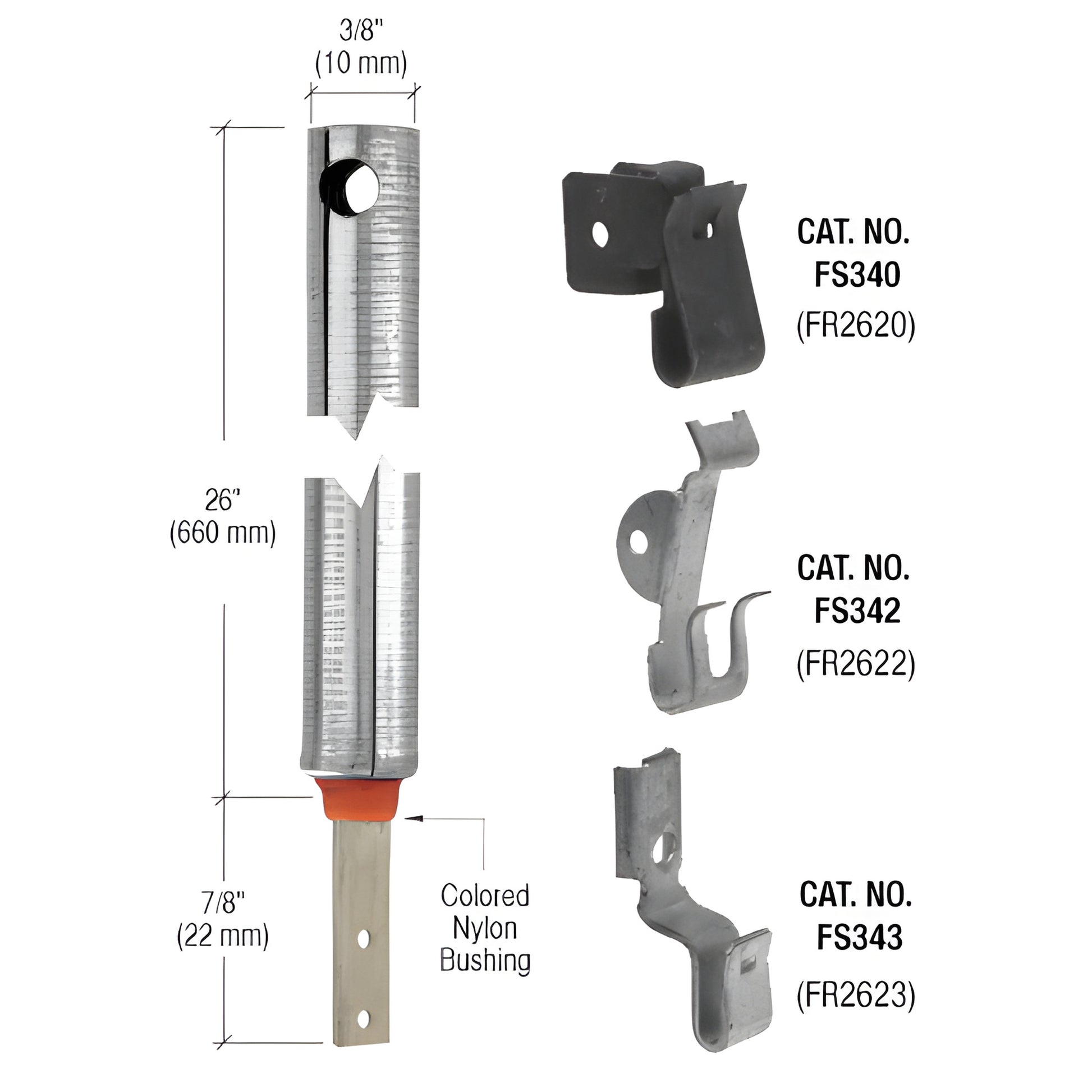

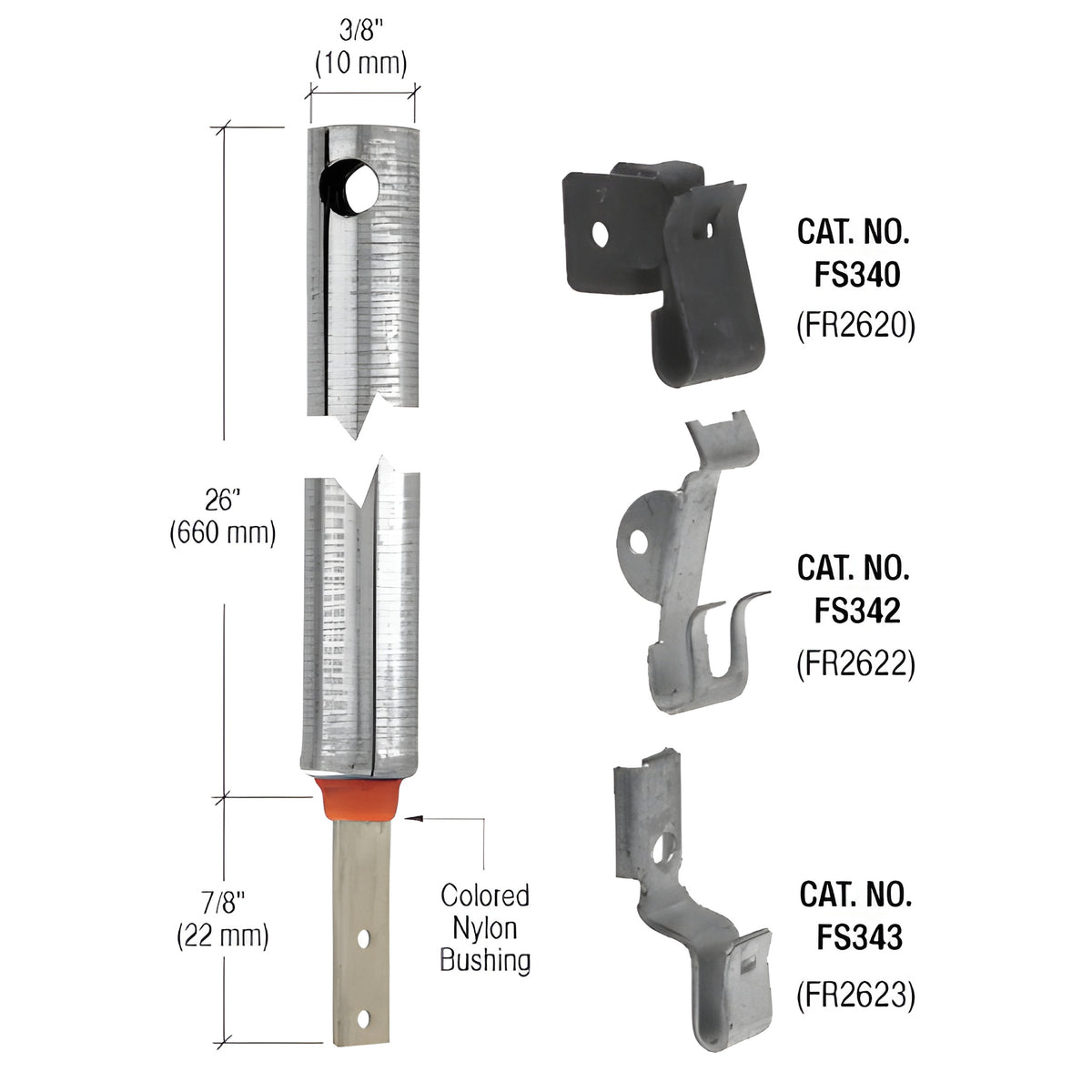

This standard duty CRL Tubular Spiral Window Balance (SKU: FR2623) is designed for non-tilt windows and replaces metal or plastic tube balances with a sash load capacity of up to 25 pounds. Its factory-installed FS343 end clip and industry-standard 3/8" (10 mm) tube make installation simple and reliable for residential and light-commercial window repairs.
How to order tubular spiral window balances with factory-installed clips:
1. Specify whether the old balance tube is metal or plastic.
2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only (do not include rod extension).
3. Check the color of the nylon bushing.
4. Verify the rod extension protruding from the nylon bushing.
5. Choose the required clip.
6. Match tube diameter, tube length, nylon bushing color and clip to the balance being replaced—if all match, this is the correct balance.
Product Warning:
NOTE: This FR Series balance is also available with end clips FS340 (Cat. No. FR2620) and FS342 (Cat. No. FR2622).
Order FR2623 with FS343 today to match your replacement spiral window balance quickly.
