CRL 156 in Metallic Silver Heavy-Duty Windscreen Post Replacement
CRL 156 in Metallic Silver Heavy-Duty Windscreen Post Replacement
Regular price
$866.49 CAD
Regular price
Sale price
$866.49 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# HD156S
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

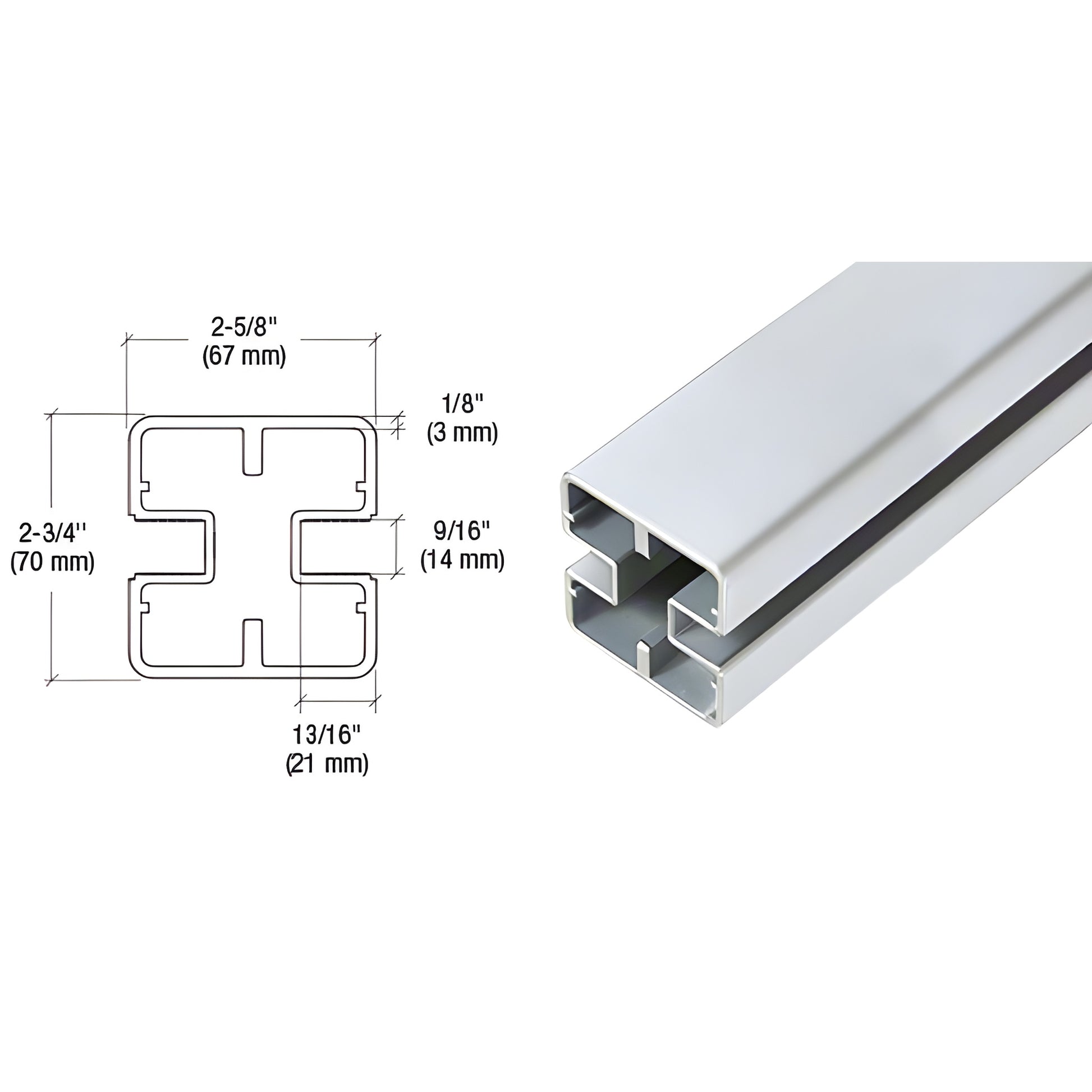

Description
Depth
13/16 in. (21 mm)
Finish/Color
Silver Metallic
Glazing Thickness - Dry Glaze
1/4 To 3/8 Inch
Glazing Thickness - Wet Glaze
1/2 Inch
Height
2-3/4 in. (70 mm)
Length
156 in. (3962 mm)
Material
Aluminum
Width
2-5/8 in. (67 mm)
Overview
- SKU: HD156S
- Available as Posts Only or in Kits Containing Post, Flat Top Cap, and Glazing Vinyl
- Use as heavy-duty glass railing posts for end applications or to join two panels at 180°
- Accommodates 1/4" to 3/8" (6 to 10 mm) glass when dry glazed with vinyl
- Accommodates 1/2" (12 mm) and 9/16" (13.52 mm) glass when wet glazed with structural silicone
- Kits include post, flat top cap, and glazing vinyl—ready for glass railing installation
- Seven standard powder coat colors plus mill aluminum; custom colors available on request
HD156S heavy-duty posts are designed for robust glass railing and barrier systems, supporting both dry-glazed (vinyl) and wet-glazed (structural silicone) glass panel installations. Available as individual posts or complete glass railing post kits, these posts simplify fabrication for end-of-barrier and 180° panel joints while offering a range of finish options including custom colors on request.
Installation limits: Maximum post spacing 72" (1.83 m) on center. Maximum panel area should not exceed 24 square feet.
Product Warning:
All ARS/AWS products are painted to order and are non-refundable and non-returnable.
For pricing, lead times, or to order HD156S heavy-duty glass railing posts or kits, contact CRL Customer Service or request a quote today.
Specifications
CAD Drawings - pdf
