Product Details
- Easy-to-Install
- Stamped Number 5
- Cables are Independently Adjustable

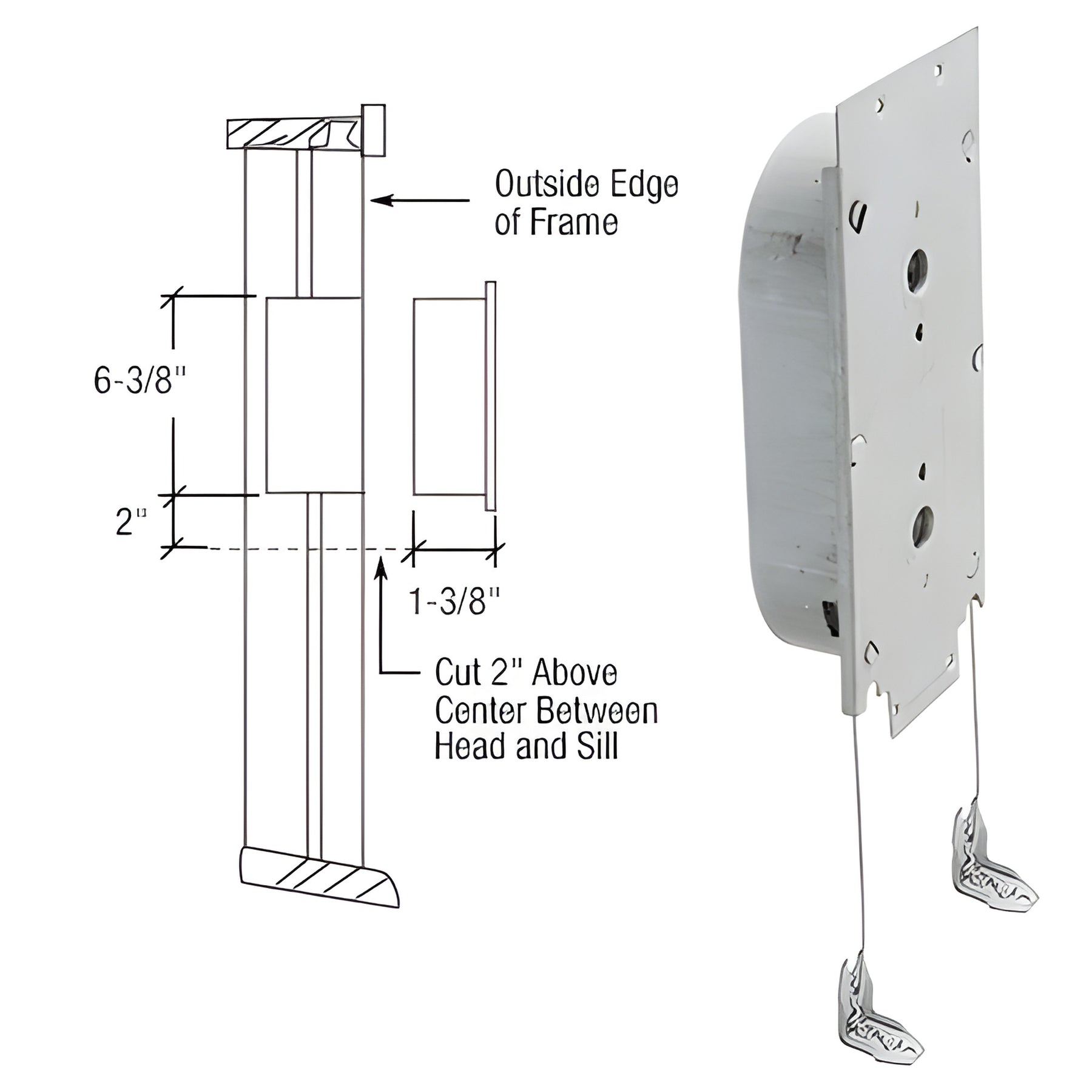

This is a great way to replace broken sash balances on wood windows. Simply make a cutout into your frame, position the CRL Adjustable Sash Balance, connect the glides, adjust the tension and the job is done. Our sash balances have all steel construction with aircraft cable lifters. One balance per package.
NOTE: Before ordering make sure you have the correct weight of the sash. Order a balance that has ample capacity for your sash, and never use a balance on sash heavier than listed on the Table of Capacities.
TABLE OF CAPACITIES
Single Installation (One Side Only)
Weight of SashMax. Width of SashMax. Height Each SashQTY. and Size Required4-8 lbs. (1.8-3.6 kg) 36" (914 mm)40" (1.02 m)1 Each H3867 Balance8-12 lbs. (3.6-5.4 kg)36" (914 mm)40" (1.02 m)1 Each H3868 Balance12-18 lbs. (5.4-8.2 kg)36" (914 mm)40" (1.02 m)1 Each H3869 Balance18-24 lbs. (8.2-10.9 kg)36" (914 mm)40" (1.02 m)1 Each H3870 Balance
Double Installation (Both Sides)
Weight of SashMax. Width of SashMax. Height Each SashQTY. and Size Required8-16 lbs. (3.6-7.3 kg) No Limit40" (1.02 m)2 Each H3867 Balance16-24 lbs. (7.3-10.9 kg)No Limit40" (1.02 m)2 Each H3868 Balance24-36 lbs. (10.9-16.3 kg)No Limit40" (1.02 m)2 Each H3869 Balance36-48 lbs. (16.3-21.8 kg)No Limit40" (1.20 m)2 Each H3870 Balance
