CRL 22 in Tubular Spiral Tilt Window Balance Replacement Blue Bushing

• Blue bushing indicates sash load weights up to 22 pounds (9.5 kg)
• Tilt window balance — industry standard 9/16" (14 mm) tube diameter
• Direct replacement for metal or plastic tube balances

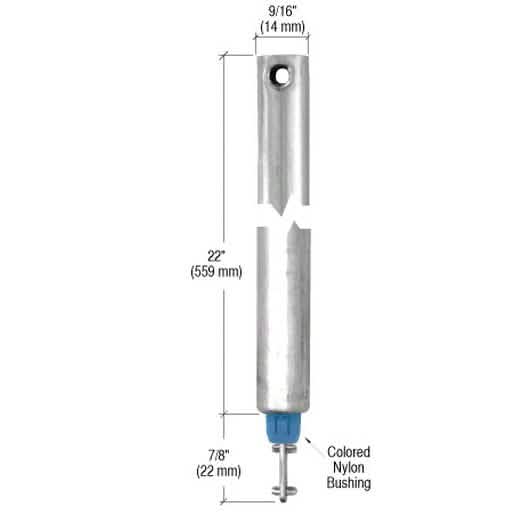

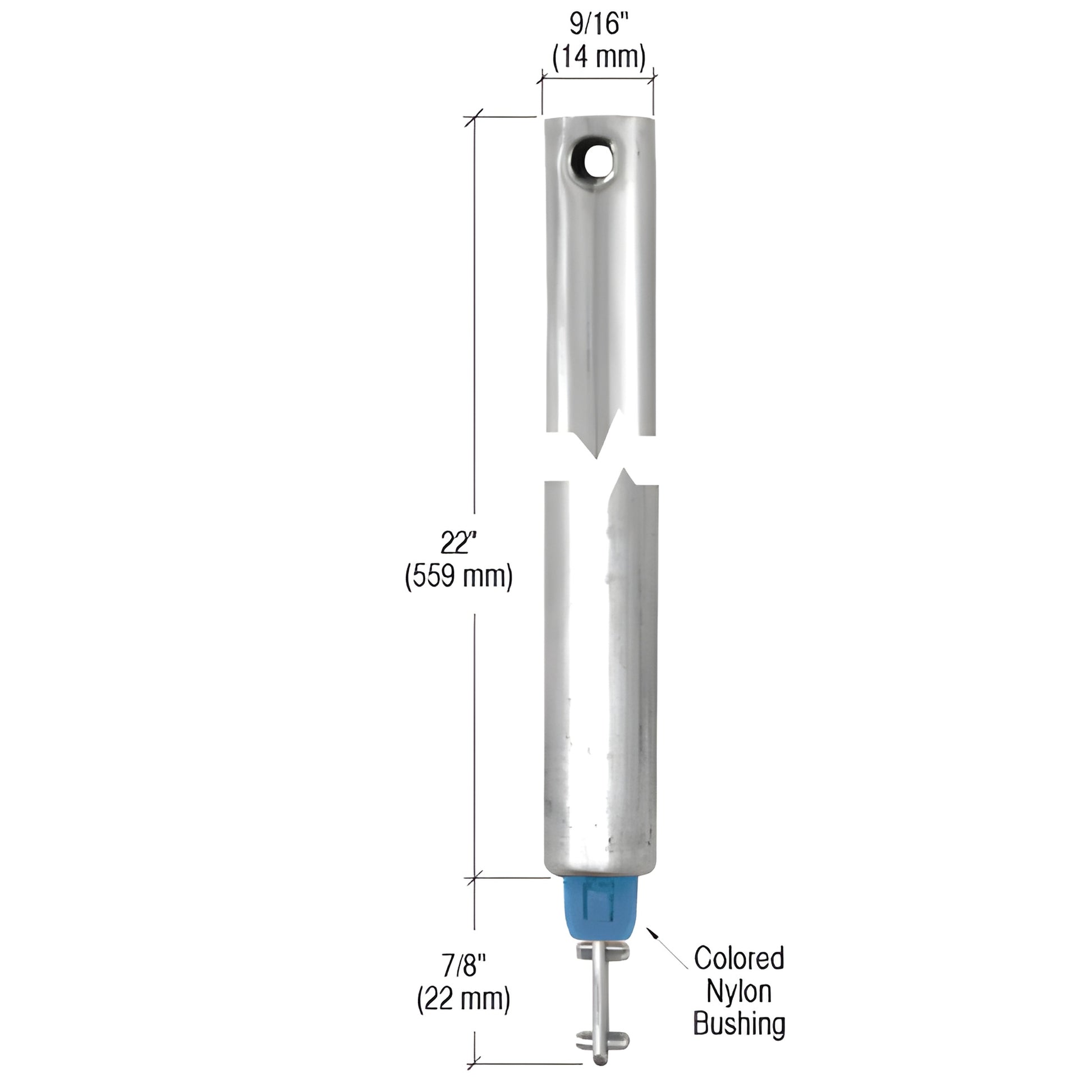

This CRL Tubular Spiral Window Balance (SKU: FH2230) is designed for tilt-type windows and replaces 9/16" (14 mm) metal or plastic tube balances with a sash load capacity up to 22 pounds (9.5 kg). Packaged and sold individually; we recommend replacing both window balances at the same time for balanced performance and longer life.

How to order tubular spiral window balances:
1. Check the tube diameter on the old balance (must be 9/16" / 14 mm).
2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension.
3. Confirm the color of the nylon bushing (blue for this model).
4. Verify the rod extension length protruding from the nylon bushing matches your existing balance.
5. Match tube diameter, tube length, and bushing color with the data shown next to the catalog number; if all match and the rod extension matches the photo, this is the correct replacement balance.

Order FH2230 now for an exact-fit tilt window balance replacement.
