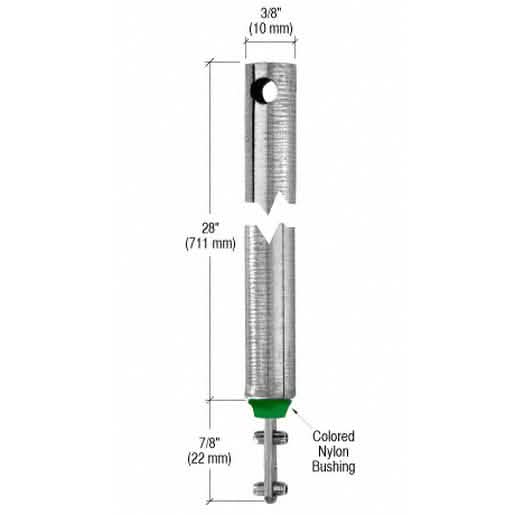

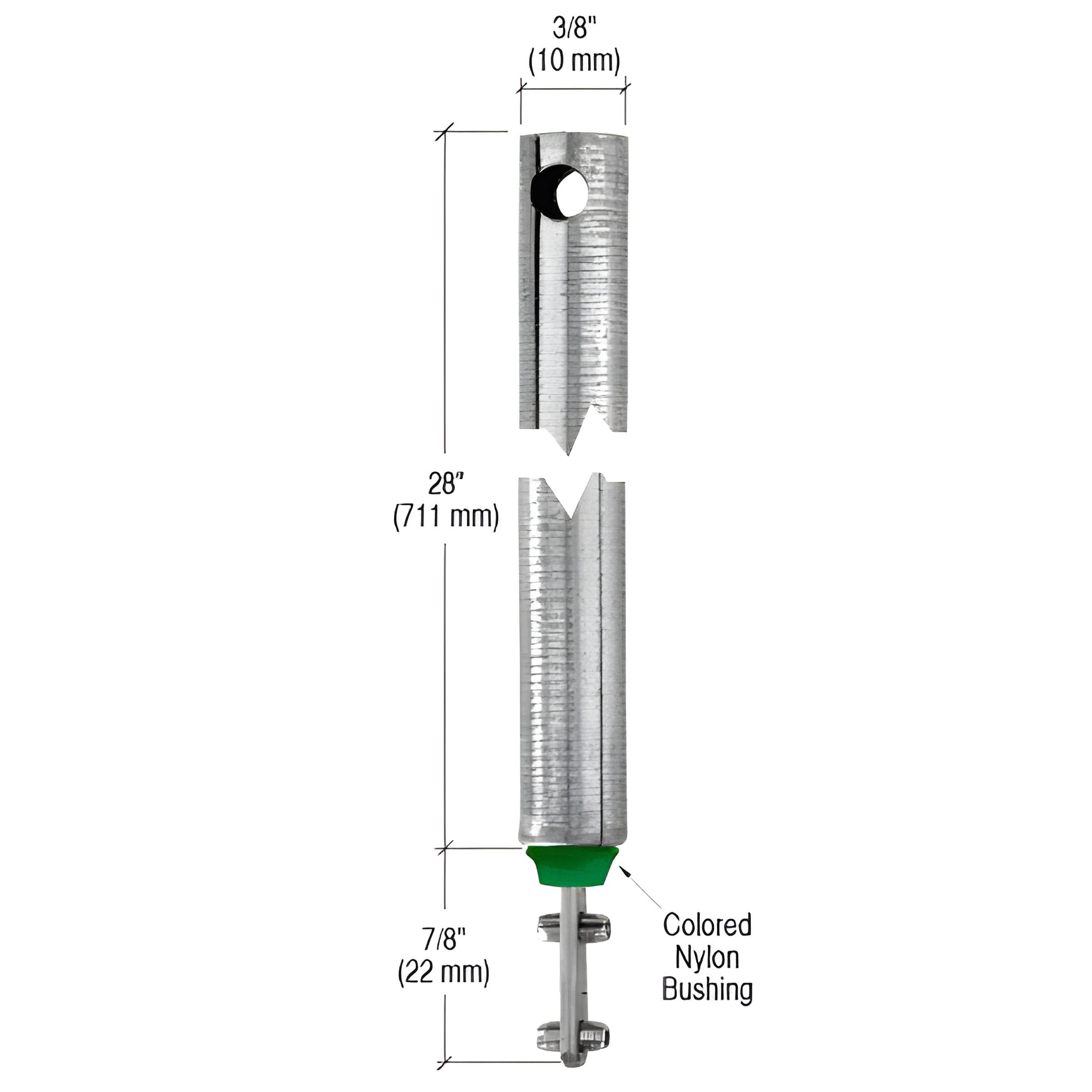

CRL 28" Spiral Tilt Window Balance Replacement with Green Bushing

• Red bushing indicates sash load up to 25 pounds (11.3 kg)
• Tilt window tubular spiral balance — industry standard 3/8" tube diameter
• Direct replacement for metal or plastic tube balances and like-size spiral balances with a white bushing

This CRL Tubular Spiral Window Balance (SKU: FL2840) is for tilt-type windows and replaces metal or plastic tube balances with a sash load capacity up to 25 pounds (11.3 kg). Sold individually; we recommend replacing both balances in the window at the same time for consistent performance.

How to order tubular spiral window balances

• 1. Check the tube diameter of the old metal or plastic tube (3/8" tube diameter is standard)
• 2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension
• 3. Confirm the color of the nylon bushing (red indicates up to 25 lb sash)
• 4. Verify the rod extension protruding from the nylon bushing matches your existing balance
• 5. Match tube diameter, tube length, and bushing color against the information shown next to the catalog number; if all match and the rod extension matches the photo, this is the correct replacement balance

Need help confirming fit? Contact CRL Customer Service or add SKU FL2840 to your cart to order the correct tubular spiral window balance today.
