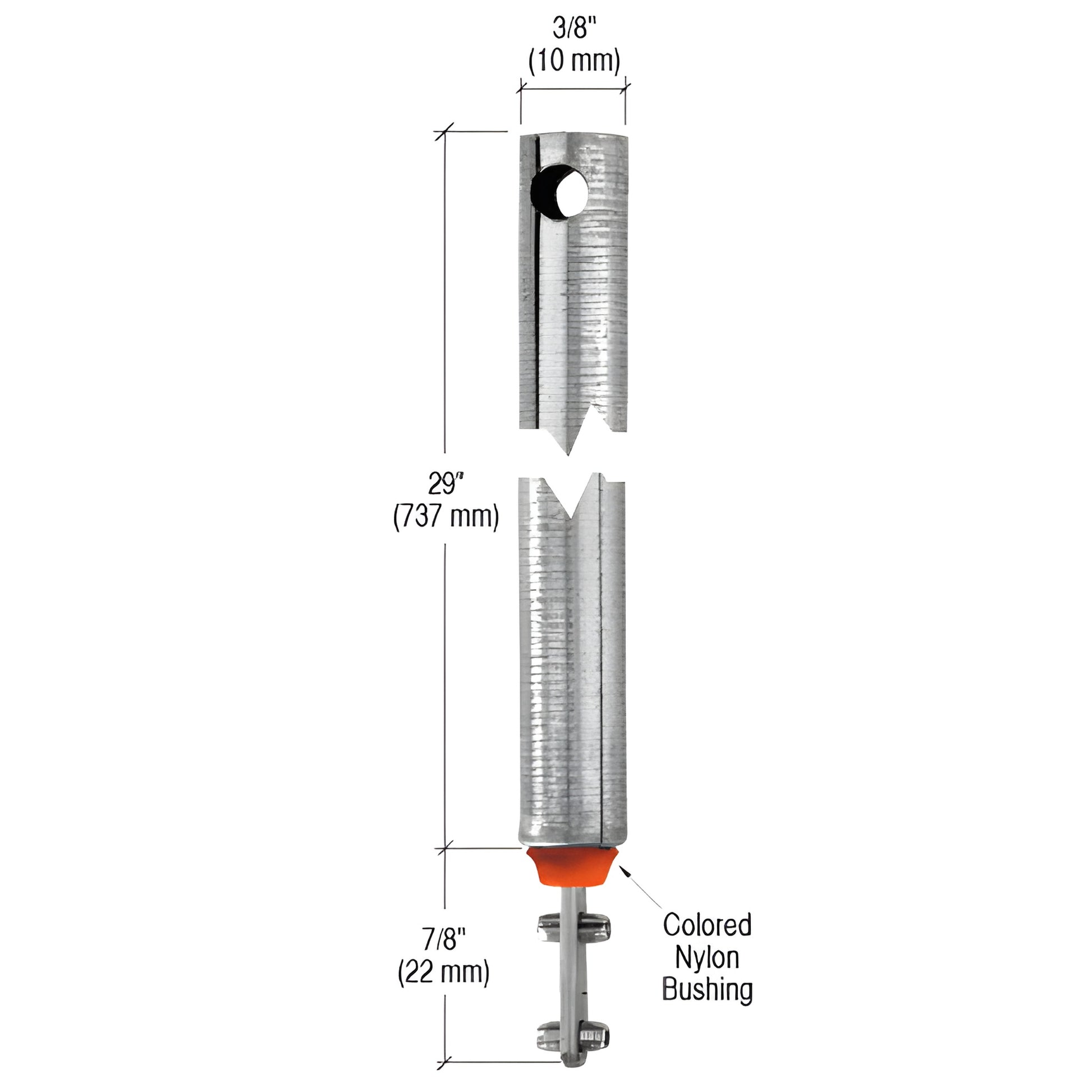

CRL 29 in Spiral Tilt Window Balance Replacement with Red Bushing

• Red bushing indicates sash load up to 25 pounds (11.3 kg)
• Tilt window tubular spiral balance — industry standard 3/8" (10 mm) tube diameter
• Direct replacement for metal or plastic tube balances

This CRL Tubular Spiral Window Balance (SKU: FL2920) is designed for tilt-type windows and replaces metal or plastic tube balances. It supports sash weights up to 25 pounds (11.3 kg) and replaces same-size spiral balances with a white or red bushing. Balances are sold individually; we recommend replacing both window balances at the same time for consistent performance.


How to Order Tubular Spiral Window Balances

1. Check the tube diameter of the existing metal or plastic tube (3/8" / 10 mm is standard).
2. Measure the tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension.
3. Note the color of the nylon bushing (color indicates sash load rating).
4. Verify the rod extension protruding from the nylon bushing matches your old balance.
5. Match tube diameter, tube length, and bushing color to the information shown next to the catalog number. If all match and the rod extension looks the same, this is the correct balance.

Differentiators: Tile-ready replacement for tilt windows, industry-standard 3/8" tube diameter, clear color-coded bushing for quick sash weight identification, compatible with both metal and plastic tube balances.

Order the FL2920 tubular spiral window balance now to restore smooth tilt-window operation.
