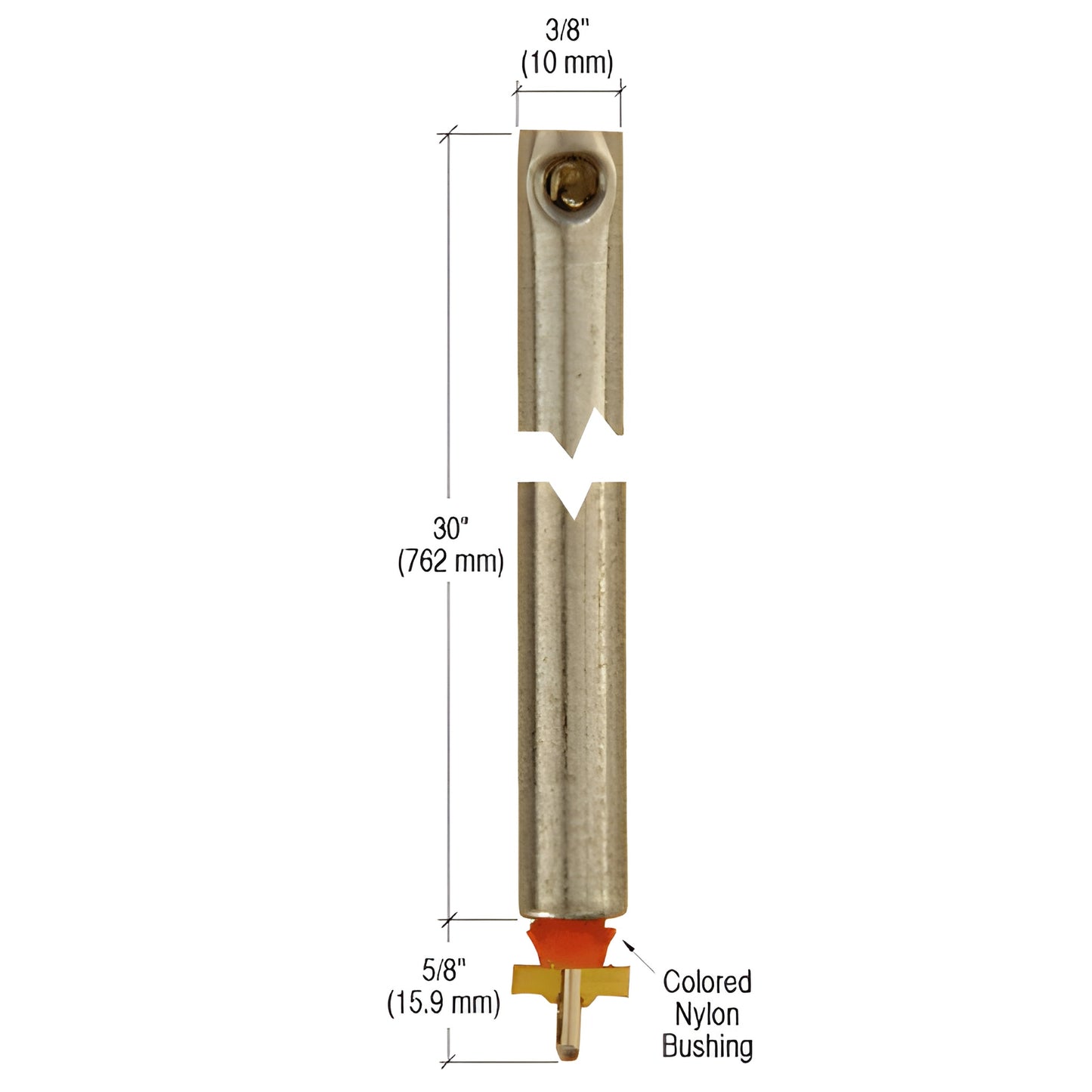

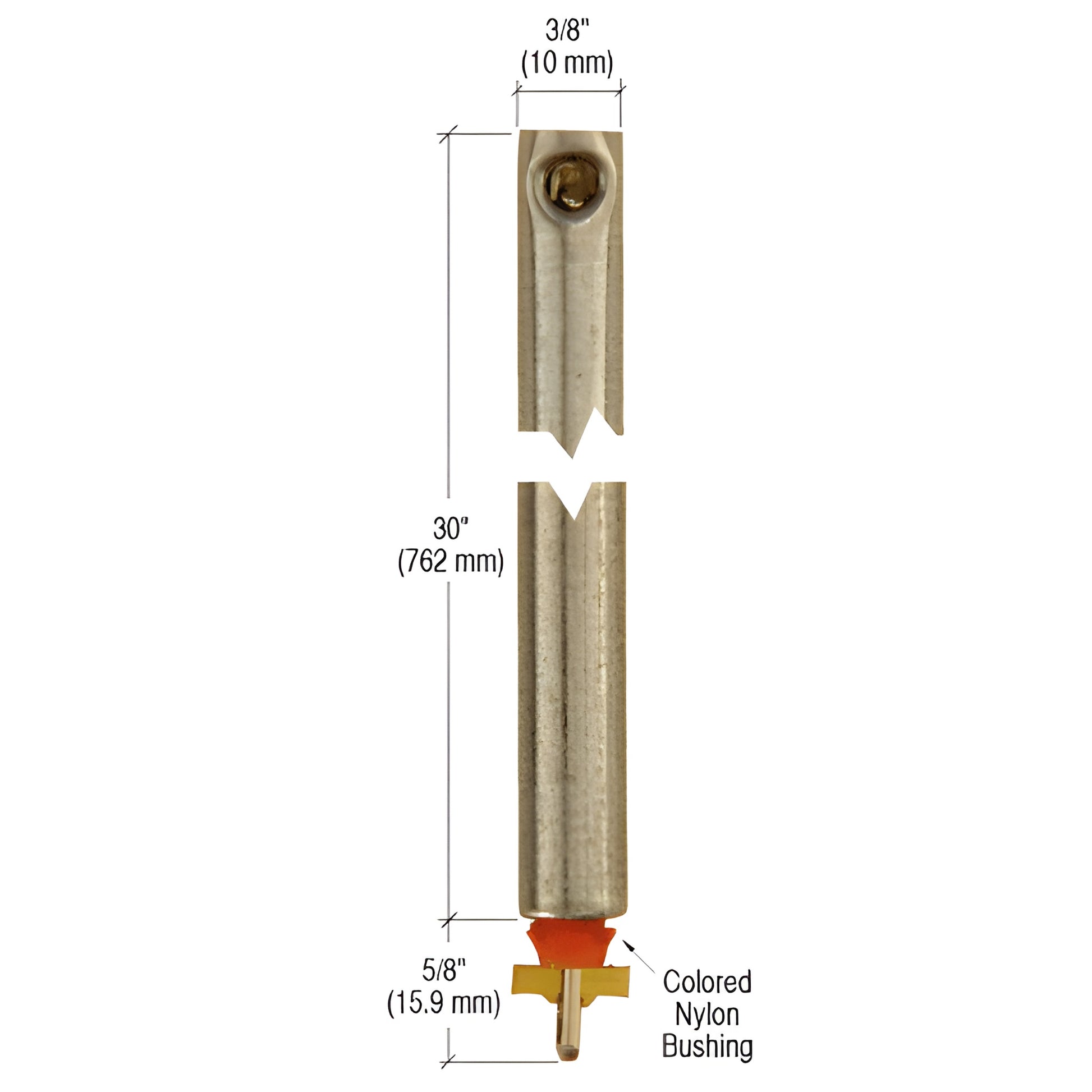

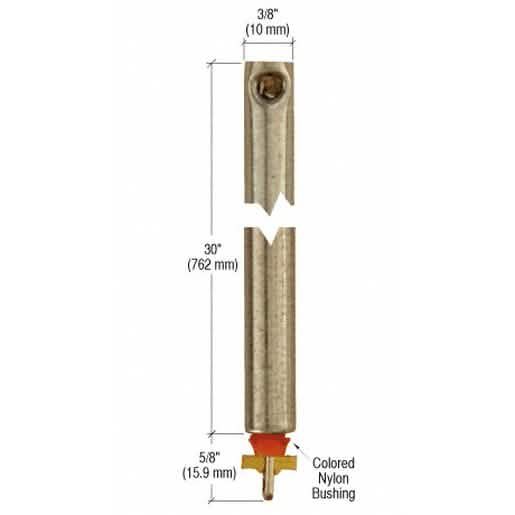

CRL 30 in Tubular Spiral Non-Tilt Window Balance Red End Bushing
CRL 30 in Tubular Spiral Non-Tilt Window Balance Red End Bushing
Regular price
$15.86 CAD
Regular price
Sale price
$15.86 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# FM3020
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 8.0 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Bushing Color
Red
Guides Attached
No
Heaviest Vent Weight Range
25
Series
FM Series Balances
Tube Diameter
3/8
Tube Length
30
Window Type
Non-Tilt
Overview
- For sash load weights up to 25 pounds
- Industry-standard 3/8" (10 mm) tube diameter
- Direct replacement for metal or plastic tube balances
This standard-duty CRL Tubular Spiral Non-Tilt Window Balance (SKU: FM3020) replaces metal or plastic tubular balances and spiral balances with a white bushing. Designed for window sash balance applications up to 25 lbs, this 3/8" tubular spiral balance is a reliable choice for residential and light-commercial double-hung windows. We recommend replacing both balances in a window at the same time for optimal performance.
How to order tubular spiral window balances
- Check the diameter of the old metal or plastic tube: 9/16" = Series "FJ"; 3/8" = Series "FM" or "FR" (depends on the rod fitting).
- Measure tube length only — do not include rod length.
- Identify the nylon bushing color: white or red = standard duty; blue = heavy duty.
- Verify the fitting on the rod protruding from the nylon bushing. If diameter is 3/8", select the appropriate series ("FM" or "FR").
- Order the required quantity by catalog number (SKU FM3020 for this standard-duty unit).
Differentiators: industry-standard 3/8" tube, easy metal/plastic replacement, compatible with white-bushed spiral balances, recommended paired replacement for balanced operation.
Need help confirming fit? Contact us or add SKU FM3020 to your cart to order now.
