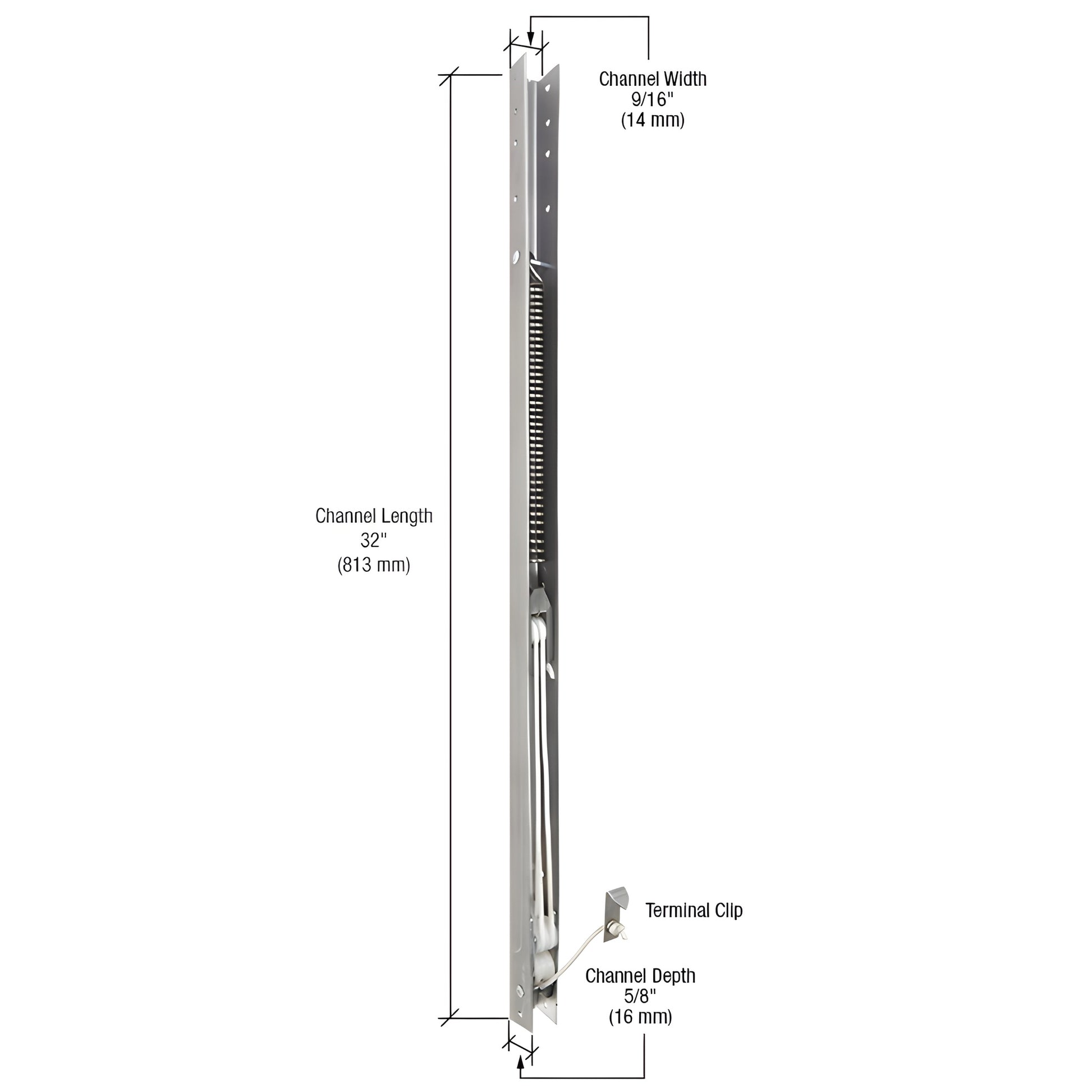

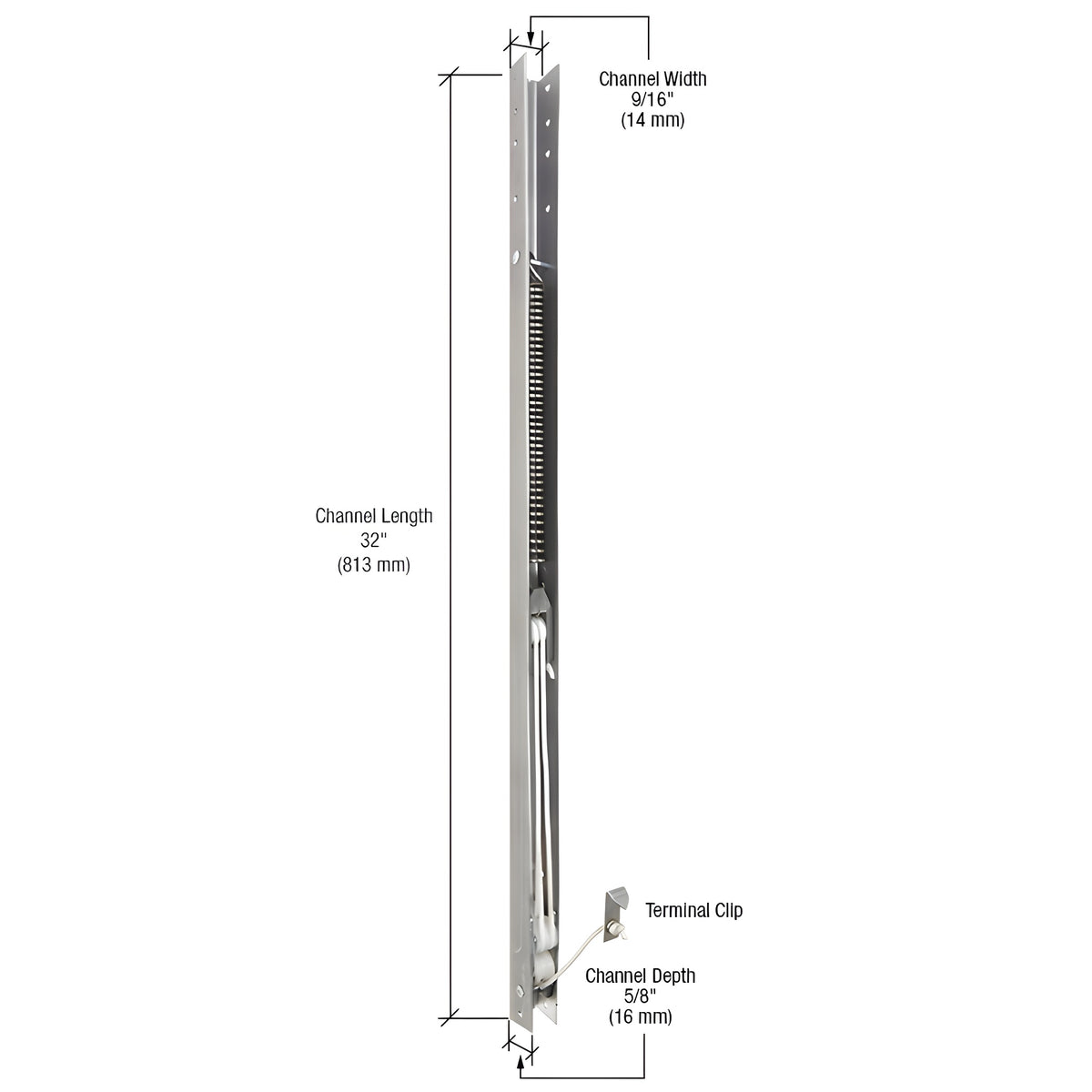

CRL 32" Window Channel Balance - 3130 or 31-3

The CRL FA Series 3/30 Weight Range Sash Balances are expertly designed for optimal window performance, featuring a 5/8" (16 mm) depth, yet commonly referred to as 1/2" (13 mm) in trade terms.
Available in lengths from 13" to 43" (330 mm to 1.09 m) and weight ranges of 10, 20, 30, 40, and 50, these balances require specific nylon guides for top and bottom channel mounting, which can be secured using the H3740 Rivet Set Tool (sold separately).
To ensure proper ordering, remove the existing channel balance, measure the metal channel's length in full-inch increments, and refer to the stamped or laser-etched numbers on the balance's back.
Special weight range options are available upon request, and it's important to note that the first two numbers of the CRL Catalog Number do not indicate channel length.
For accurate shipping costs, contact CRL Customer Service prior to order submission.
