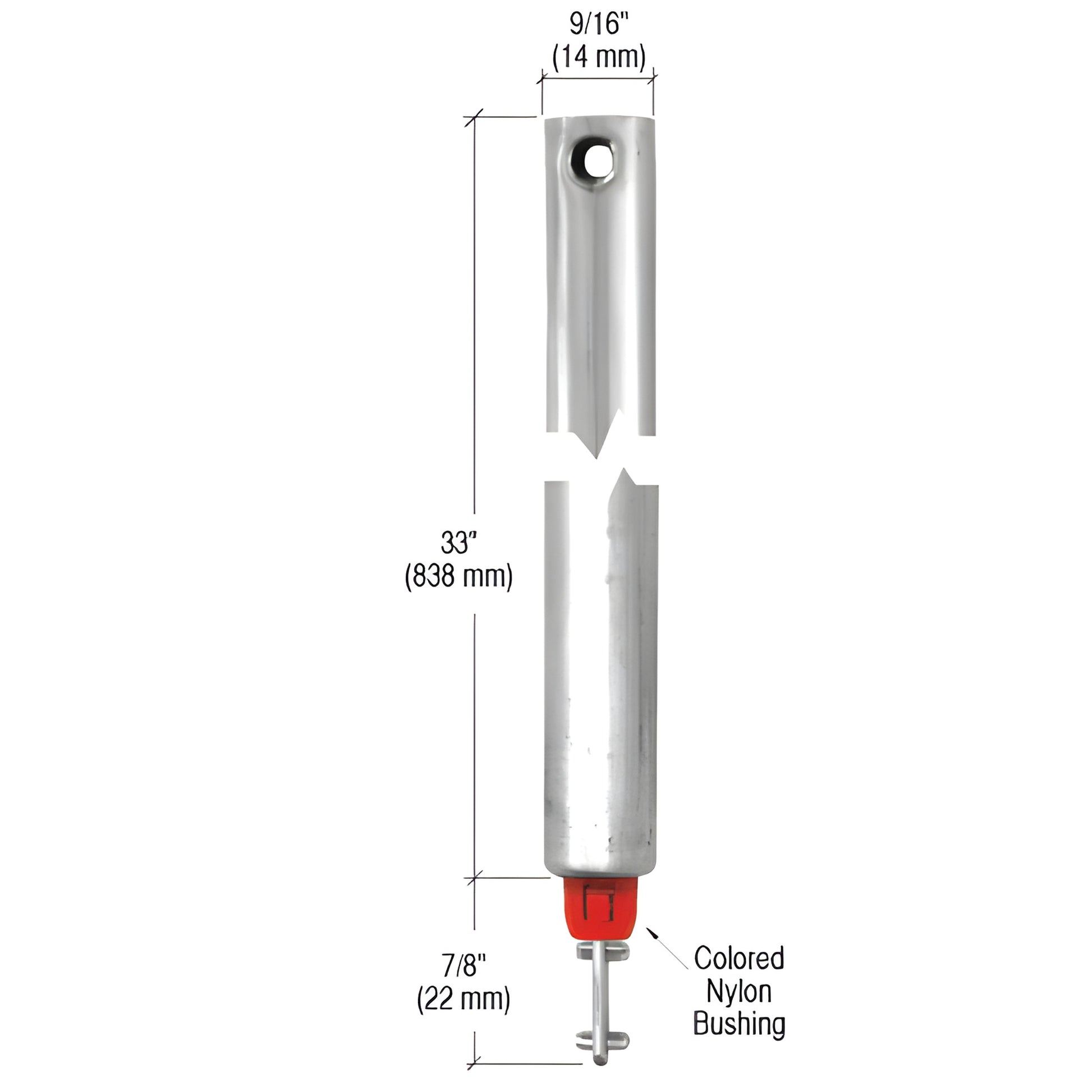

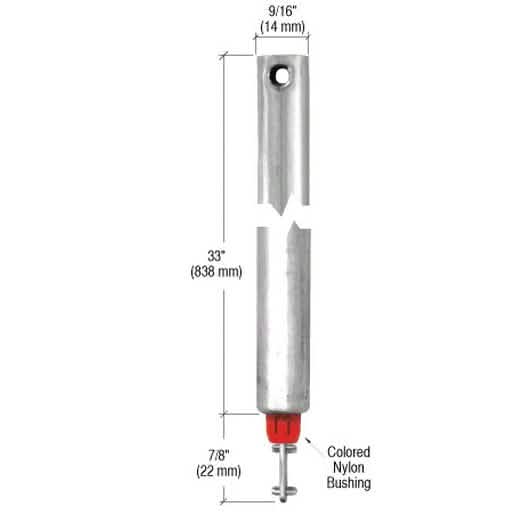

CRL 33-inch Tubular Spiral Tilt Window Balance Red Bushing

• Red bushing indicates sash load up to 25 pounds (11.3 kg)
• Tilt window tubular spiral balance with industry standard 9/16" (14 mm) tube diameter
• Direct replacement for metal or plastic tube balances

These CRL Tubular Spiral Window Balances (SKU: FH3320) are designed for tilt-type windows and replace existing metal or plastic tube balances. Each balance supports a sash weight up to 25 pounds (11.3 kg) and matches the same size spiral balance with a white or red nylon bushing. Sold individually; we recommend replacing both balances in a window at the same time for smooth, balanced operation.

How to order the correct tubular spiral window balance:

• 1. Confirm the tube diameter of the old metal or plastic tube (9/16" / 14 mm for this model).
• 2. Measure tube length from the end of the balance to the bottom of the colored nylon bushing only — do not include the rod extension.
• 3. Note the color of the nylon bushing (red indicates up to 25 lb sash weight).
• 4. Verify the rod extension protruding from the nylon bushing matches the existing balance.
• 5. Match tube diameter, tube length, and bushing color with the catalog information and product photo; if all agree, FH3320 is the correct replacement.

Need help selecting the right balance? Contact CRL Customer Service or add FH3320 to your cart to order now.
