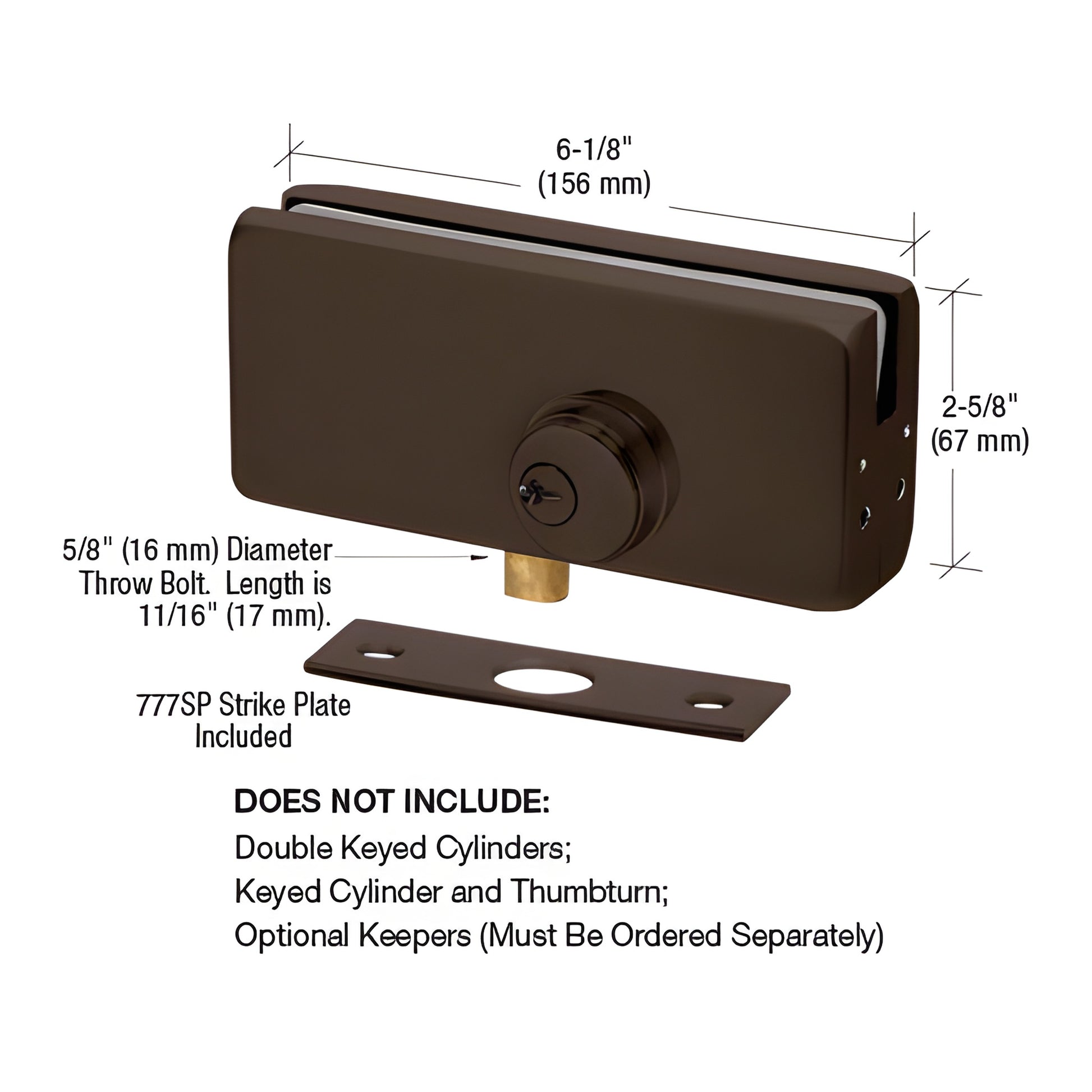

CRL AMR215 Black Bronze Patch Lock for Frameless Glass Doors

• High-density cast body with secure lock mechanism
• Gaskets compatible with 3/8" or 1/2" (10 or 12 mm) glass
• Available in five architectural finishes

The American Style Patch Lock (SKU: AMR215DU) is a heavy-duty, taller-profile version of the AMR205 designed for increased security by capturing more glass inside the lock housing. Intended for top and bottom corner installations, this patch lock accepts either double-keyed cylinders or a keyed cylinder with thumbturn (cylinders ordered separately). A keeper is supplied; optional keepers are available to fit most installations.


GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) diameter hole and one corner notch required in glass

COMES WITH: Template and installation instructions

DOES NOT INCLUDE:
Double-keyed cylinders; keyed cylinder/thumbturn; optional keepers (must be ordered separately)

DOUBLE DOOR APPLICATION:
For double-door installations, a bottom patch lock is required on the inactive leaf to properly secure the door pair.


Product Warning:

Cylinders are optional and not included with the lock body.

Looking for a heavy-duty patch lock for glass doors in multiple finishes? Contact us or add SKU AMR215DU to your cart to get started.
