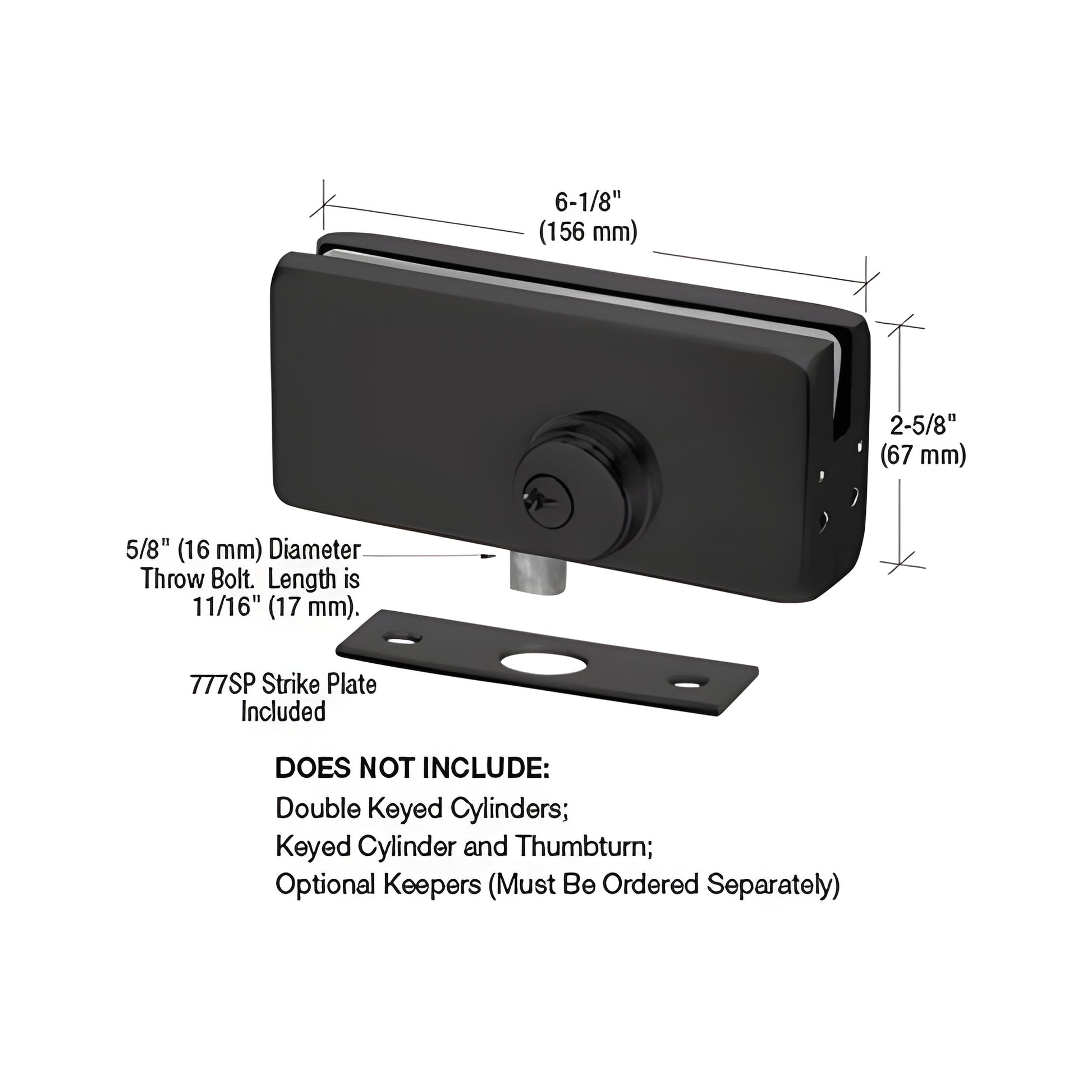

• AMR215MBL matte black American-style patch lock for frameless glass doors, 6-1/8" 2-9/16", strike plate included.
1 1

CRL

CRL AMR215 Matte Black Glass Door Patch Lock

CRL AMR215 Matte Black Glass Door Patch Lock

$157.04 CAD
$157.04 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# AMR215MBL
Shipping Weight: 1.799 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Matte Black
Glazing Thickness
3/8 in.,1/2 in. (10 mm,12 mm)
Height
2-9/16 in. (65 mm)
Width
6-1/8 in. (156 mm)

Overview

  • High-density cast body with integrated lock mechanism — durable glass door patch lock
  • Gaskets for use with 3/8" or 1/2" (10 or 12 mm) glass — fits common frameless glass doors
  • Available in five architectural finishes for commercial and residential applications

The American Style Patch Lock (SKU: AMR215MBL) is a heavy-duty evolution of the AMR205, designed for added security with a taller profile that secures more glass inside the lock housing. Intended for top and bottom corner applications on frameless glass doors, this patch lock accepts either double-keyed cylinders or a keyed cylinder with thumbturn (cylinders ordered separately). A keeper is supplied; optional keepers are available to accommodate most installations.



GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) diameter hole and one corner notch

COMES WITH: Template and instructions

DOES NOT INCLUDE: Double-keyed cylinders; keyed cylinder/thumbturn; optional keepers (must be ordered separately)

DOUBLE DOOR APPLICATION:
For double door installations, a bottom patch lock is required on the inactive leaf to properly secure the door pair.


Product Warning

Cylinders are optional and not included with the lock body.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on your monitor settings.
