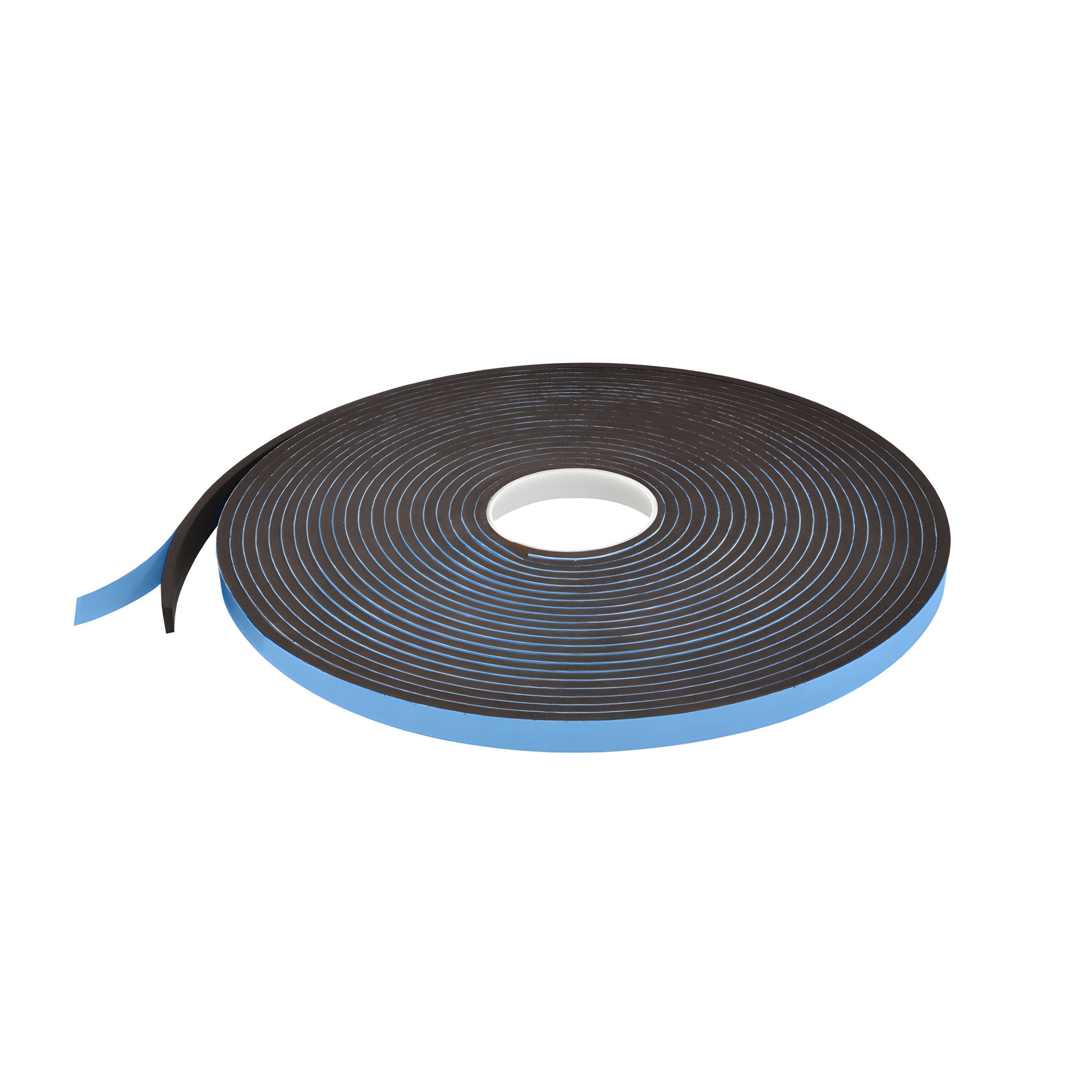

CRL Black 1/4" x 1/2" Single Sided Foam Glazing Tape

• Excellent adhesion to wood, vinyl (rigid PVC), aluminum, and glass
• Superior resistance to weathering, oxidation, and UV exposure
• Meets AAMA 810.1 certification
• Aggressive acrylic adhesive for curved or irregular surfaces
• Service temperature range: –40°F to 180°F (–40°C to 82°C)
• Available colors: Gray and Black

CRL Foam Glazing Tape (SKU: 74814X12BL) is a closed-cell polyethylene foam sealant in tape form designed for exterior and interior glazing applications. The aggressive acrylic adhesive positions the foam with minimal pressure and adheres to wood, vinyl, aluminum, and glass. Use as a primary or secondary seal where glass repositioning, demountable partitions, louvers, formwork, access panels, doors, or temporary joints are required.

Constructed with a patented cellular-structured foam, this self-shimming tape resists water absorption and long-term weathering while providing a durable, long-lived seal. The non-adhesive face releases cleanly from most surfaces, and the tape recovers most of its original thickness after joint opening—ideal for operable or temporary glazing systems.

Key benefits and long-tail features:

• Self-shimming foam glazing tape—no shims or spacers required for consistent glazing alignment
• Preformed tape for accurate, repeatable installation in window and storefront applications
• Remains flexible at low temperatures and dimensionally stable at high temperatures
• Non-yellowing, non-staining water-white adhesives for a clean finished appearance
• Seals effectively against water, dust, and light—suitable for exterior window and door glazing systems
• Compatible with other sealing and glazing compounds
• Available in a variety of sizes for custom glazing and fenestration needs

A minimum of 30% compression is recommended to provide an effective moisture seal; for small lites this can be achieved by applying pressure when installing glazing stops. However, the product warning references that CRL vinyl foam glazing tape must be compressed 15% to maintain an effective seal—follow specific product instructions and application recommendations for your substrate and lite size. Apply with firm, uniform pressure to a clean, dry surface without stretching (the paper liner indicates if the tape has been stretched). Cut and butt tape corners—do not overlap—and apply a thin bead of an approved sealant at intersections after removing
